Octal Bus Transceivers with 3-State Outputs, 7SZ245XTS20GTR Replace 74AHCT245.
SGM7SZ245
SGM7SZ245.pdf
SGM7SZ245.pdfFEATURES
? Wide Operating Voltage Range: 1.8V to 5.0V
? High-Current 3-State Outputs Drive Bus Lines
Directly or Up to 15 LSTTL Loads
? Low Power Consumption, ICC: 0.1μA (TYP)
? Typical tPD = 12ns
? ±20mA Output Drive at 5V
? Low Input Current: ±0.1nA (TYP)
? Available in Green TSSOP-20, TQFN-5.5×3.5-24L
and TQFN-3×3-20L Packages

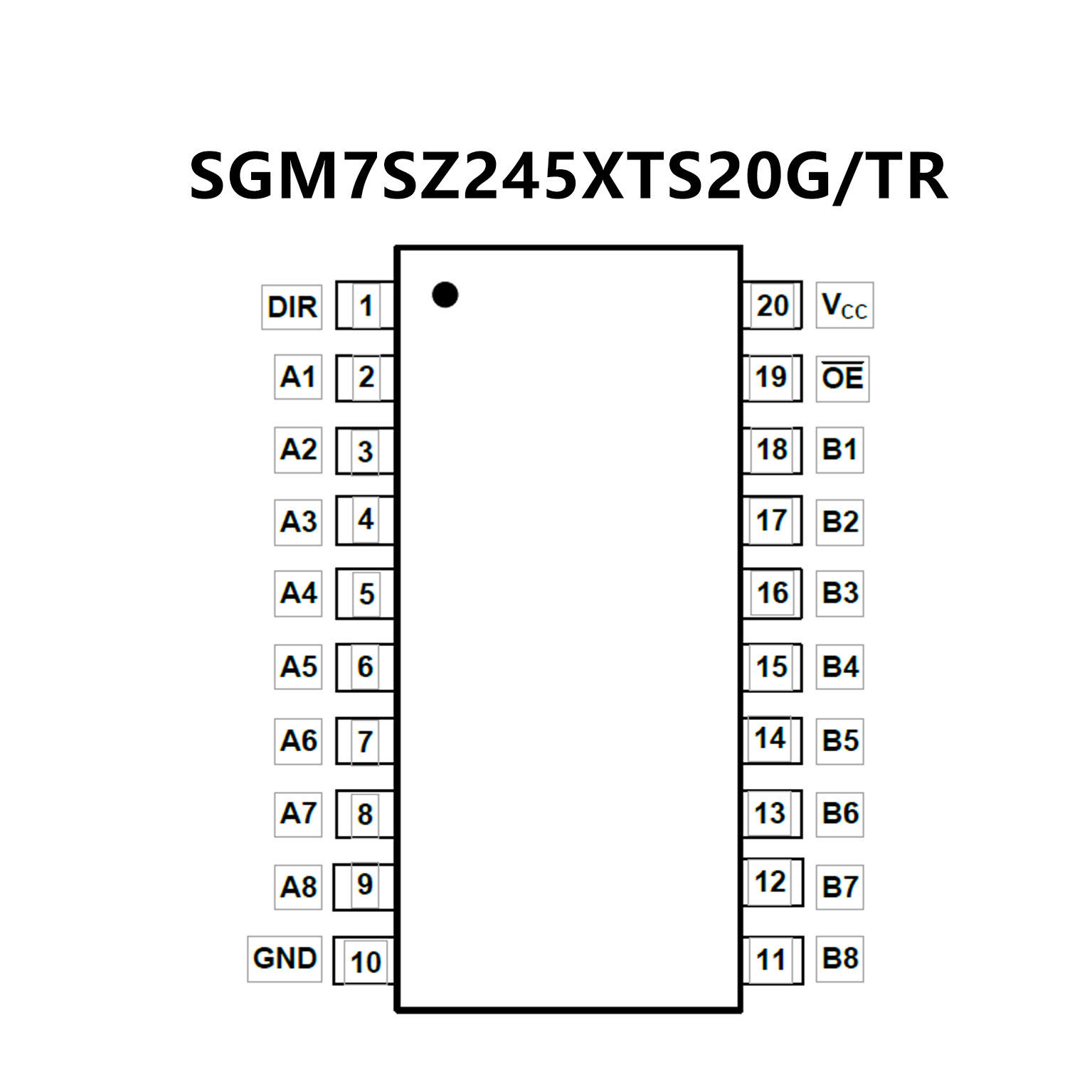

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Balanced propagation delays
? All inputs have Schmitt-trigger actions
? Inputs accept voltages higher than VCC
? Input levels:
For 74AHC245: CMOS level
For 74AHCT245: TTL level
? ESD protection:
HBM EIA/JESD22-A114E exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
CDM EIA/JESD22-C101C exceeds 1000 V
? Multiple package options
? Specified from ?40 °C to +85 °C and from ?40 °C to +125 °C

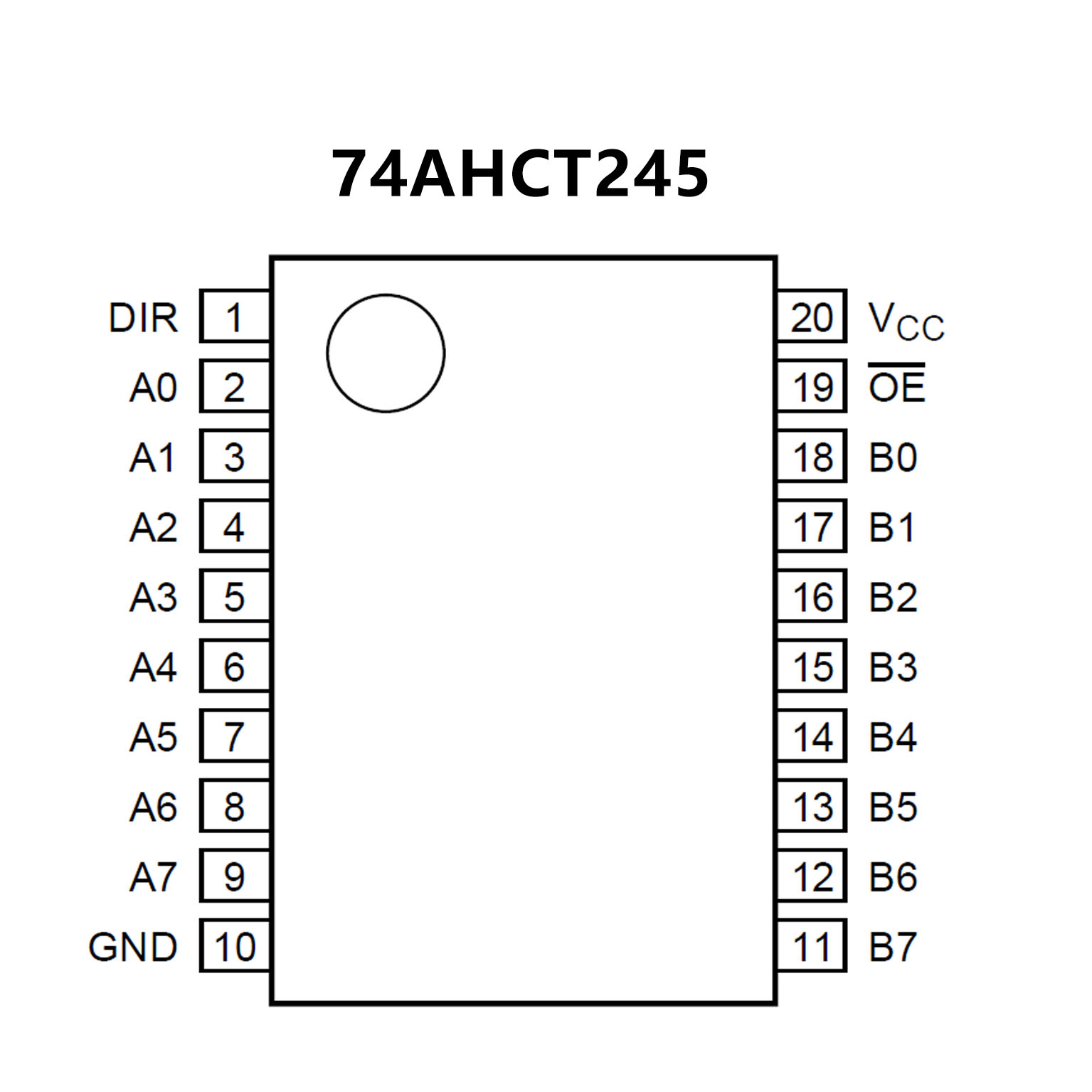

PIN CONFIGUTION
