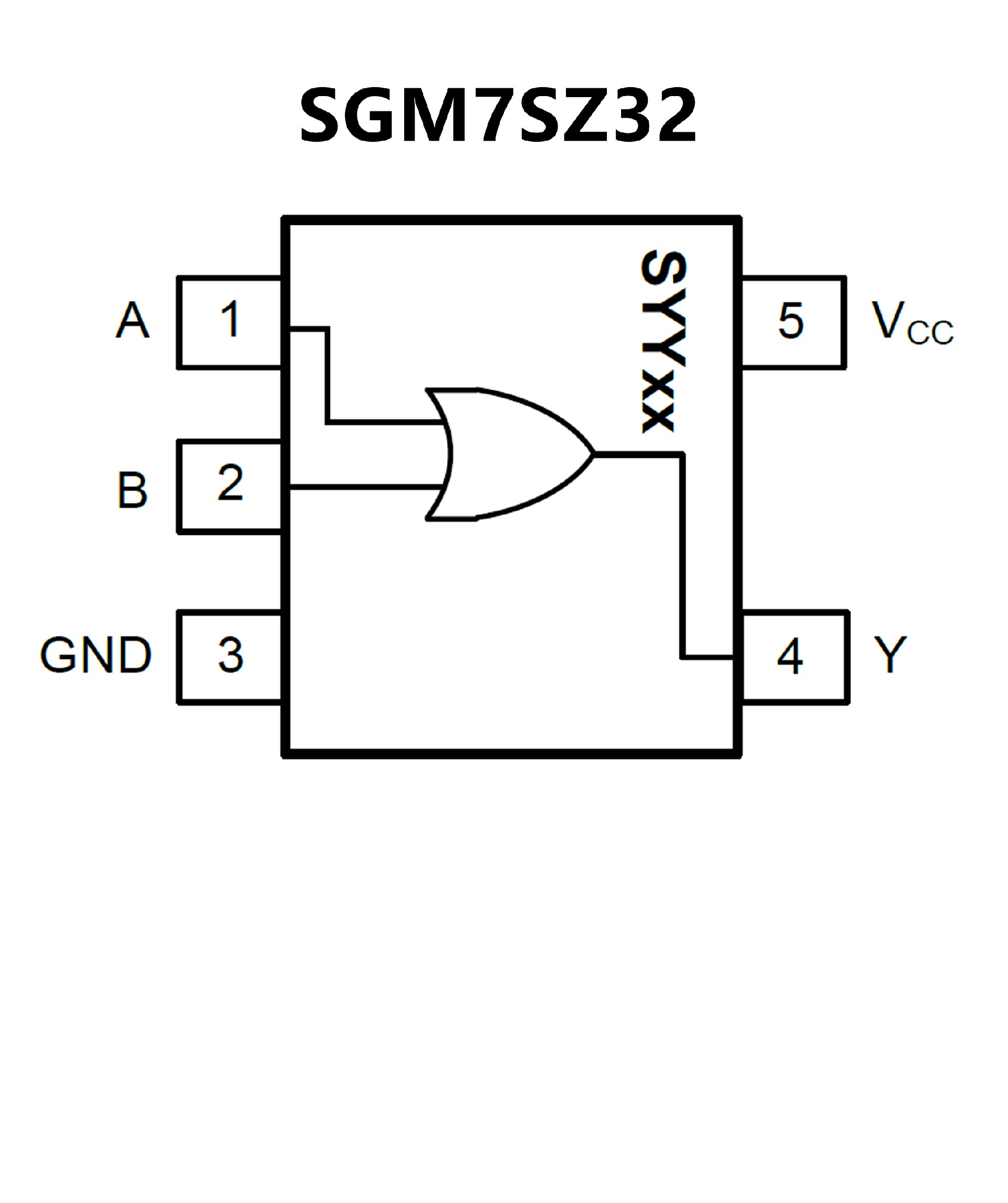

SGM7SZ32.pdf? Ultra-High Speed: tPD = 3.8ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerant Inputs Facilitate 5V to 3V
Translation
? Available in Green SOT-23-5 and SC70-5 Packages
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
? Available in Texas Instruments
NanoStar? and NanoFree? Packages
? Supports 5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Max tpd of 5.3 ns at 3.3 V
? Low Power Consumption,
10-μA Maximum ICC
? ±24-mA Output Drive at 3.3 V
? Ioff Supports Partial-Power-Down
Mode Operation
