Low-Power, SOT μP Reset Circuit with Capacitor-Adjustable Reset Timeout Delay, Replace MC33464
SGM804
SGM804.pdf
SGM804.pdfFEATURES
? Monitor System Voltages from 1.6V to 5V
? Capacitor-Adjustable Reset Timeout Period
? Low Quiescent Current (3.3μA TYP)
? Push-Pull RESET Output
? Guaranteed RESET Valid to VCC = 1V
? Immune to Short VCC Transients
? Available in Green SOT-23-5 Package
? SGM804 Pin Compatible with NCP300–NCP303,
MC33464/MC33465,S807/S808/S809, RN5VD ,
MAX6424 and MAX6425

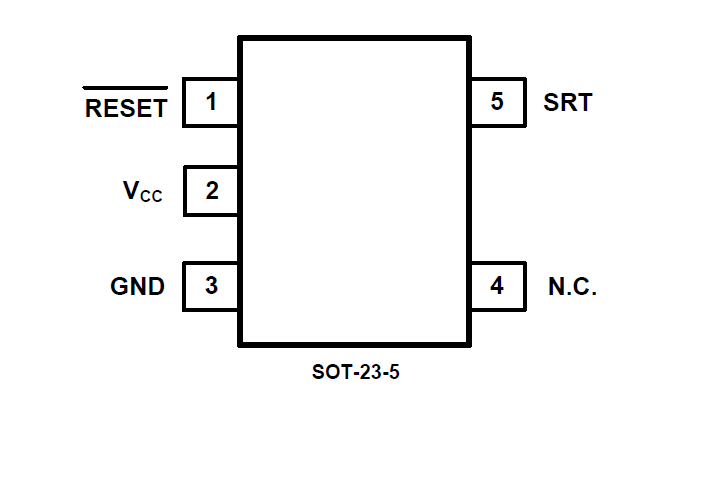

PIN CONFIGUTION
優勢替代
FEATURES
? Extremely Low Standby Current of 0.8 mA at Vin = 1.5 V
? Wide Input Voltage Range (0.7 V to 10 V)
? Monitors Power Supply Voltages from 1.1 V to 5.0 V
? High Accuracy Detector Threshold (±2.5%)
? Two Reset Output Types (Open Drain or Complementary
Drive)
? Two Surface Mount Packages (SOT–89 or SOT–23 5–Pin)

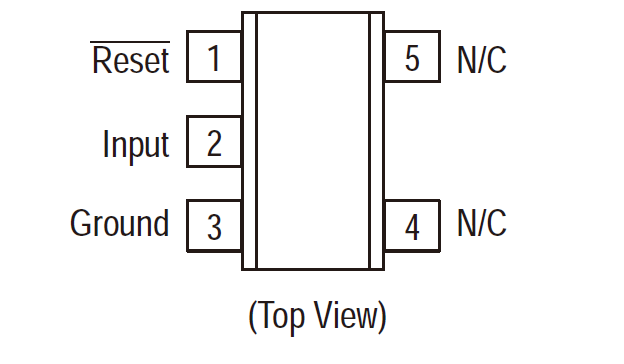

PIN CONFIGUTION
