Nano power operational Amplifier,SGM8041 Replace TP2121.
SGM8041
SGM8041.pdf
SGM8041.pdfFEATURES
? Low Quiescent Current: 710nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 14.5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and MSOP-8
Packages

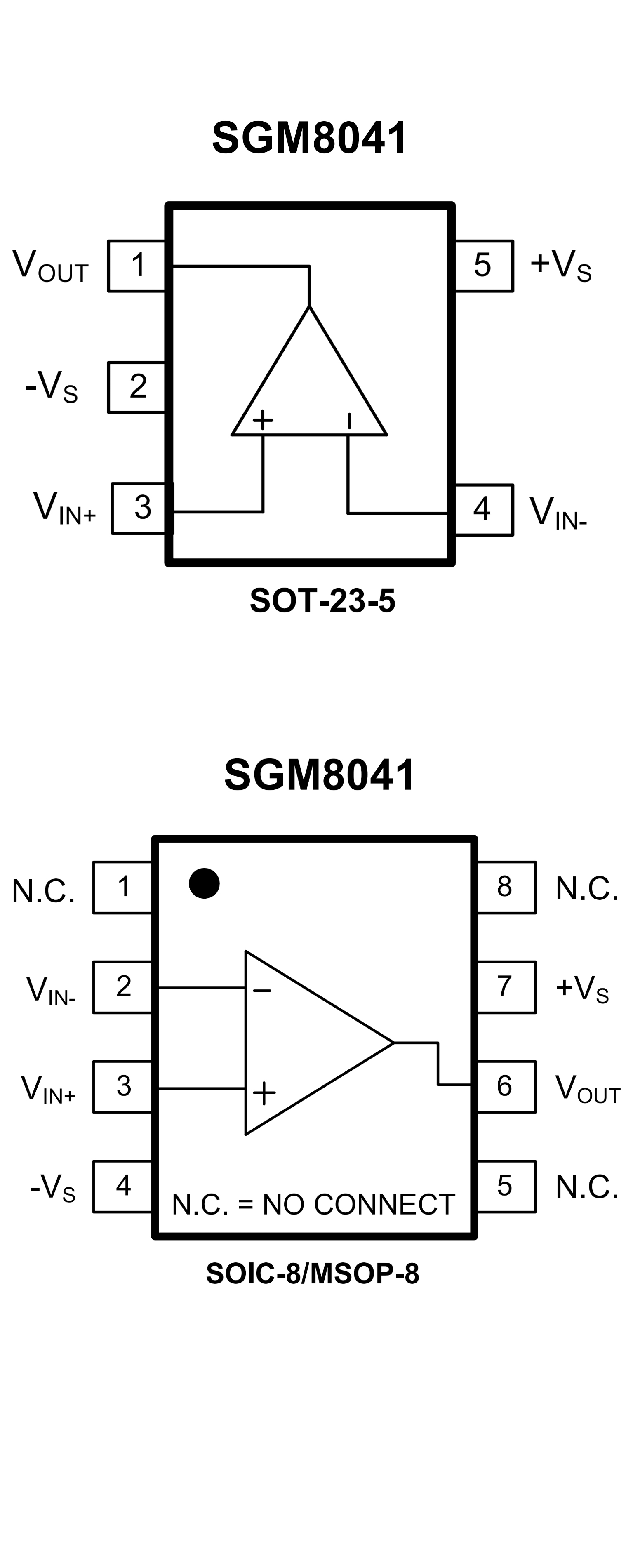

PIN CONFIGUTION
優勢替代
FEATURES
? Supply Current: 950nA Maximum /Amplifier
? Stable 18kHz GBWP with 10mV/μs Slew Rate
? Offset Voltage: 1.5mV Maximum
? Ultra-low VOS TC: 0.5μV/°C
? Ultra-low Input Bias Current: 1fA Typical
? High 120dB Open-Loop Voltage Gain
? Unity Gain Stable for 1,000nF Capacitive Load
? Rail-to-Rail Input/Output Voltage Range
? Outputs Source and Sink 20mA of Load Current
? No Phase Reversal for Overdriven Inputs
? Ultra-low Single-Supply Operation Down to +1.8V
? Shutdown Current: 3nA Typical (TP2121N)
? –40°C to 125°C Operation Range
? Robust 8kV – HBM and 2kV – CDM ESD Rating
? Green, Popular Type Package

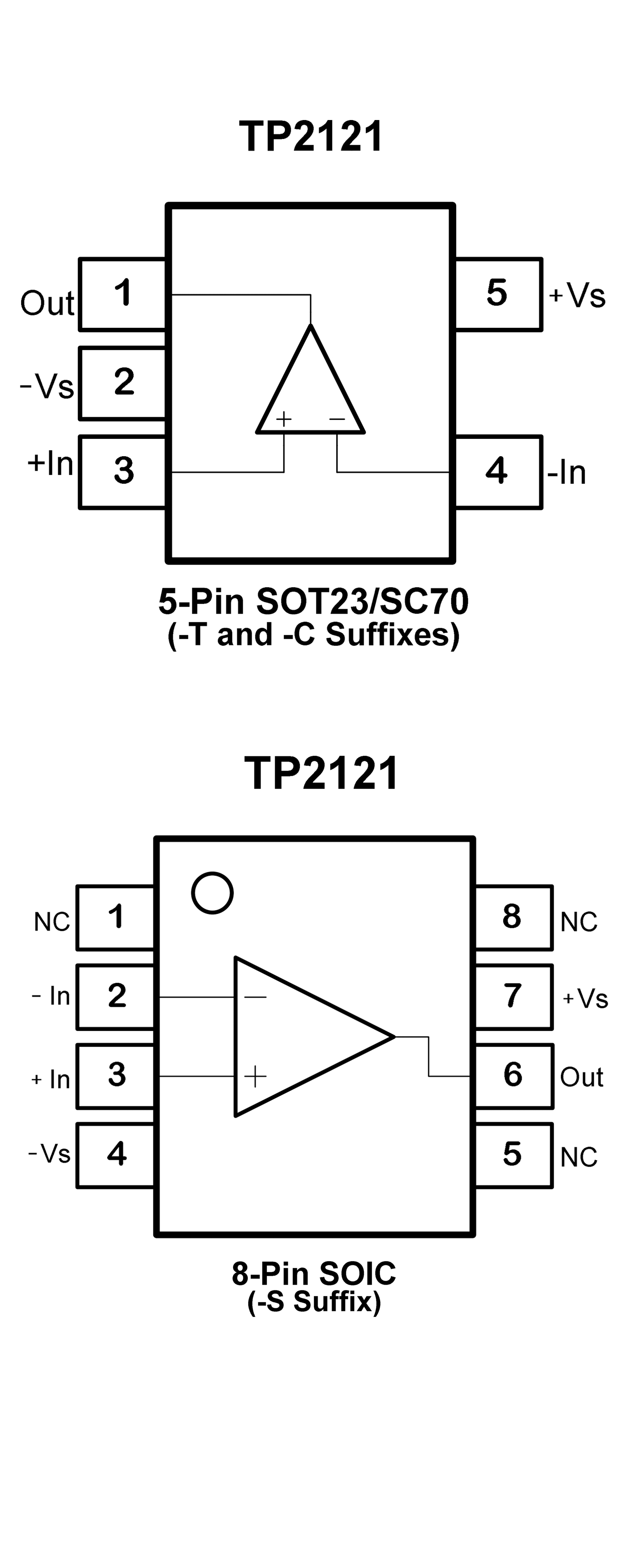

PIN CONFIGUTION
