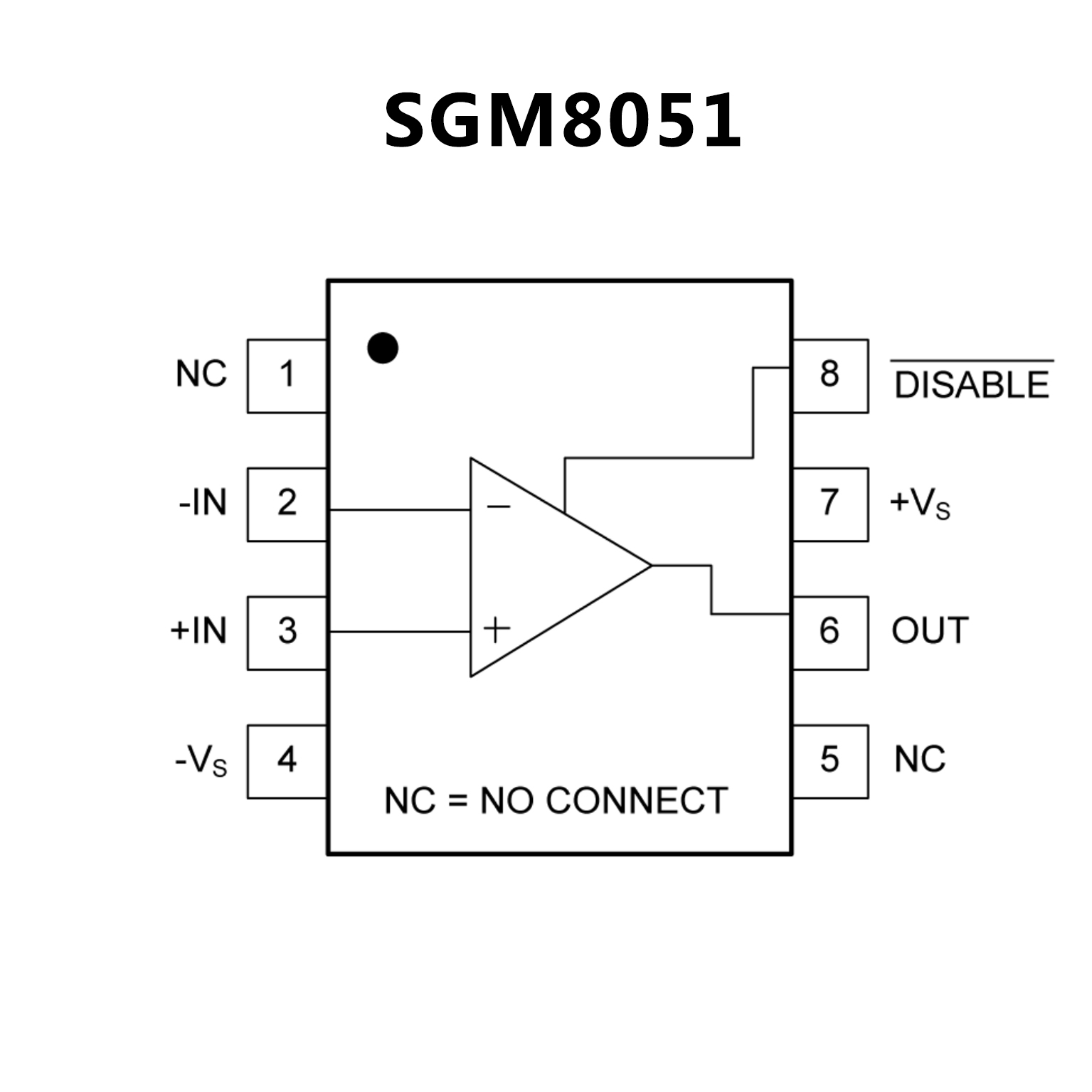

SGM8051.pdf? Low Cost
? Rail-to-Rail Output
? 2mV Typical VOS
? High Speed
250MHz, -3dB Bandwidth (G = +1)
130V/μs, Slew Rate
58ns Settling Time to 0.1% with 2V Step
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.2V to +3.8V with VS = 5V
? Excellent Video Specs (RL = 150Ω, G = +2)
Gain Flatness 0.1dB to 37MHz
Diff Gain: 0.03%, Diff Phase: 0.08 Degree
? Low Supply Current 2.3mA/Amplifier (TYP)
? Small Packaging Available in SOT-23-5 and SOIC-8

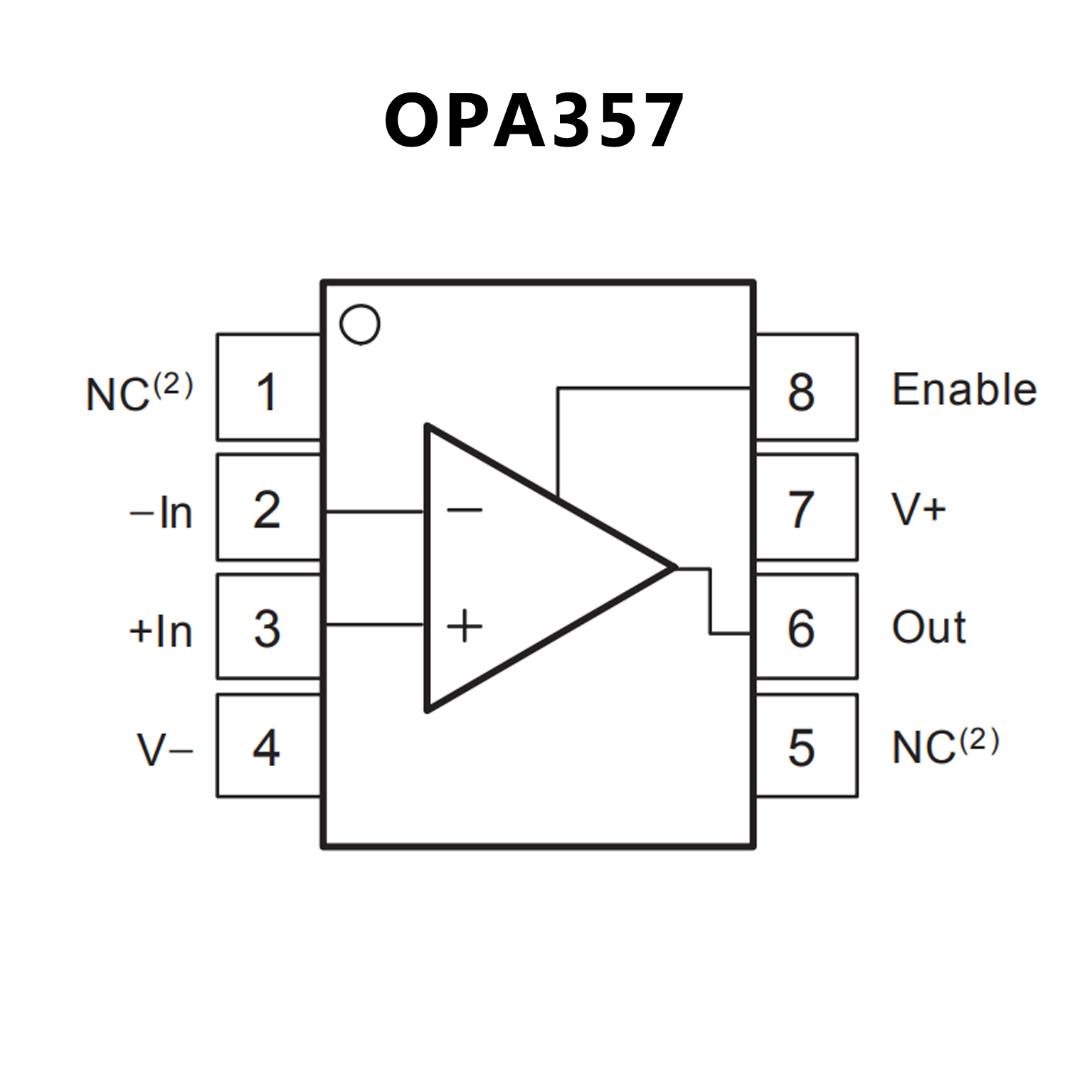

? UNITY-GAIN BANDWIDTH: 250MHz
? WIDE BANDWIDTH: 100MHz GBW
? HIGH SLEW RATE: 150V/s
? LOW NOISE: 6.5nV/√Hz
? RAIL-TO-RAIL I/O
? HIGH OUTPUT CURRENT: > 100mA
? EXCELLENT VIDEO PERFORMANCE:
Diff Gain: 0.02%, Diff Phase: 0.09
0.1dB Gain Flatness: 40MHz
? LOW INPUT BIAS CURRENT: 3pA
? QUIESCENT CURRENT: 4.9mA
? THERMAL SHUTDOWN
? SHUTDOWN IQ < 6A
? MicroSIZE AND PowerPAD? PACKAGES
