250MHz, Rail-to-Rail Output,CMOS Operational Amplifiers,SGM8054 Replace OPA4357.
SGM8054
SGM8054.pdf
SGM8054.pdfFEATURES
? Low Cost
? Rail-to-Rail Output
? Input Offset Voltage: 8mV (MAX)
? High Speed: -3dB Bandwidth (G = +1): 250MHz
Slew Rate: 130V/μs
Settling Time to 0.1% with 2V Step: 58ns
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.2V to 3.8V with VS = 5V
? Excellent Video Specs (RL = 150Ω, G = +2):
0.1dB Gain Flatness: 37MHz
Diff Gain: 0.03%, Diff Phase: 0.08°
? Low Supply Current:
2.3mA/Amplifier (TYP)
75μA Shutdown Current for SGM8053/5
? Small Packaging:
SGM8054 Available in TSSOP-14 and SOIC-14
Packages

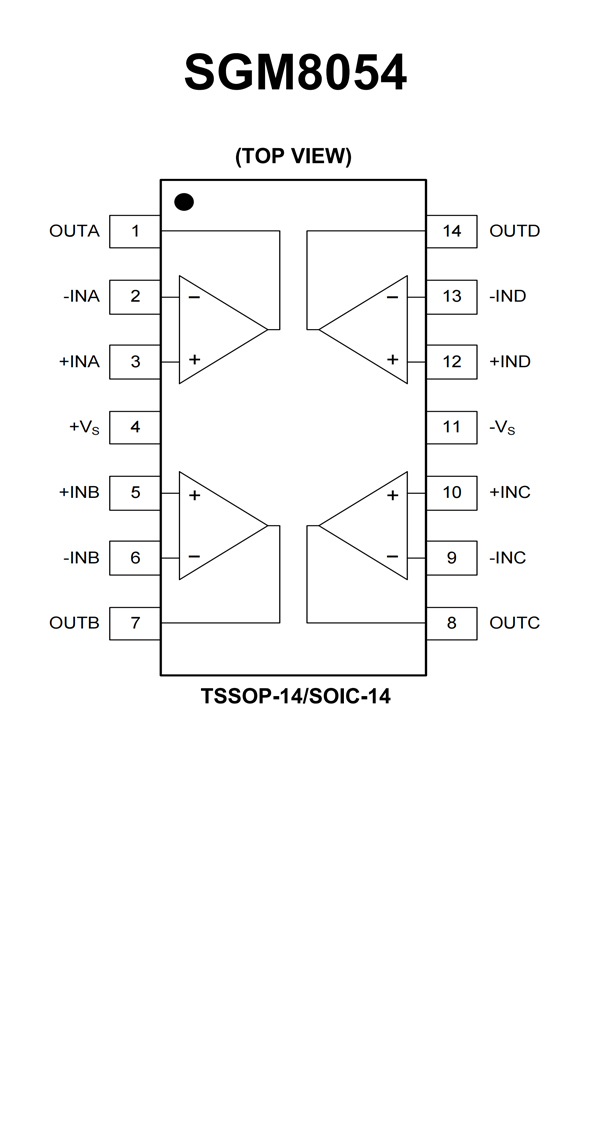

PIN CONFIGUTION
