High Speed Operational Amplifier, Replace TSH72
SGM80582
SGM80582.pdf
SGM80582.pdfFEATURES
? Unity-Gain Bandwidth: 220MHz
? Wide Bandwidth: 100MHz GBP
? High Slew Rate: 160V/μs
? Low Noise: 7nV/Hz at 1MHz
? Rail-to-Rail Input and Output
? High Output Current: 150mA (TYP)
? Excellent Video Performance:
Diff Gain: 0.01%, Diff Phase: 0.1°
0.1dB Gain Flatness: 30MHz
? Low Input Bias Current: 2pA
? Quiescent Current: 4.5mA/Amplifier (TYP)
? Thermal Shutdown
? 2.5V to 5.5V Single Supplies or ±1.25V to
±2.75V Dual Power Supplies

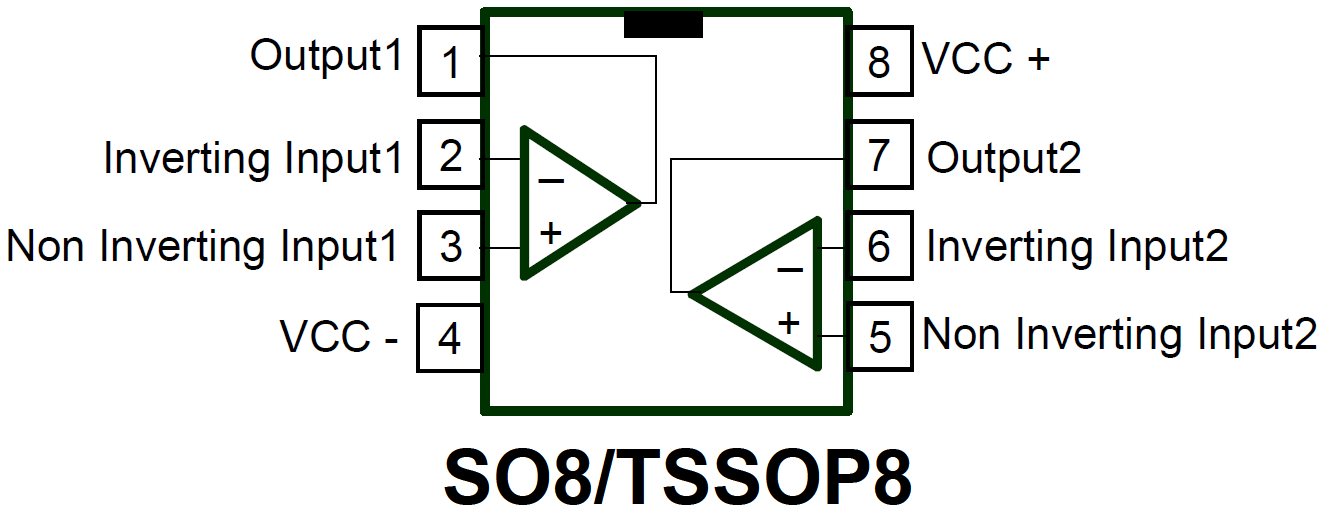

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 3 V, 5 V, ±5 V specifications
? 3 dB bandwidth: 90 MHz
? Gain bandwidth product: 70 MHz
? Slew rate: 100 V/μs (typical for 5 V)
? Output current: up to 55 mA
? Input single supply voltage
? Output rail-to-rail
? Specified for 150 Ω loads
? Low distortion, THD: 0.1 %

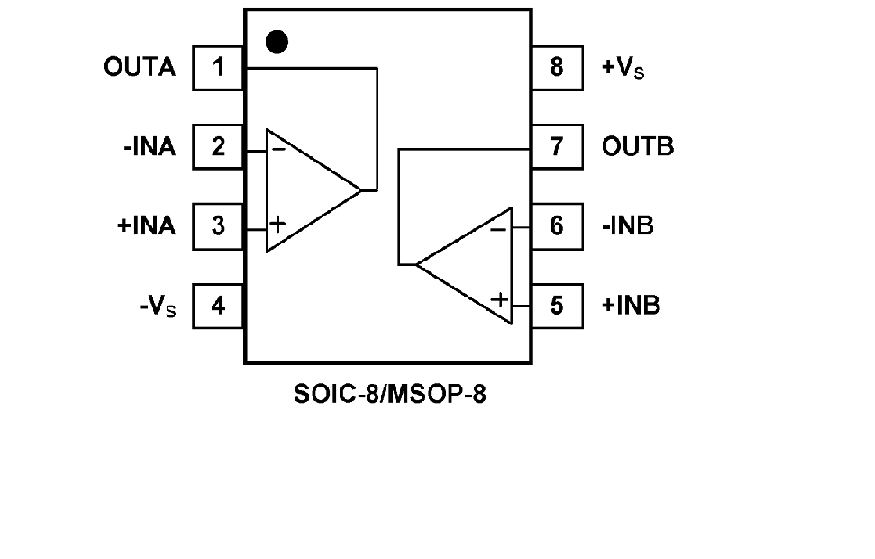

PIN CONFIGUTION
