High Speed Operational Amplifier,SGM80584 Replace OPA4354.
SGM80584
SGM80584.pdf
SGM80584.pdfFEATURES
? Unity-Gain Bandwidth: 220MHz
? Wide Bandwidth: 100MHz GBP
? High Slew Rate: 160V/μs
? Low Noise: 7nV/ Hz at 1MHz
? Rail-to-Rail Input and Output
? High Output Current: 150mA (TYP)
? Excellent Video Performance:
Diff Gain: 0.01%, Diff Phase: 0.1°
0.1dB Gain Flatness: 30MHz
? Low Input Bias Current: 2pA
? Quiescent Current: 4.5mA/Amplifier (TYP)
? Thermal Shutdown
? 2.5V to 5.5V Single Supplies or ±1.25V to ±2.75V
Dual Power Supplies
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM80584 Available in Green SOIC-14 Package

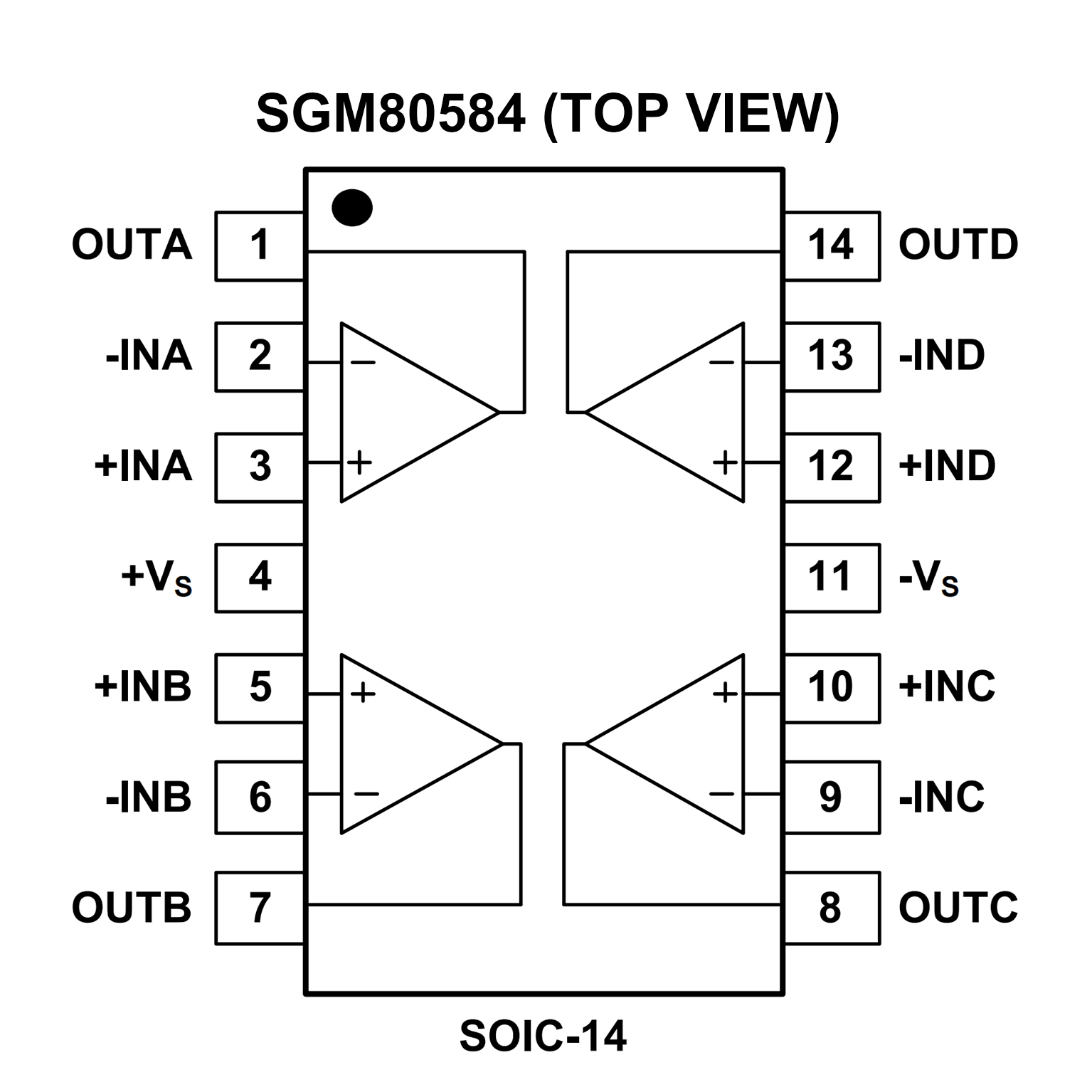

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? UNITY-GAIN BANDWIDTH: 250MHz
? WIDE BANDWIDTH: 100MHz GBW
? HIGH SLEW RATE: 150V/μs
? LOW NOISE: 6.5nV/√Hz
? RAIL-TO-RAIL I/O
? HIGH OUTPUT CURRENT: > 100mA
? EXCELLENT VIDEO PERFORMANCE:
Diff Gain: 0.02%, Diff Phase: 0.09
0.1dB Gain Flatness: 40MHz
? LOW INPUT BIAS CURRENT: 3pA
? QUIESCENT CURRENT: 4.9mA
? THERMAL SHUTDOWN
? SUPPLY RANGE: 2.5V to 5.5V
? MicroSIZE AND PowerPAD? PACKAGES

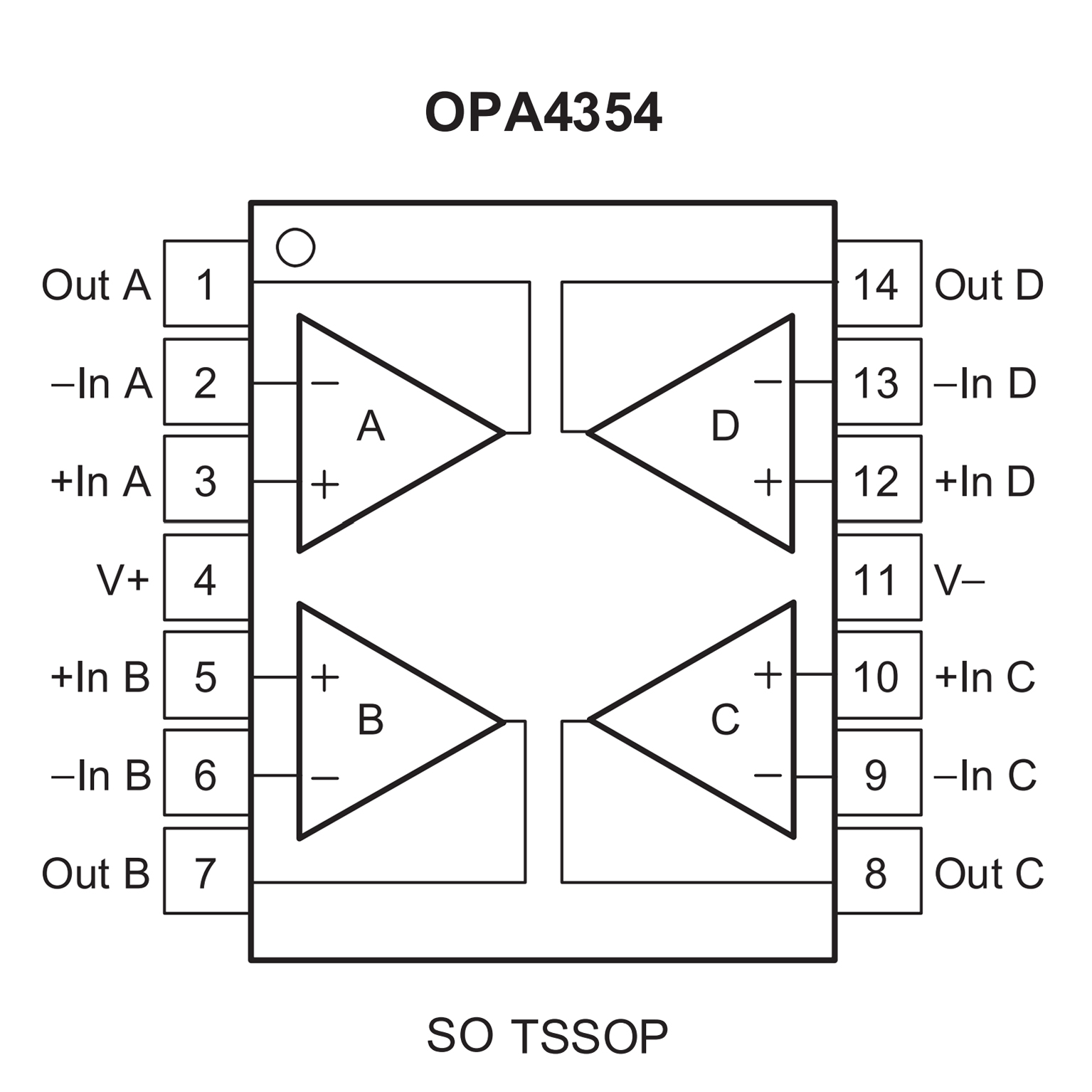

PIN CONFIGUTION
