High Speed Operational Amplifier,SGM8061 Replace OPA698.
SGM8061
SGM8061.pdf
SGM8061.pdfFEATURES
? Low Cost
? Rail-to-Rail Output
2mV Typical VOS
? High Speed
500 MHz, –3 dB Bandwidth (G = +1)
420 V/μs, Slew Rate
16 ns Settling Time to 0.1% with 2V Step
? Operates on 2.5 V to 5.5V Supplies
? Input Voltage Range = – 0.2 V to + 3.8 V with VS = 5V
? Excellent Video Specs (RL = 150Ω, G = +2)
Gain Flatness 0.1dB to 80 MHz
Diff Gain: 0.015 %, Diff Phase: 0.05 degree
? Low Power
8.2 mA/Amplifier Typical Supply Current
SGM8063 75μA when Disabled
? Small Packaging
SGM8061 Available in SO-8 and SOT23-5

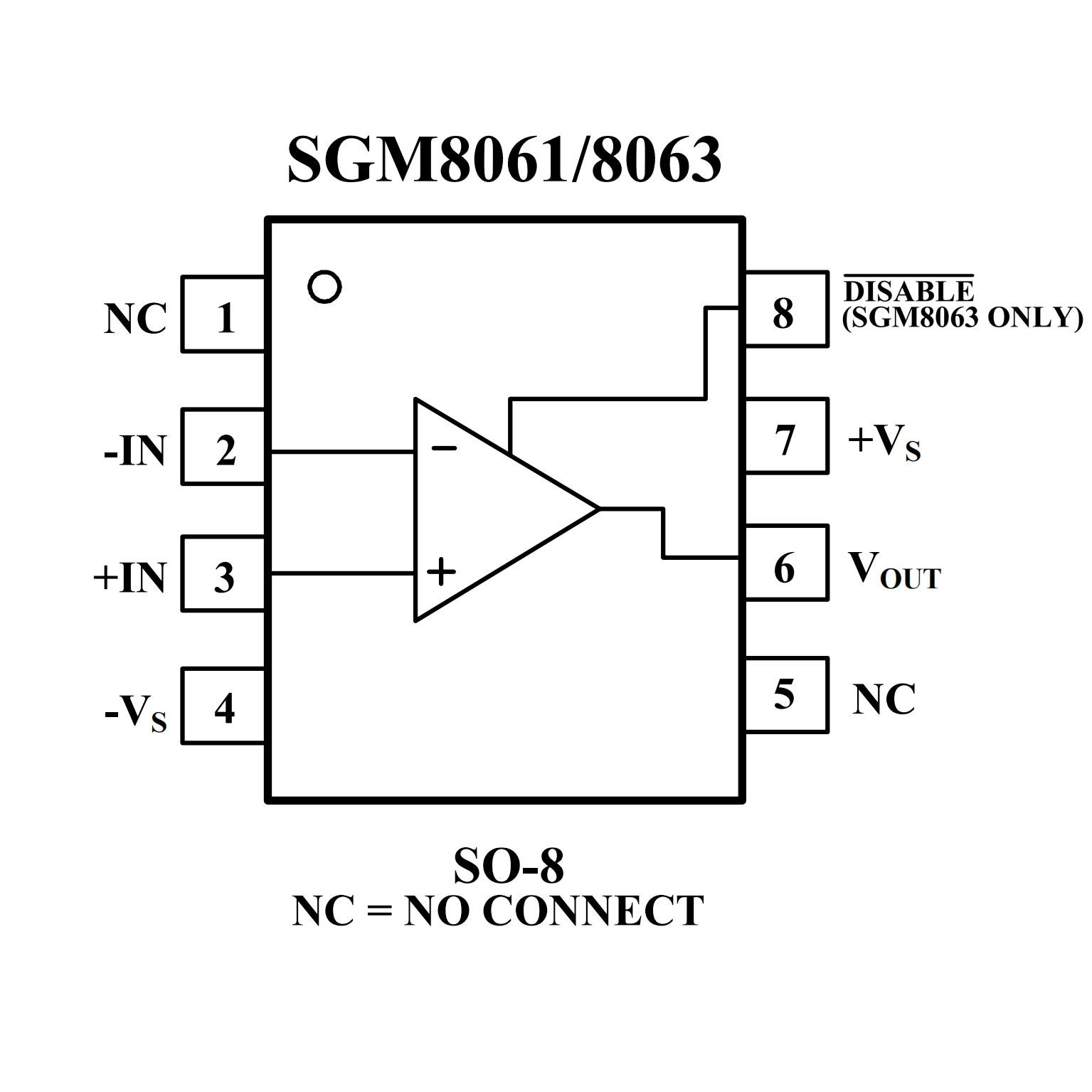

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? HIGH LINEARITY NEAR LIMITING
? FAST RECOVERY FROM OVERDRIVE: 1ns
? LIMITING VOLTAGE ACCURACY: ±10mV
? –3dB BANDWIDTH (G = +1): 450MHz
? GAIN BANDWIDTH PRODUCT: 250MHz
? SLEW RATE: 1100V/μs
? ±5V AND +5V SUPPLY OPERATION

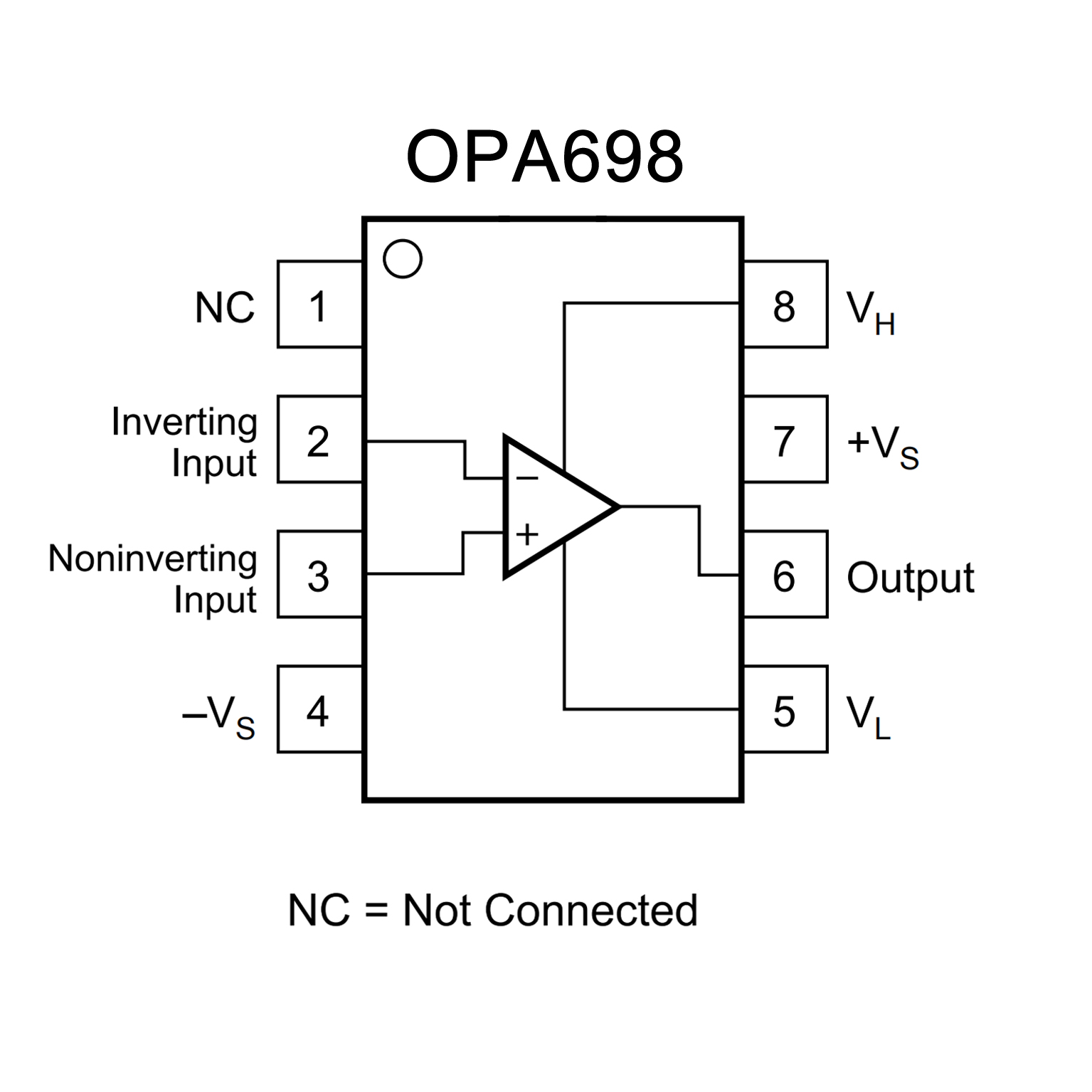

PIN CONFIGUTION
