350MHz, Rail-to-Rail Output CMOS Operational Amplifiers,SGM8094 Replace AD8094.
SGM8094
SGM8094.pdf
SGM8094.pdfFEATURES
? Rail-to-Rail Output
? Input Offset Voltage: 8mV (MAX)
? High Speed:
350MHz, -3dB Bandwidth (G = +1)
265V/μs, Slew Rate
32ns Settling Time to 0.1% with 2V Step
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.2V to 3.8V with VS = 5V
? Excellent Video Specs (RL = 150Ω, G = +2):
Gain Flatness 0.1dB to 70MHz
Diff Gain: 0.004%, Diff Phase: 0.08 Degree
? Low Supply Current:
4.3mA/Amplifier (TYP)
75μA Shutdown Current for SGM8093
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8094 Available in SOIC-14 and TSSOP-14

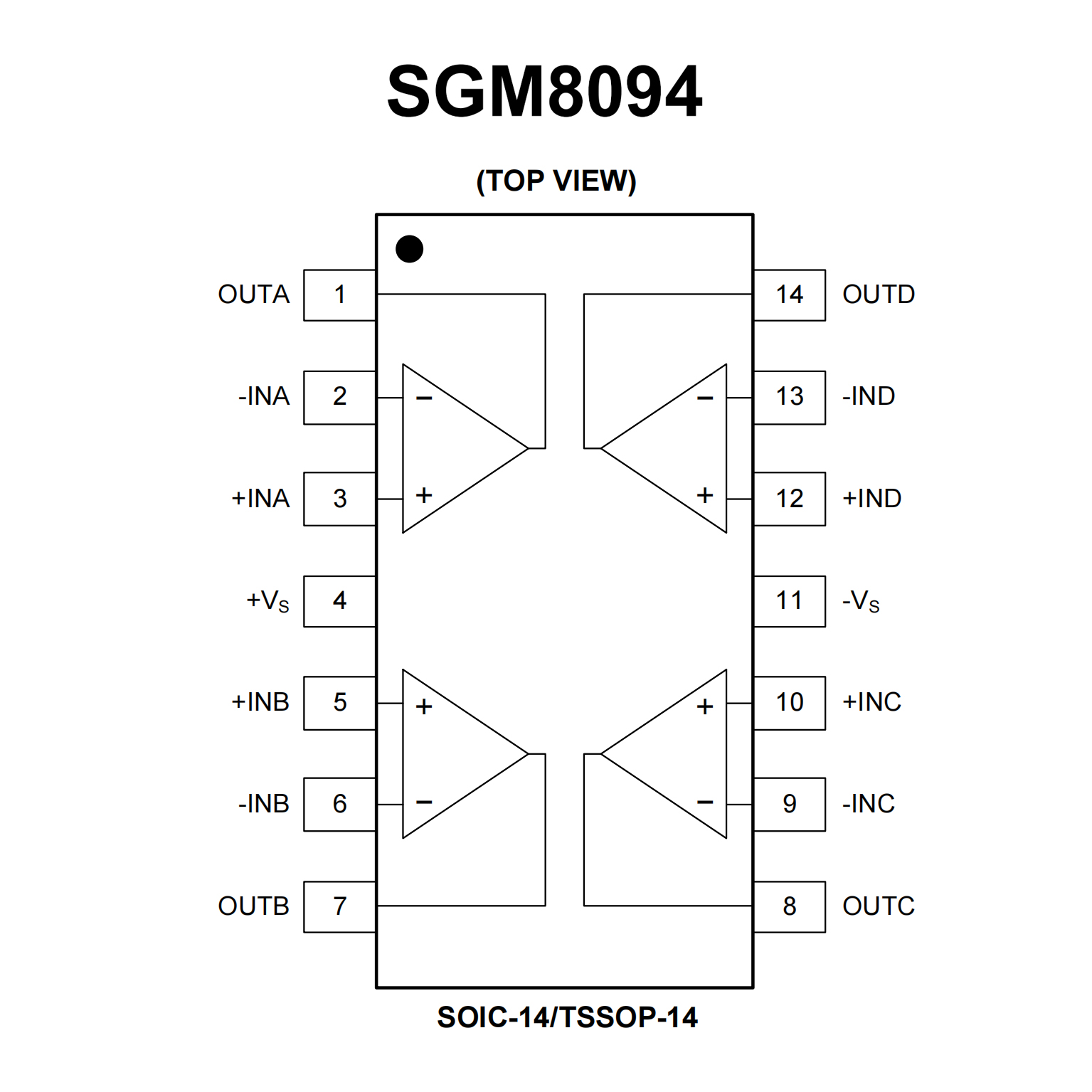

PIN CONFIGUTION
