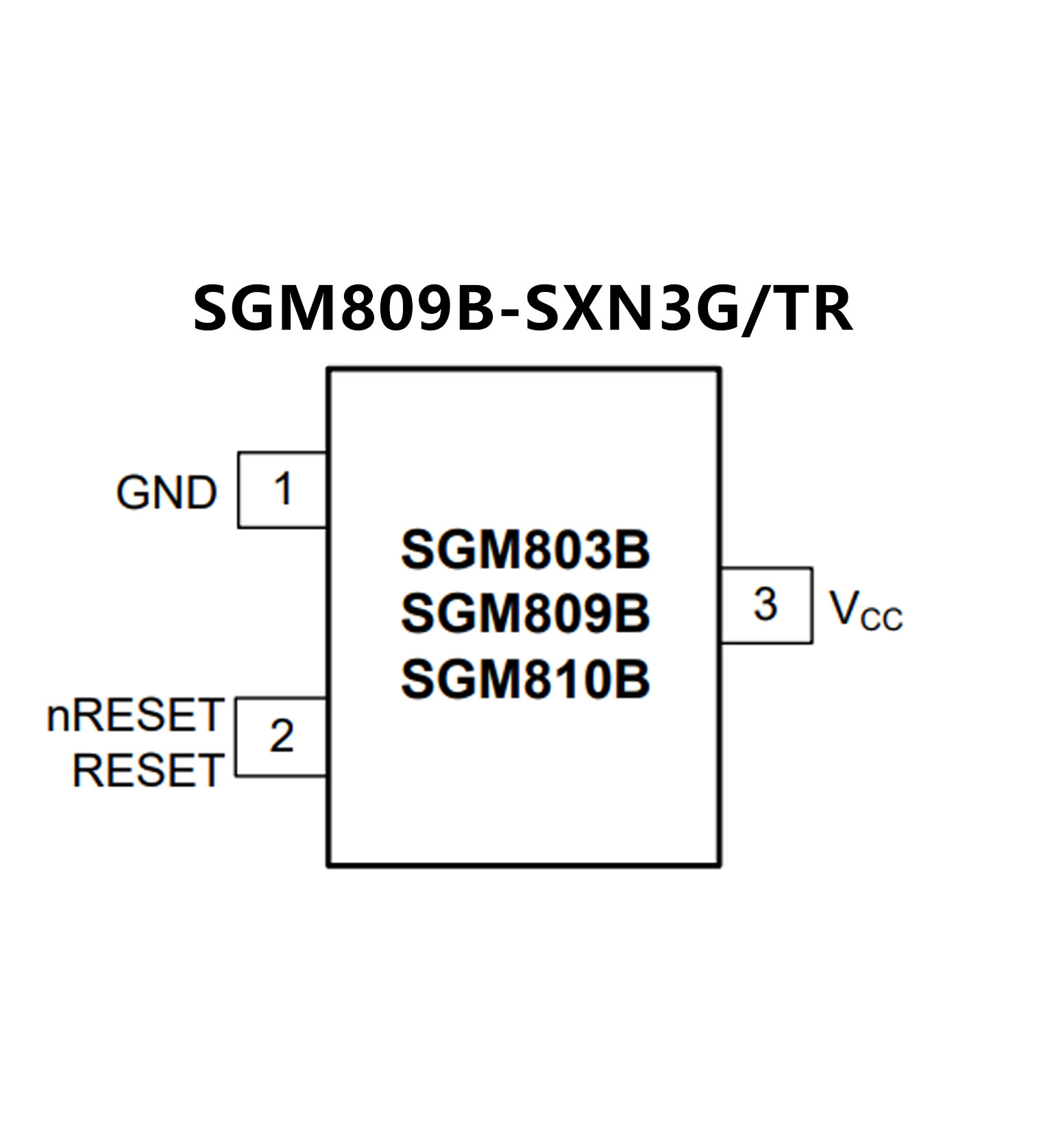

SGM809B-SXN3G.pdf? Precision Voltage Monitor: 3V, 3.3V, 5V Options
? Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
? Fully Specified over Temperature
? VCC Transient Immunity
? Low Power Consumption: 240nA (TYP)
? Reset Assertion Down to 1V VCC
? 330ms Power-On Reset (TYP)
Open-Drain nRESET Output (SGM803B)
Push-Pull nRESET Output (SGM809B)
Push-Pull RESET Output (SGM810B)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging
SGM803B Available in SOT-23-3 and SOT-23
SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23

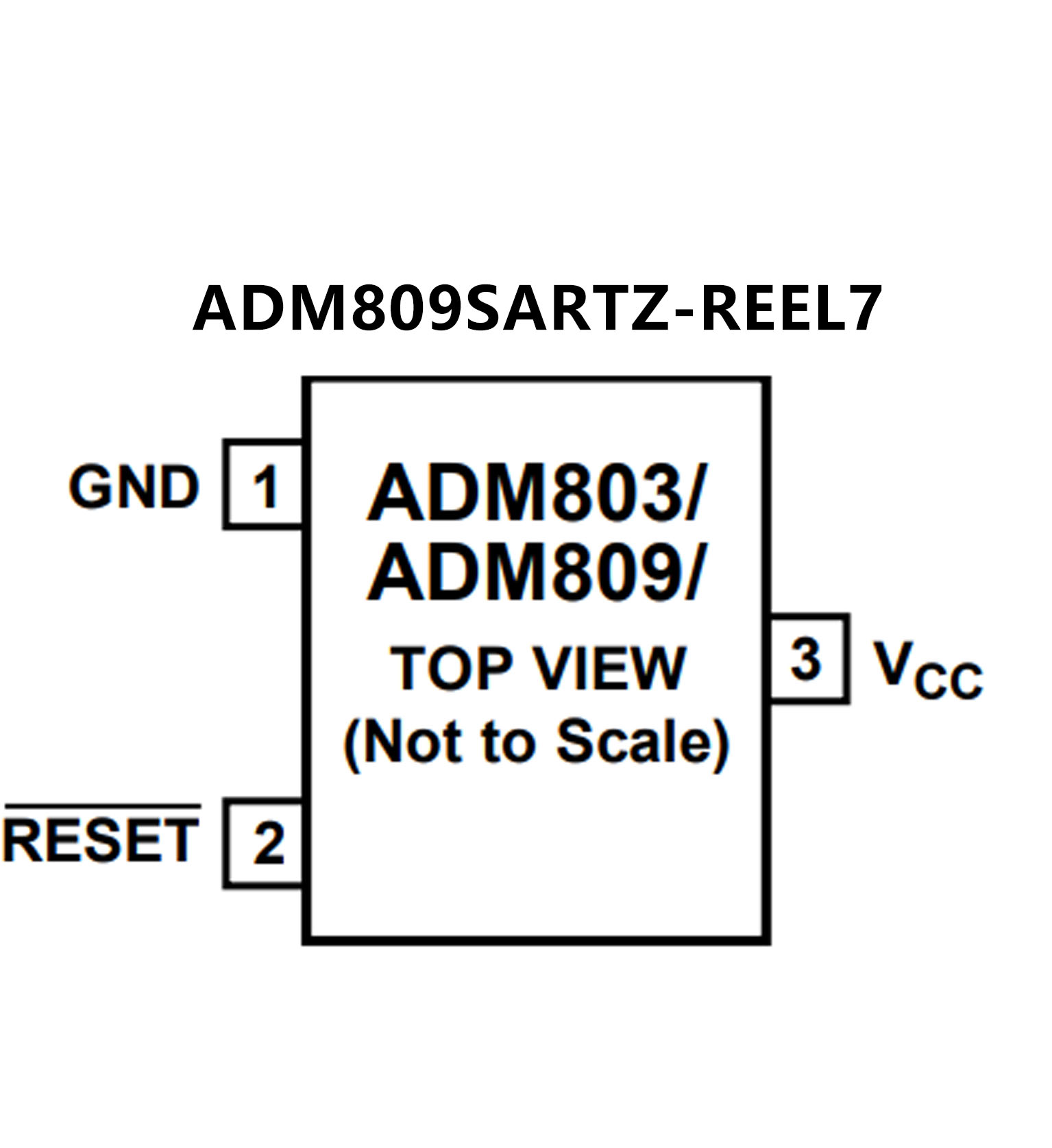

? Specified over temperature
? Low power consumption: 17 μA
? Precision voltage monitor: 2.5 V, 3 V, 3.3 V, 5 V options
? Reset assertion down to 1 V VCC
? 140 ms minimum power-on reset
Open-drain RESET output (ADM803)
Push-pull RESET output (ADM809)
Push-pull RESET output (ADM810)
? SC70 and SOT-23 packages
