Nano Power Operational Amplifier, SGM8141 Replace TLV521.
SGM8141
SGM8141.pdf
SGM8141.pdfFEATURES
? Low Quiescent Current: 380nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and
MSOP-8 Packages
PIN CONFIGUTION
優勢替代
FEATURES
? Unmatched Price Performance
? For VS = 3.3 V, Typical Unless Otherwise Noted
– 350 nA Typical, 500 nA Maximum
– Wide Operating Voltage Range 1.7 V to 5.5 V
– Low TCVOS 1.5 μV/°C
– VOS 3 mV (Max)
– Input Bias Current 1 pA
– PSRR 100 dB
– CMRR 90 dB
– Open-Loop Gain 110 dB
– Slew Rate 2.5 V/ms
– Input Voltage Noise at f = 100 Hz 300 nV/√Hz
– Rail to Rail Input and Output (RRIO)

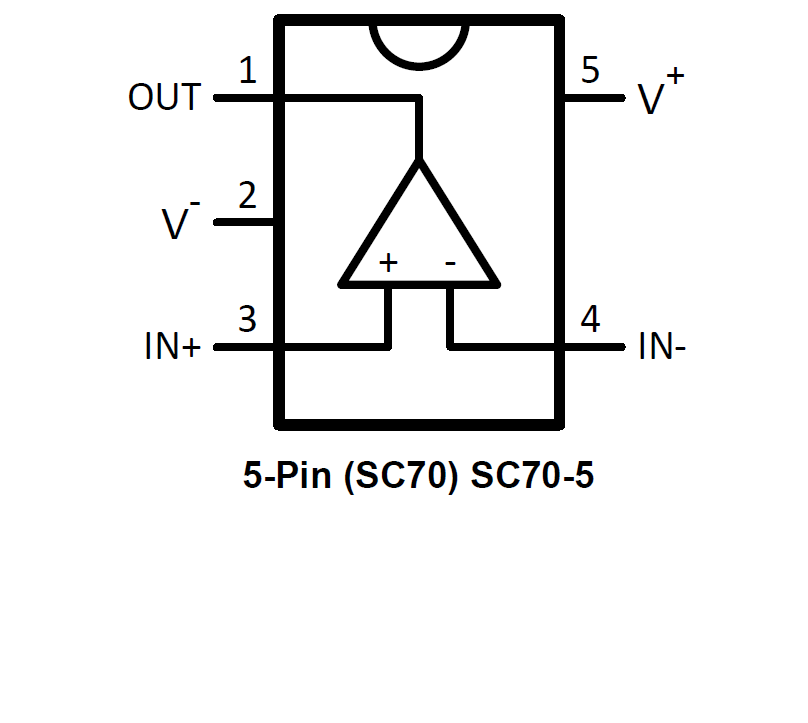

PIN CONFIGUTION
