Ultra Low Power Voltage Detectors with Optional Watchdog,Replace TPS3110
SGM815
SGM815.pdf
SGM815.pdfFEATURES
? High Accuracy Fixed Detection Options: 1.2V,
1.5V, 1.6V, 2V and 3.3V
? High Trigger Accuracy: 1% (TYP)
? Low Quiescent Current: 1.6μA (TYP)
? Low nRESET Defined Input Voltage: 0.5V
? Delay Time for the Power-on Reset Generator: 140ms
? Reset Output Options:
Open-Drain: SGM814 and SGM815
Push-Pull: SGM816
? Available in a Green SOT-23-6 Package
PIN CONFIGUTION
優勢替代
FEATURES
? Precision Supply Voltage Supervision Range:
0.9 V, 1.2 V, 1.5 V, 1.6 V, 2 V, and 3.3 V
? High Trip-Point Accuracy: 0.75%
? Supply Current of 1.2 μA (Typical)
? RESET Defined With Input Voltages as Low as 0.4 V
? Power-On Reset Generator With a Delay Time of 130 ms
? Push/Pull or Open-Drain RESET Outputs
? Package Temperature Range: –40°C to 125°C

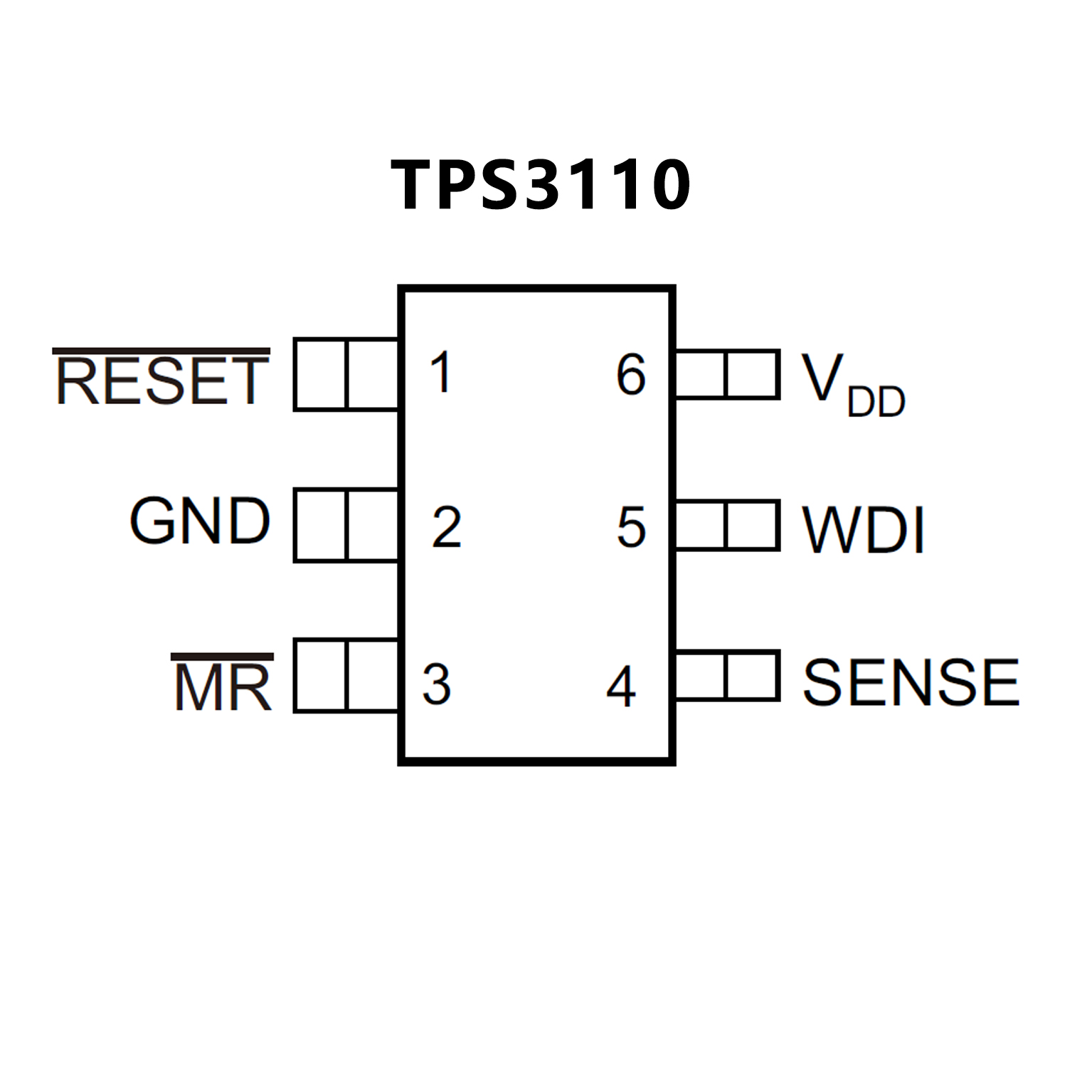

PIN CONFIGUTION
