Tiny Packages, Nano-Power, Precision Current-Sense Amplifier,SGM8193 Replace MAX9634.
SGM8193
SGM8193.pdf
SGM8193.pdfFEATURES
? Ultra-Low Quiescent Current at
TA = +25℃:0.8μA (TYP), 1.1μA (MAX)
? Input Common Mode Range: 1.6V to 28V
? Low Input Offset Voltage: 100μV (MAX)
? Choice of Gains:
SGM8193A0 Gain: 25V/V
SGM8193A1 Gain: 50V/V
SGM8193A2 Gain: 100V/V
SGM8193A3 Gain: 200V/V
? Low Gain Error: 0.5% (MAX)
? Voltage Output
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5
and WLCSP-1×1-4BPackages

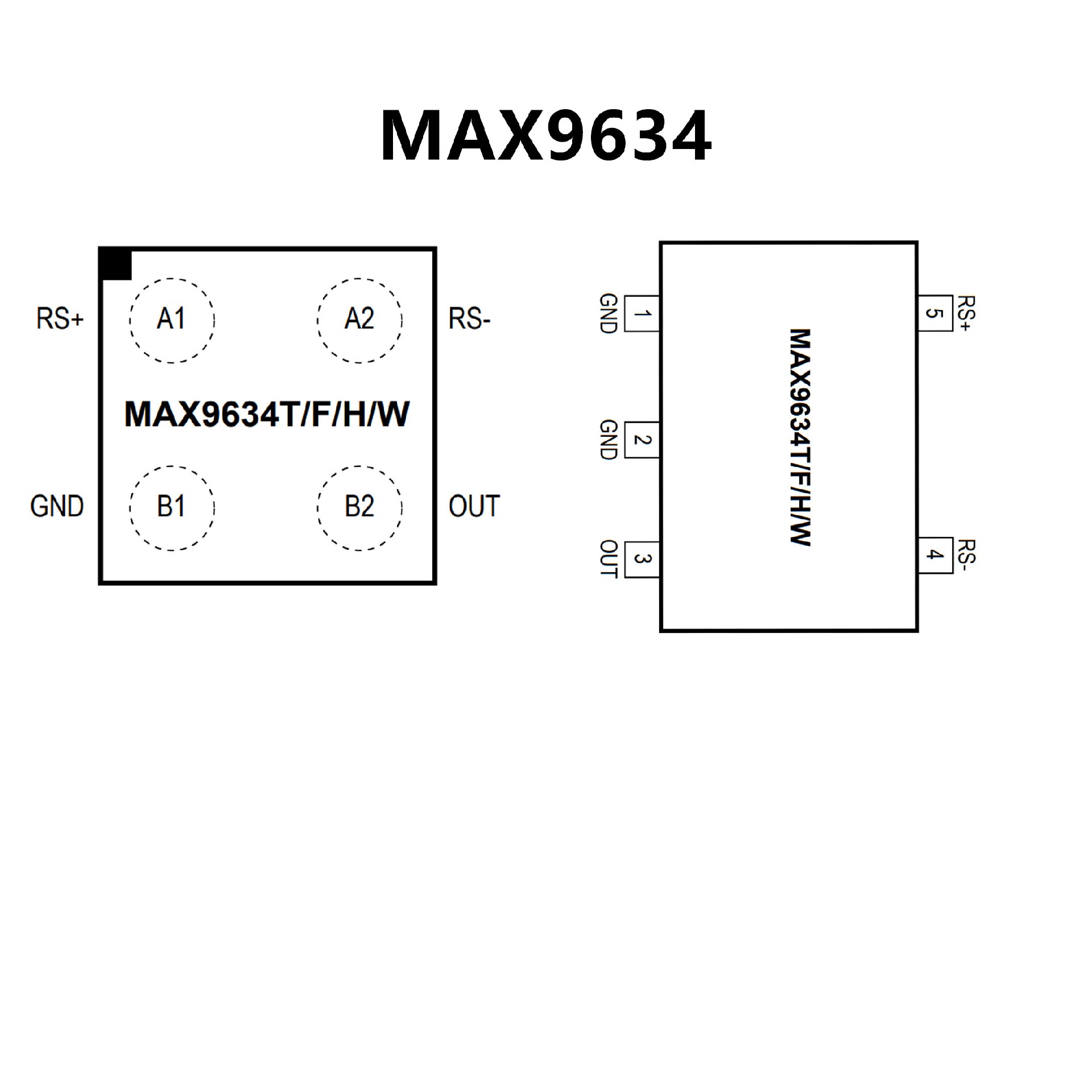

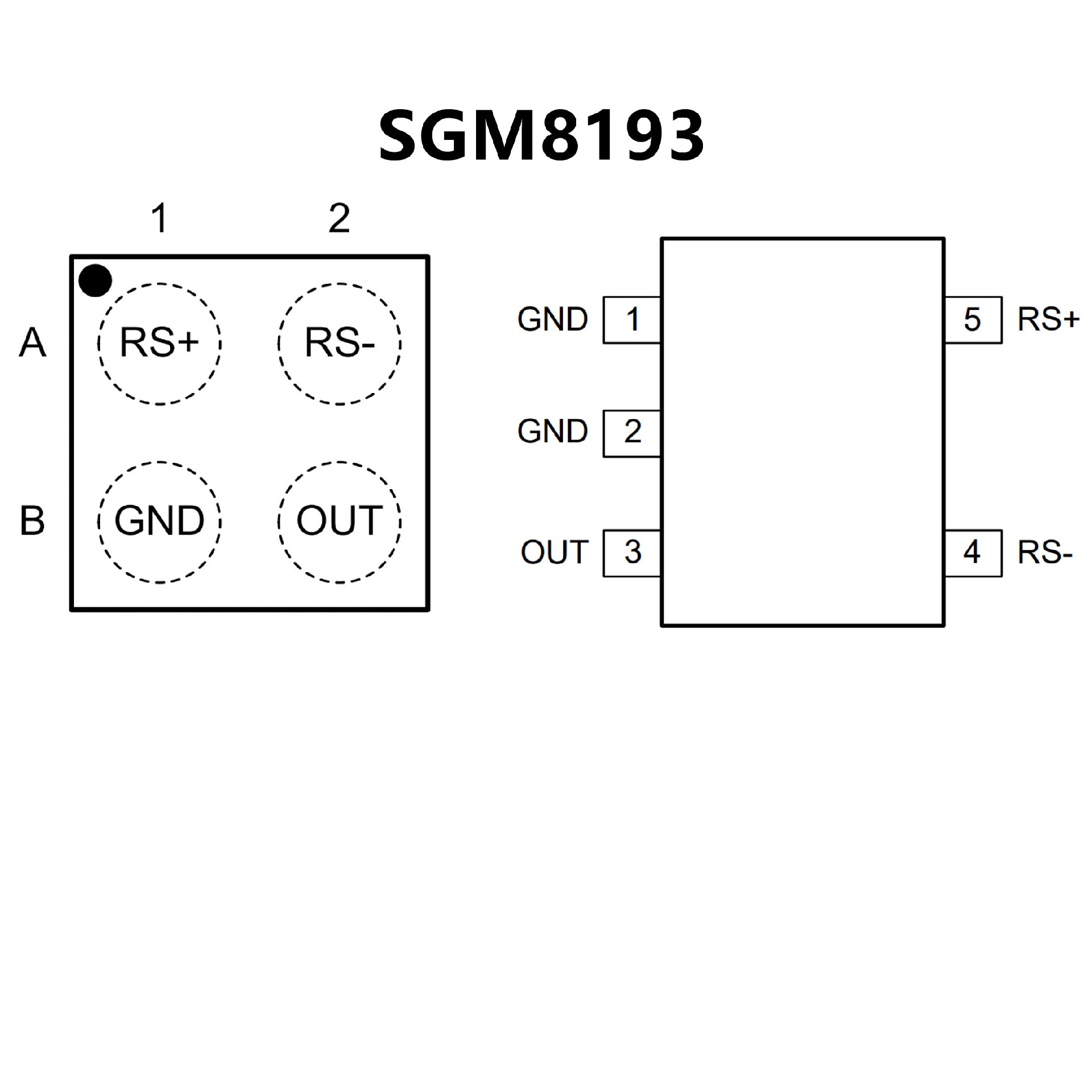

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Ultra-Low Supply Current of 1μA (max)
? Low 250μV (max) Input Offset Voltage
? Low < 0.5% (max) Gain Error
? Input Common Mode: +1.6V to +28V
? Voltage Output
? Four Gain Versions Available
25V/V (MAX9634T)
50V/V (MAX9634F)
100V/V (MAX9634H)
200V/V (MAX9634W)
? Tiny 1mm x 1mm x 0.6mm, 4-Bump UCSP or
5-PinSOT23 Packages
PIN CONFIGUTION
