Micro Power operational Amplifier,SGM8210-2 Replace TLV2262.
SGM8210-2
SGM8210-2.pdf
SGM8210-2.pdfFEATURES
? Low 0.1Hz to 10Hz Noise: 3μVP-P
? Wide Supply Voltage Range: 3.3V to 24V
? Low Power Consumption: 50μA/Amplifier (TYP)
? Low Offset Voltage: 1mV (MAX)
? Input Voltage Noise Density: 25nV/ Hz at 1kHz
? Slew Rate: 0.3V/μs
? Rail-to-Rail Input and Output
? High DC Precision:
CMRR: 115dB
PSRR: 120dB
AOL: 120dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8210-2 Available in Green SOIC-8, MSOP-8
and TDFN-2×3-8L Packages

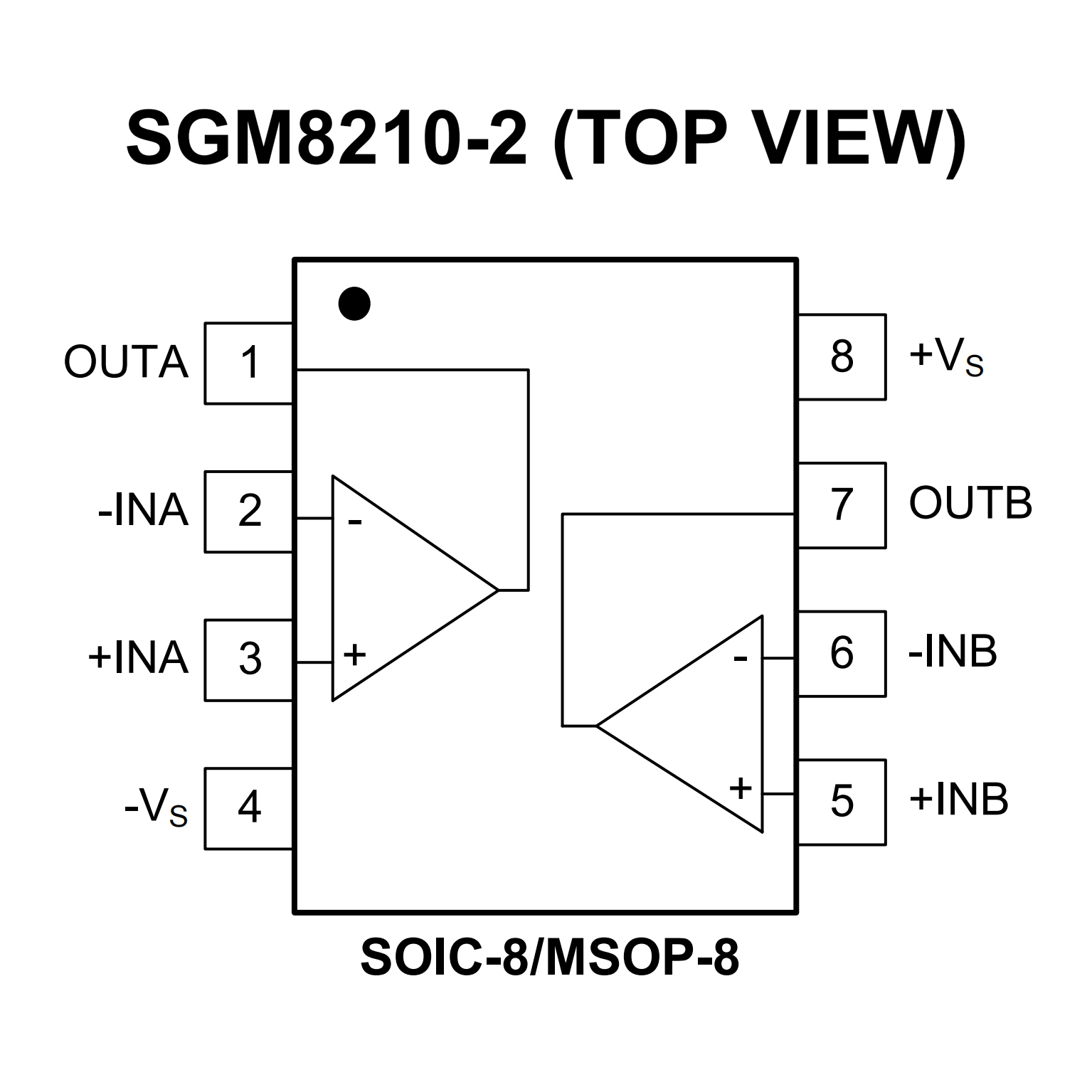

PIN CONFIGUTION
優勢替代
FEATURES
? Output Swing Includes Both Supply Rails
? Low Noise . . . 12 nV/√Hz Typ at f = 1 kHz
? Low Input Bias Current . . . 1 pA Typ
? Fully Specified for Both Single-Supply and
Split-Supply Operation
? Low Power . . . 500 μA Max
? Common-Mode Input Voltage Range
Includes Negative Rail
? Low Input Offset Voltage
950 μV Max at TA = 25°C (TLV226xA)
? Wide Supply Voltage Range 2.7 V to 8 V
? Macromodel Included
? Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards

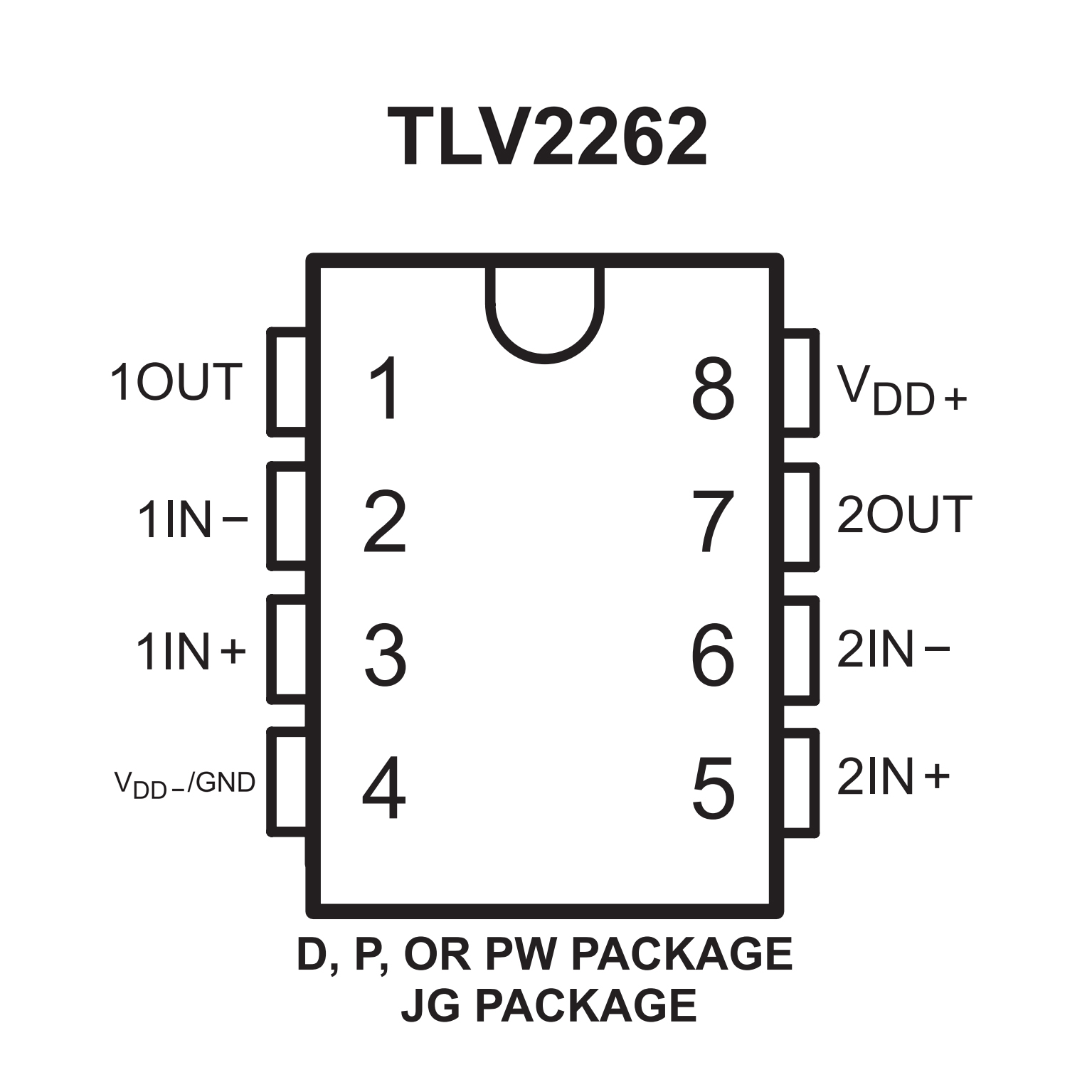

PIN CONFIGUTION
