3.3V to 24V, 1MHz, Low Noise, Rail-to-Rail I/O Operational Amplifier,SGM8210-2 Replace TLV252.
SGM8210-2
SGM8210-2.pdf
SGM8210-2.pdfFEATURES
? Low 0.1Hz to 10Hz Noise: 3μVP-P
? Wide Supply Voltage Range: 3.3V to 24V
? Low Power Consumption: 50μA/Amplifier (TYP)
? Low Offset Voltage: 1mV (MAX)
? Input Voltage Noise Density: 25nV/ Hz at 1kHz
? Slew Rate: 0.3V/μs
? Rail-to-Rail Input and Output
? High DC Precision:
CMRR: 115dB
PSRR: 120dB
AOL: 120dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8210-2 Available in Green SOIC-8, MSOP-8
and TDFN-2×3-8L Packages

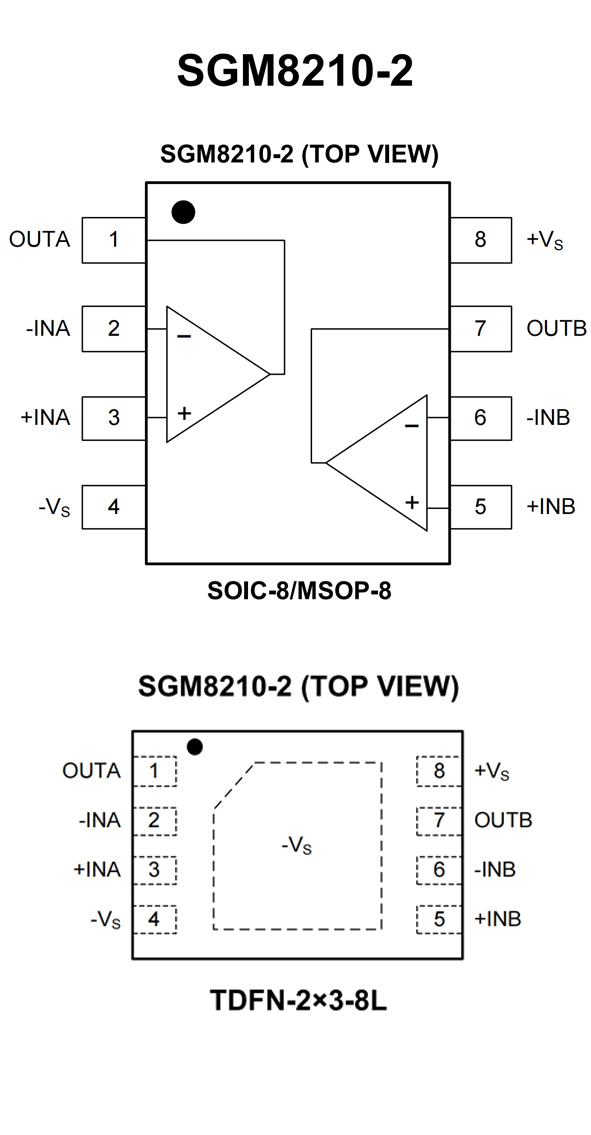

PIN CONFIGUTION
