SGM8240-1AXN5G.pdf? Low Noise: 3μVP-P (0.1Hz to 10Hz)
? Wide Supply Voltage Range: 2.7V to 24V
? Micro Power Consumption: 2.8μA/Amplifier (TYP)
? Low Offset Voltage: 0.4mV (TYP)
? Noise Density: 100nV/ Hz at 1kHz
? Slew Rate: 0.05V/μs
? Rail-to-Rail Input and Output
? High DC Precision:
CMRR: 110dB
PSRR: 116dB
AOL: 120dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

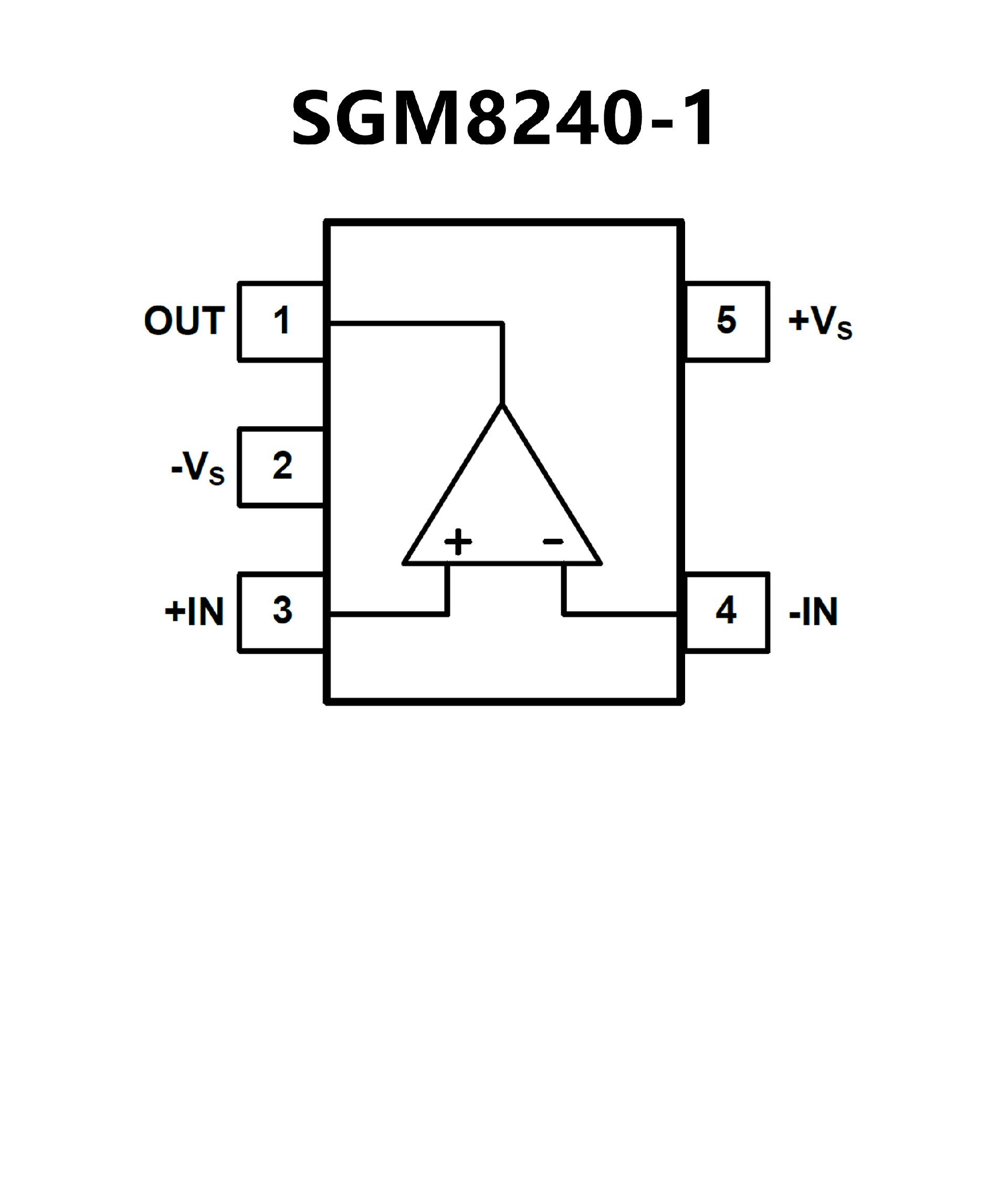

SGM8240-1 Available in Green SOT-23-5 and
SC70-5 Packages
SGM8240-2 Available in Green SOIC-8, MSOP-8
and TDFN-2×3-8L Packages
SGM8240-4 Available in a Green SOIC-14 Package
? BiMOS Rail-to-Rail Output
? Input Bias Current . . . 1 pA
? High Wide Bandwidth . . . 160 kHz
? High Slew Rate . . . 0.1 V/μs
? Supply Current . . . 7 μA (per channel)
? Input Noise Voltage . . . 89 nV/√Hz
? Supply Voltage Range . . . 2.7 V to 16 V
? Specified Temperature Range
?40°C to 125°C . . . Industrial Grade
0°C to 70°C . . . Commercial Grade
? Ultra-Small Packaging

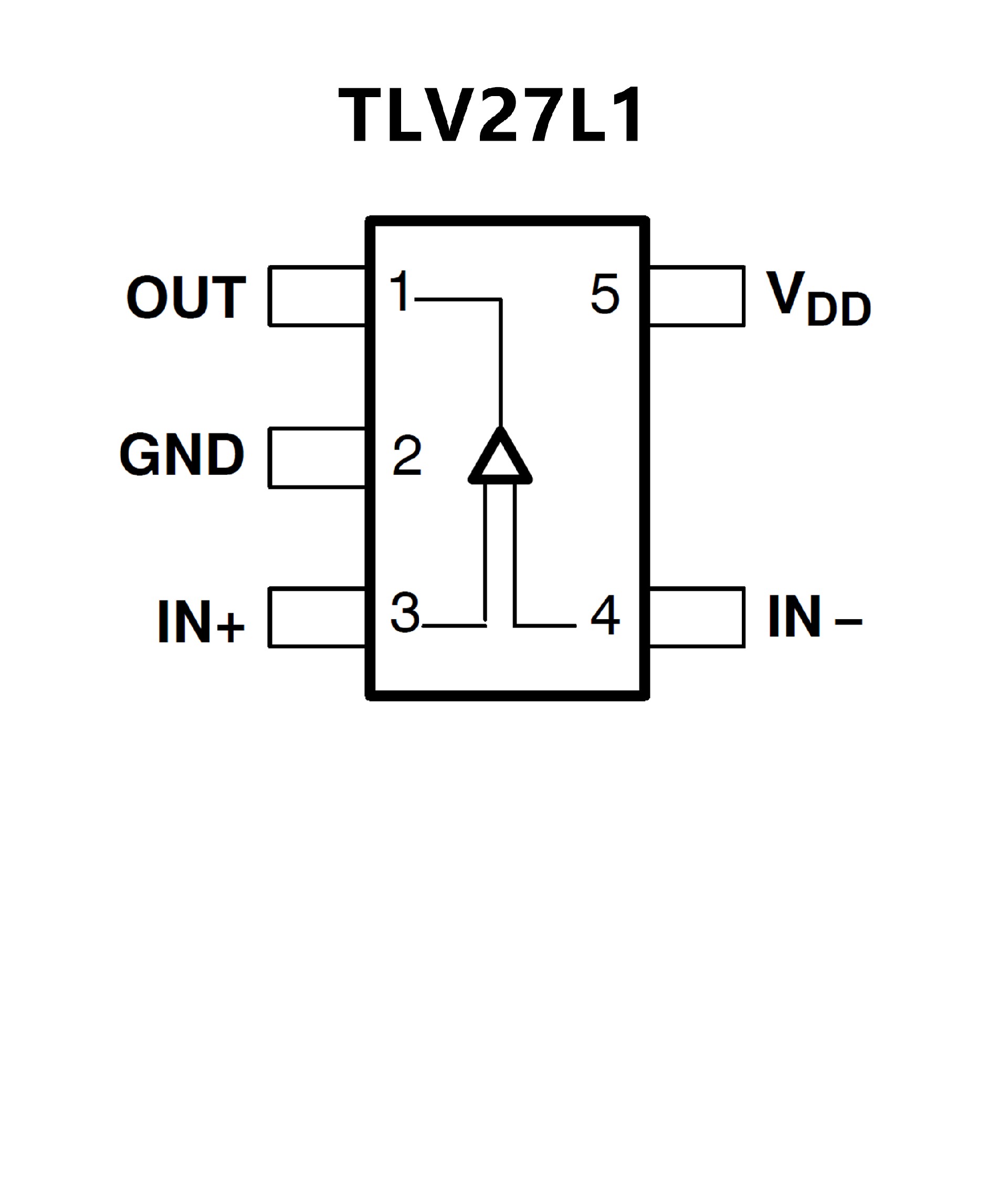

5 Pin SOT-23 (TLV27L1)
