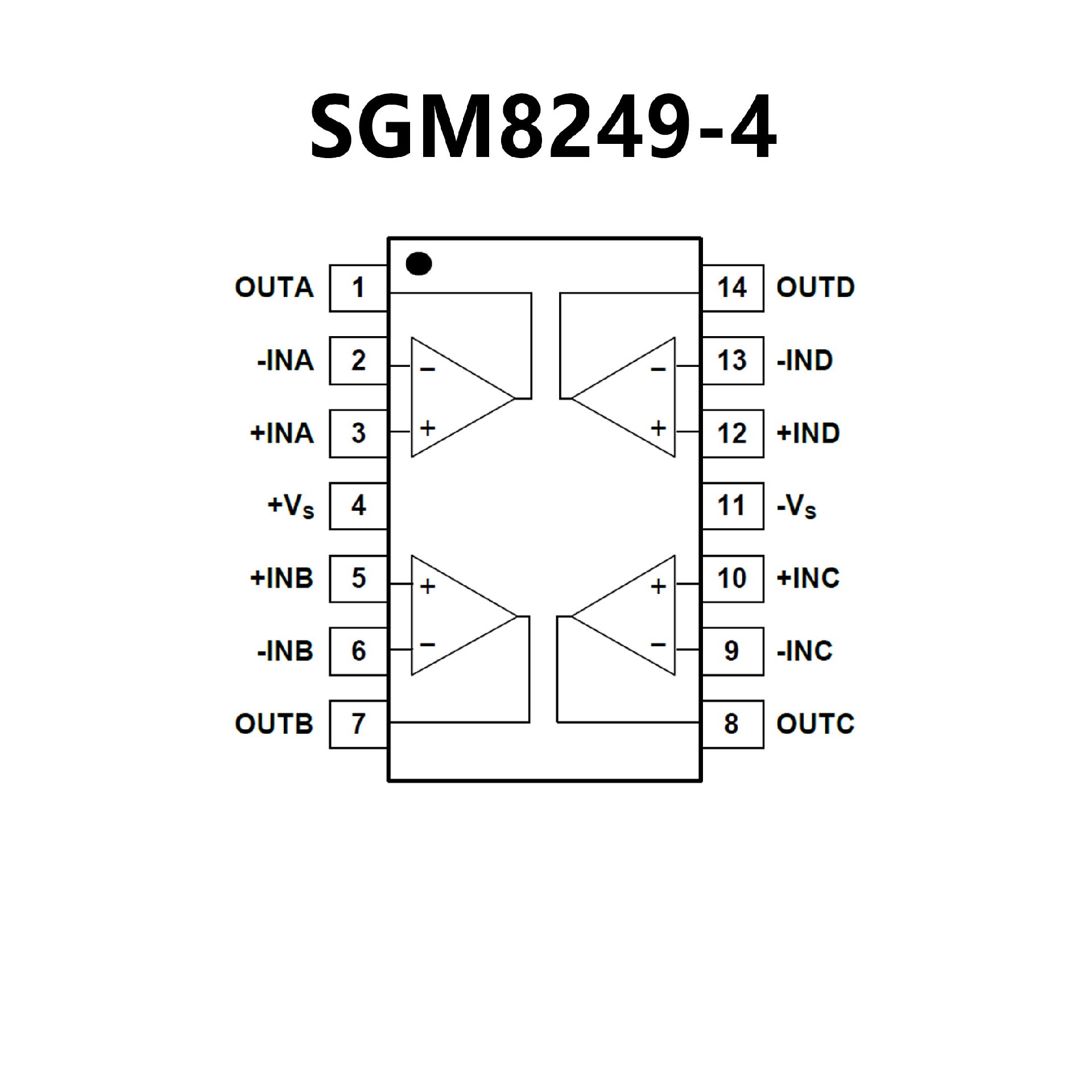

SGM8249-4.pdf? Low Offset Voltage: 2μV (TYP), 12μV (MAX)
? Rail-to-Rail Output Swing
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 140dB (TYP)a
? Input Voltage Noise Density: 12nV/Hz at 1kHz
? Gain-Bandwidth Product: 8MHz
? Low Supply Current: 3.2mA (TYP)
? Overload Recovery Time: 0.7μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packagesa

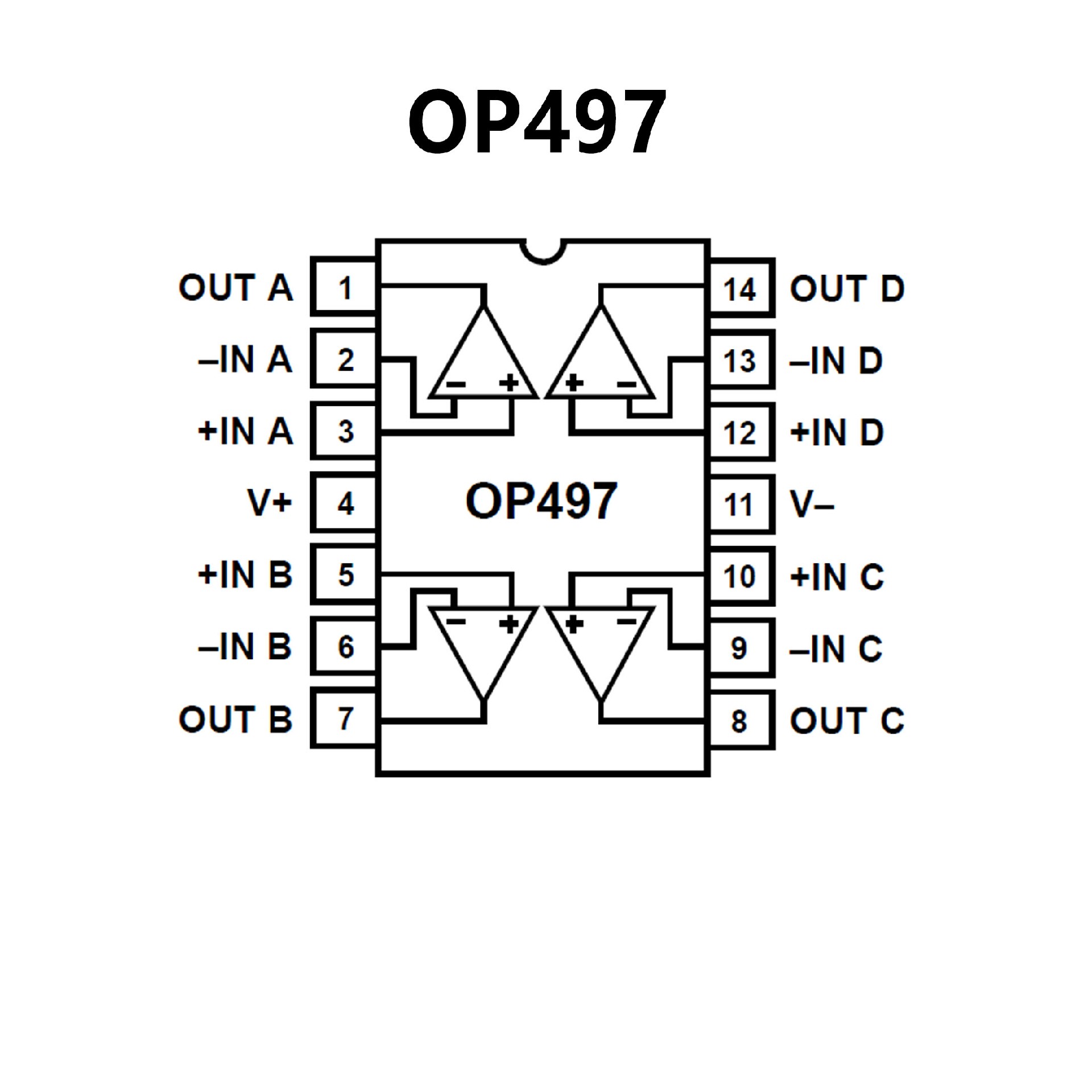

? Low offset voltage: 75 μV maximum
? Low offset voltage drift: 1.0 μV/°C maximum
? Very low bias current
? 25°C: 150 pA maximum
? ?40°C to +85°C: 300 pA maximum
? Very high open-loop gain: 2000 V/mV minimum
? Low supply current (per amplifier): 625 μA maximum
? Operates from ±2 V to ±20 V supplies
? High common-mode rejection: 114 dB minimum
