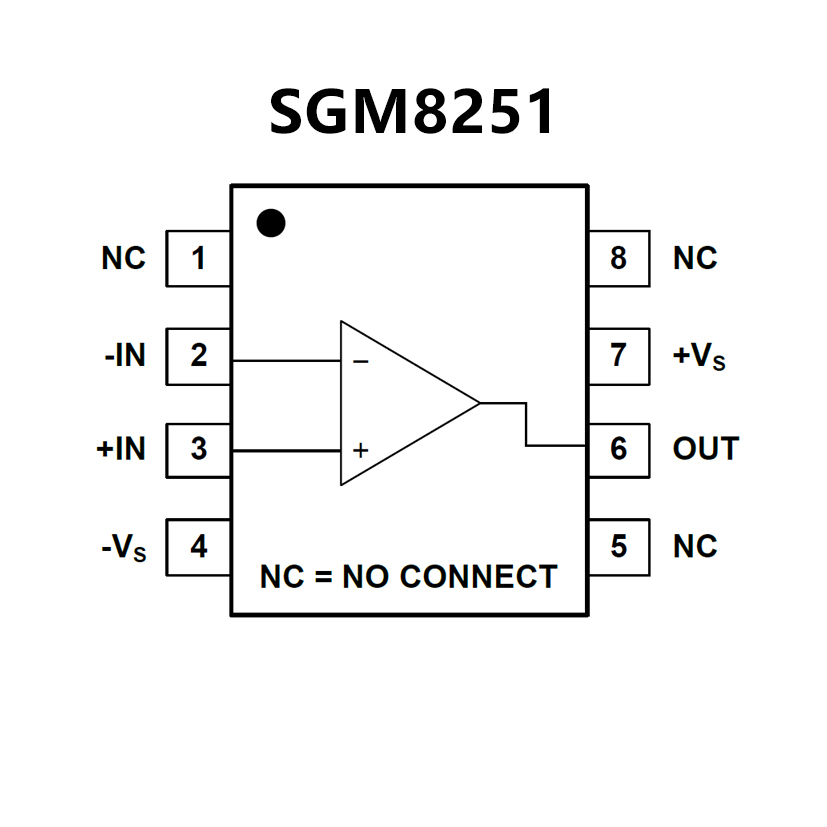

SGM8251.pdf? Low Offset Voltage: 18μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.4μVP-P
? Input Voltage Noise Density: 20nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.8MHz
? Low Supply Current: 450μA (TYP)
? Overload Recovery Time: 3μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and
MSOP-8 Packages

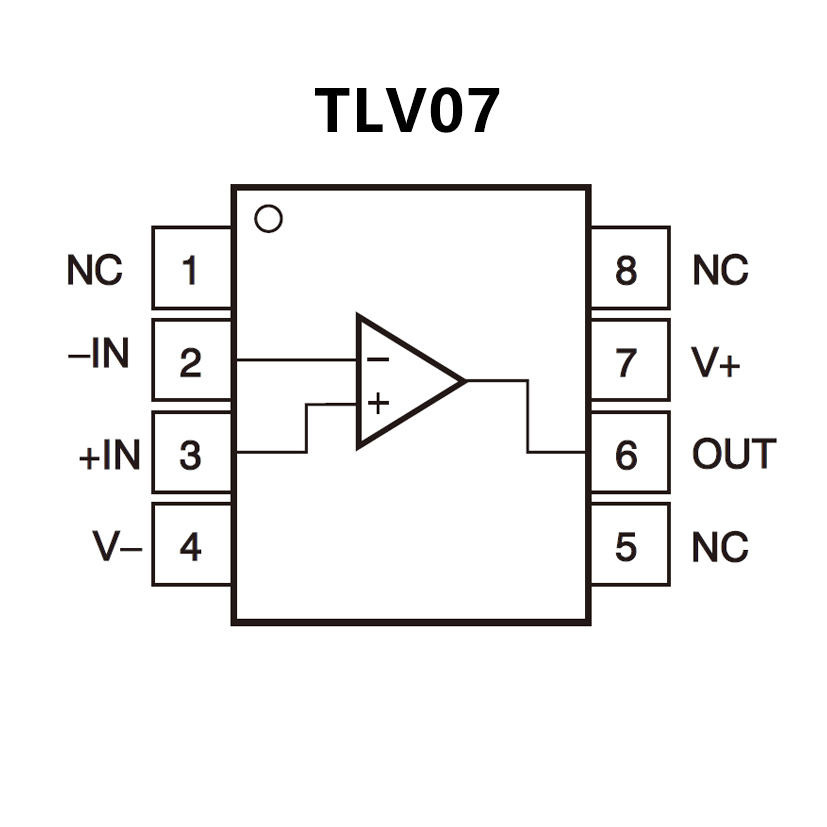

? Low Offset Voltage: 100 μV (Maximum)
? Rail-to-Rail Output
? Low Noise: 19 nV / √Hz
? Unity-Gain Stable
? RFI Filtered Inputs
? Input Range Includes Negative Supply
? Rail-to-Rail Output
? Gain Bandwidth: 1 MHz
? Low Quiescent Current: 930 μA
? Full Industrial Temperature Range:
–40°C to +125°C
? Offered in the Industry-Standard 8-Pin SOIC
Package
