High Precision Operational Amplifier, SGM8252 Replace OPA2277.
SGM8252
SGM8252.pdf
SGM8252.pdfFEATURES
? Low Offset Voltage: 5μV (TYP)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.4μVP-P
? Input Voltage Noise Density: 20nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.8MHz
? Low Supply Current: 460μA/Amplifier (TYP)
? Overload Recovery Time: 3μs

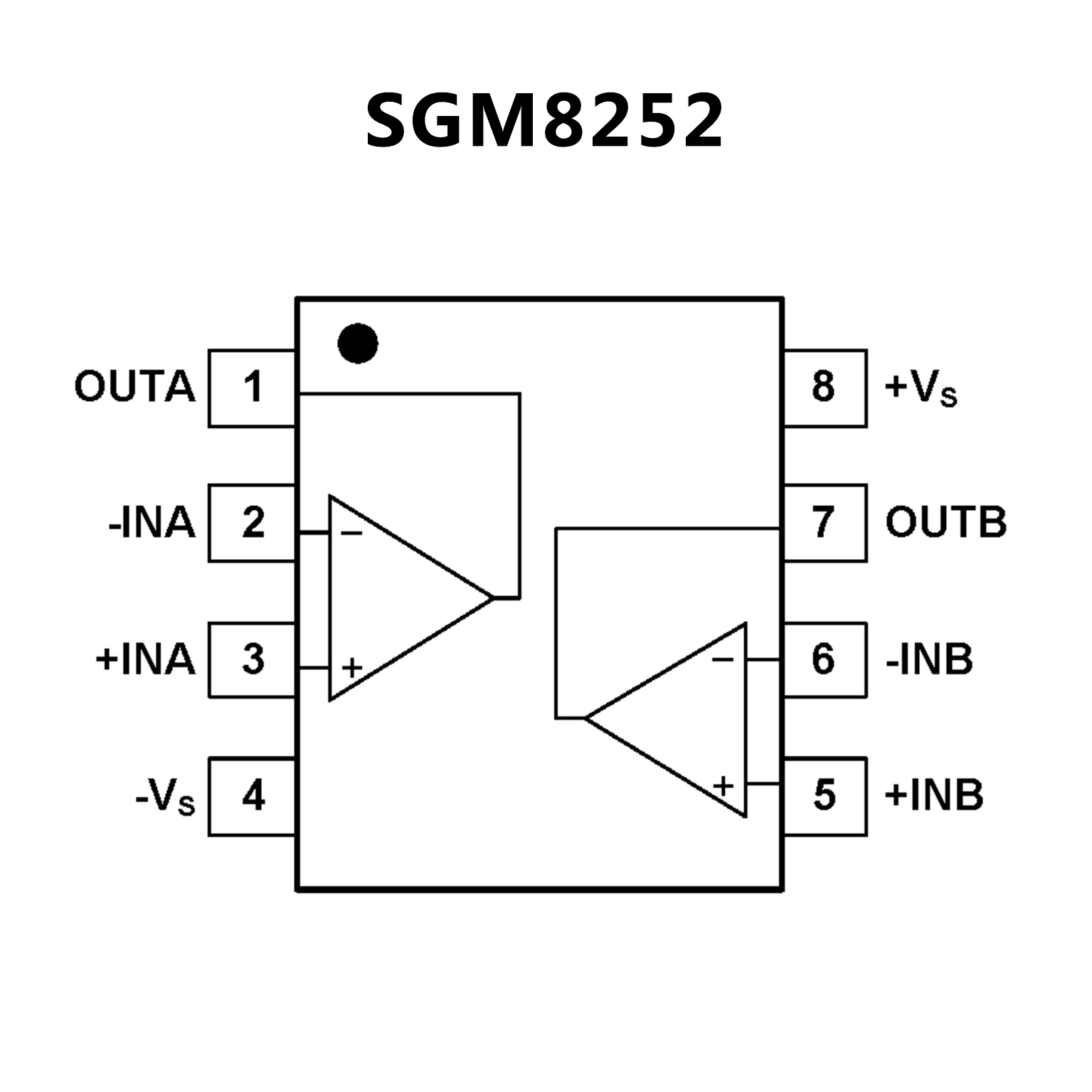

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Ultralow Offset Voltage: 10μV
? Ultralow Drift: ±0.1 μV/°C
? High Open-Loop Gain: 134 dB
? High Common-Mode Rejection: 140 dB
? High Power Supply Rejection: 130 dB
? Low Bias Current: 1-nA maximum
? Wide Supply Range: ±2 V to ±18 V
? Low Quiescent Current: 800 μA/amplifier
? Single, Dual, and Quad Versions

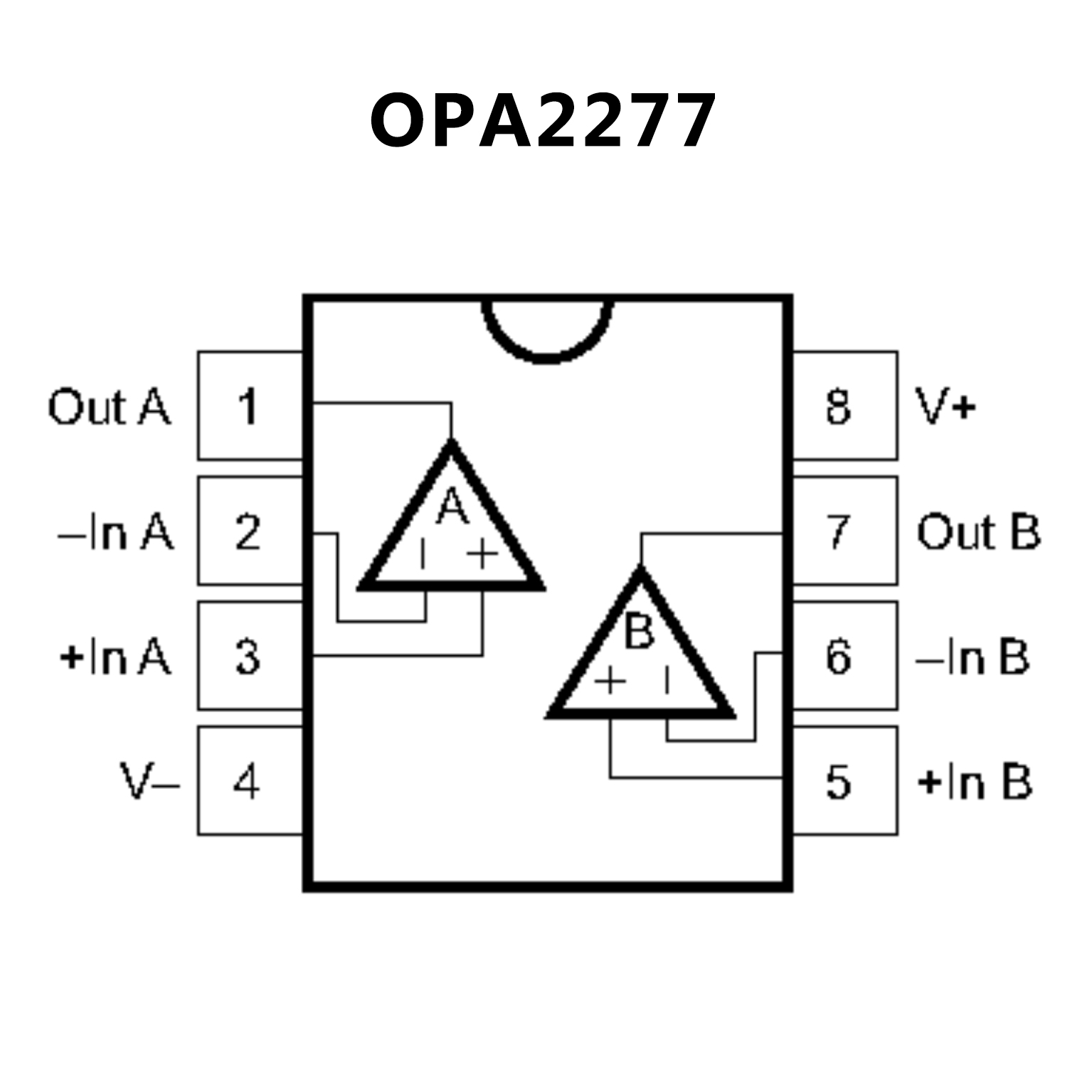

PIN CONFIGUTION
