SGM8262.pdf? Dual Operational Amplifiers
? Voltage Feedback
? High Open-Loop Gain: 130dB
? Unity-Gain Stable
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? Rail-to-Rail OutputHigh Linear Output Current:
? 150mA Peak into 16Ω on ±5V Supplies
While Maintaining -70dBc SFDR
? Ultra-Low Noise:Hz Voltage Noise Density at
1kHz Hz Current Noise Density at 1kHz
? High Speed:
30MHz Bandwidth (G = +1, -3dB)
40V/μs Slew Rate (RLOAD = 32Ω)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 Package
? (VS = ±15, TA = 25°C, Typical Values Unless Specified.)
? Wide Supply Voltage Range 2.5 V to 32 V
? Output Current +65 mA/?100 mA
? Gain Bandwidth Product 20 MHz
? Slew Rate 18 V/μs
? Capacitive Load Tolerance Unlimited
? Input Common-Mode Voltage 0.3-V Beyond Rails
? Input Voltage Noise 15 nV/√Hz
? Input Current Noise 1.3 pA/√Hz
? Supply Current/Channel 1.1 mA
? Distortion THD+Noise ?86 dB
? Temperature Range ?40°C to 125°C
? Tested at ?40°C, 25°C and 125°C at 2.7 V, ±5 V,±15 V.

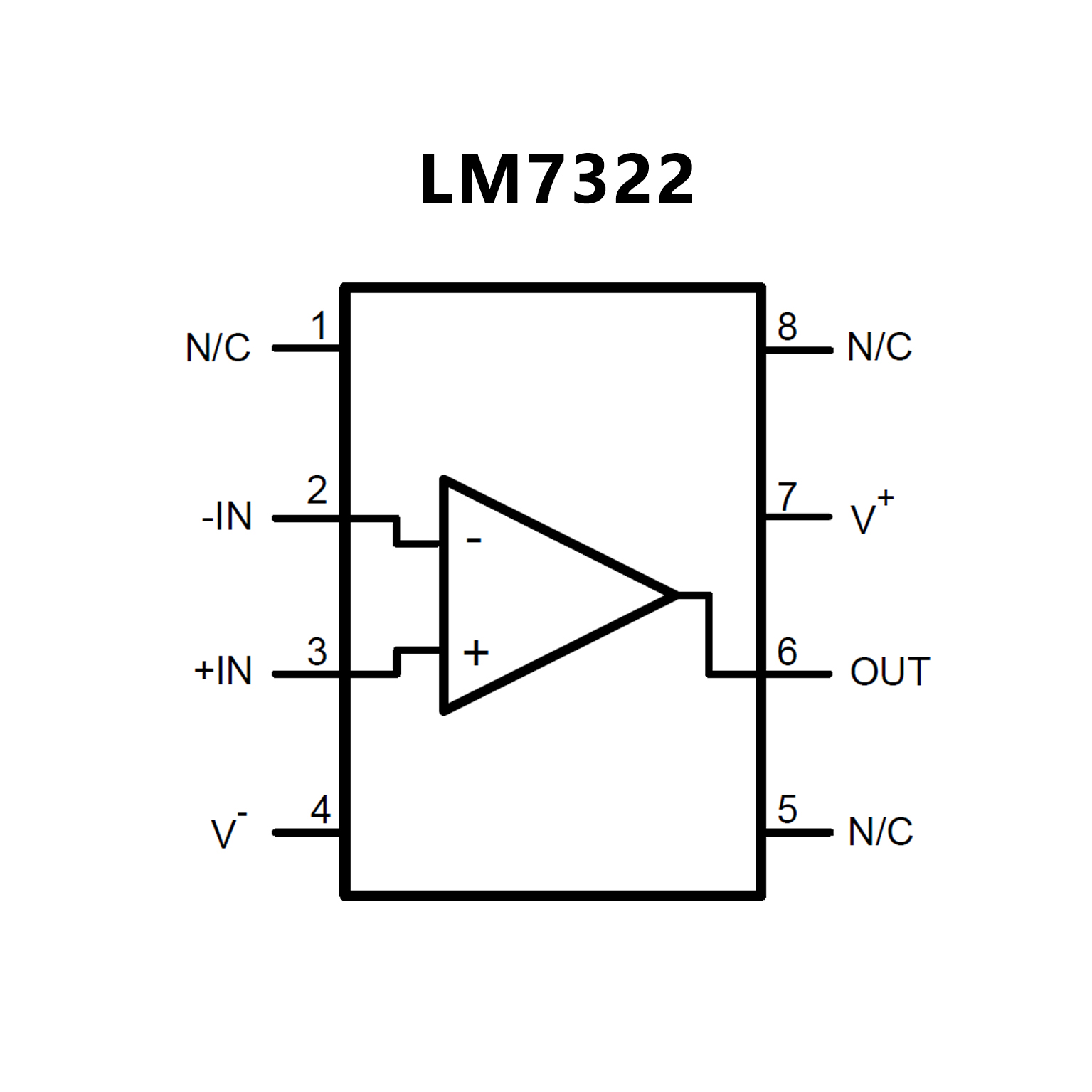

? LM732xx are Automotive Grade Products that are
AEC-Q100 Grade 1 Qualified
