Low Noise, Precision, High Voltage, Rail-to-Rail I/O Operational Amplifier,SGM8270-2 Replace LMC6482.
SGM8270-2
SGM8270-2.pdf
SGM8270-2.pdfFEATURES
? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

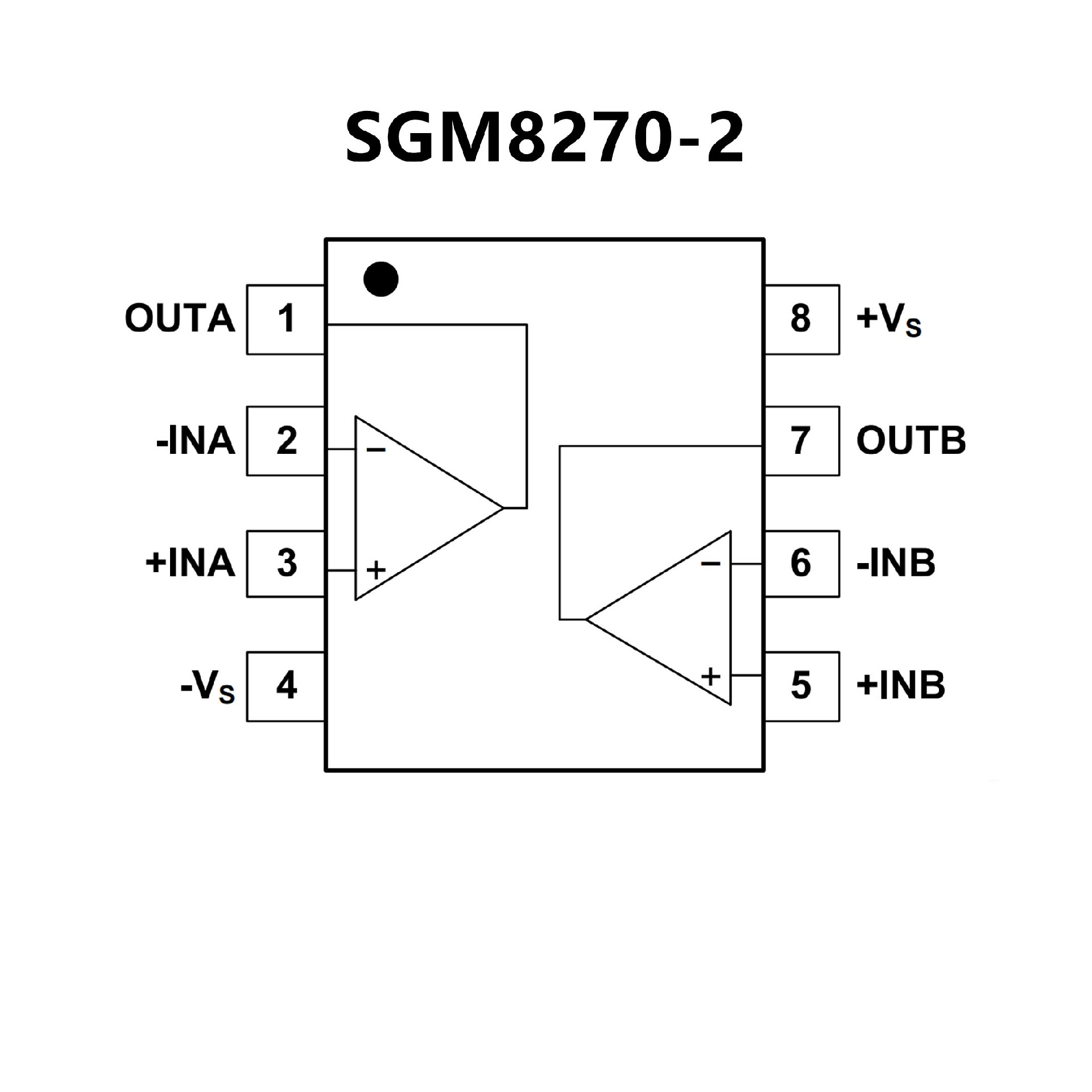

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low input offset voltage: 2 mV max.
? Rail-to-rail input and output
? Excellent CMRR : 98 dB @ 16 V
? Low current consumption: 900 μA max.
? Gain bandwidth product: 2.7 MHz
? Low supply voltage: 2.7 - 16 V
? Unity gain stable
? Low input bias current: 50 pA max.
? High ESD tolerance: 4 kV HBM
? Extended temp. range: -40 °C to +125 °C

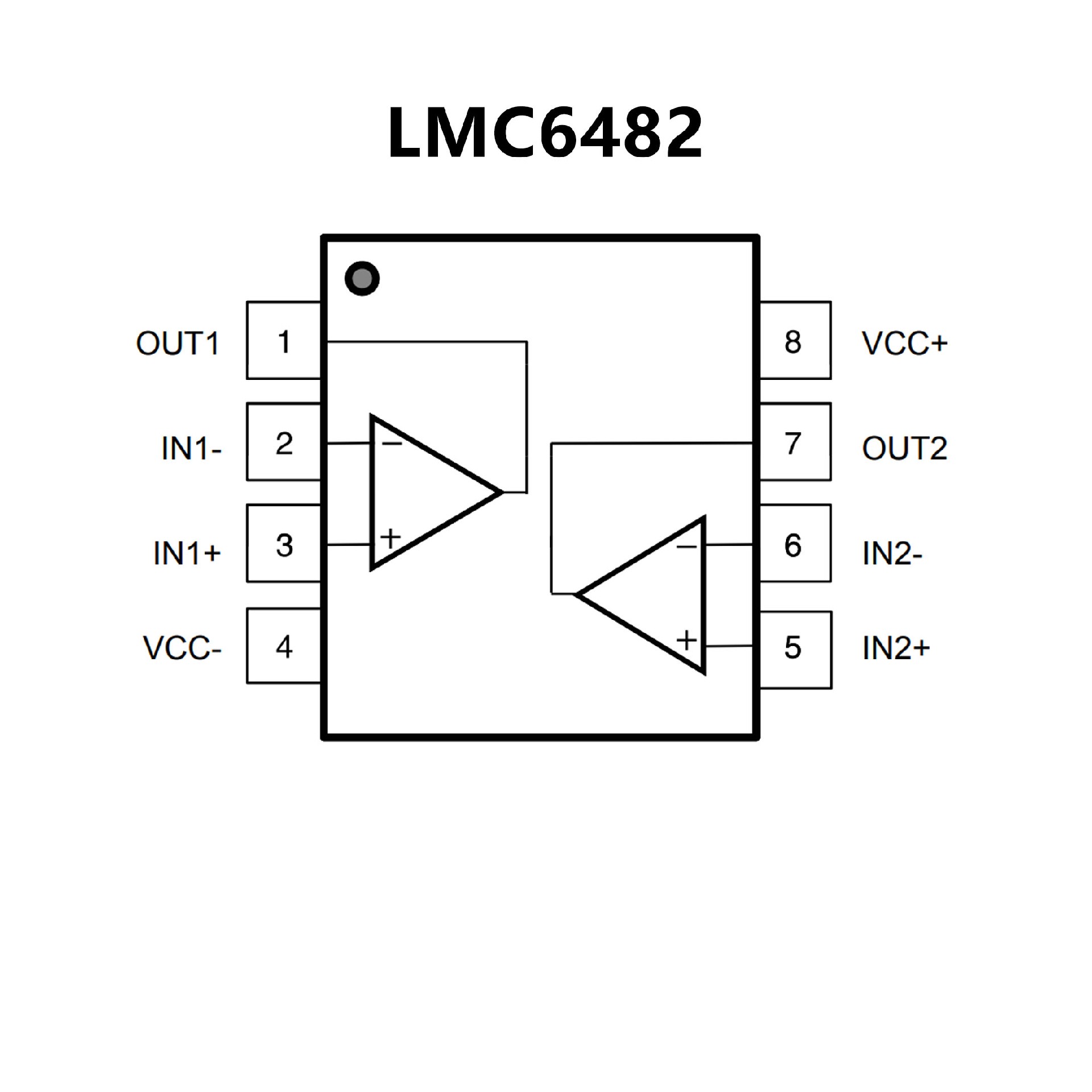

PIN CONFIGUTION
