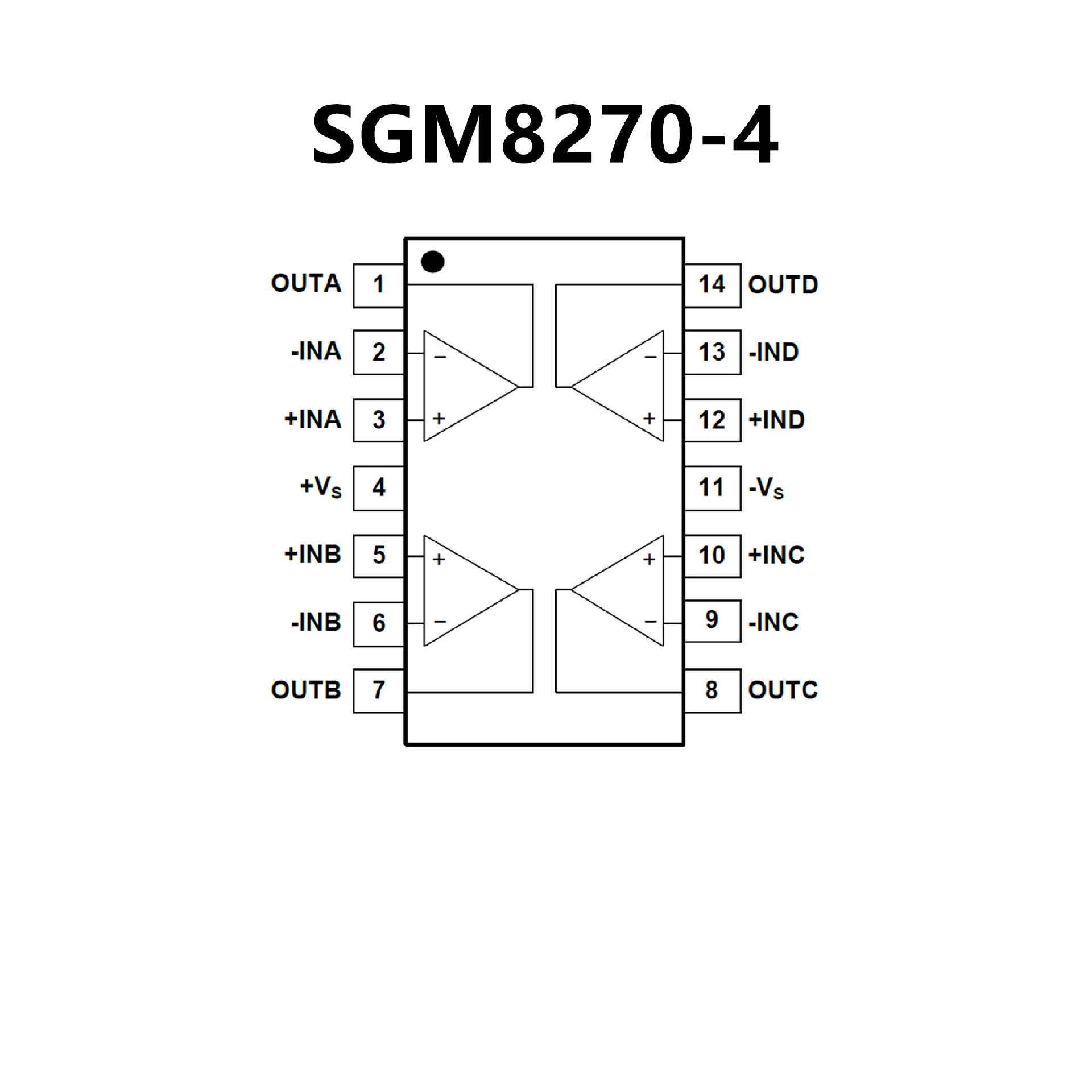

SGM8270-4.pdf? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages
? Low Voltage, Single Supply Operation
(+1.8 V and Ground to +12 V and Ground)
? Input Voltage Range Includes both Supply Rails
? Output Voltage Swings within 50 mV of both Rails
? No Phase Reversal on the Output
for Over?driven Input Signals
? High Output Current (ISC = 80 mA, Typ)
? Low Supply Current (ID = 0.9 mA, Typ)
? 600Ω Output Drive Capability
? Extended Operating Temperature Ranges
(?40° to +105°C and ?55° to +125°C)
? Typical Gain Bandwidth Product = 2.2 MHz
? NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q100
Qualified and PPAP Capable
? These Devices are Pb?Free and are RoHS Compliant
