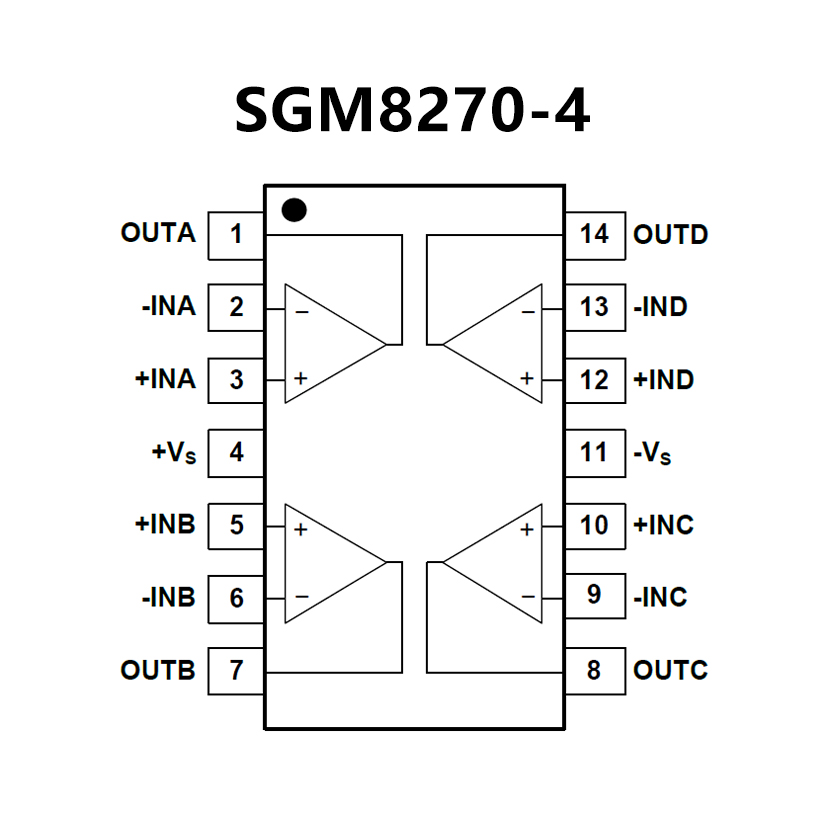

SGM8270-4.pdf? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating
Temperature Range
? Available in Green SOIC-14
and TSSOP-14 Packages

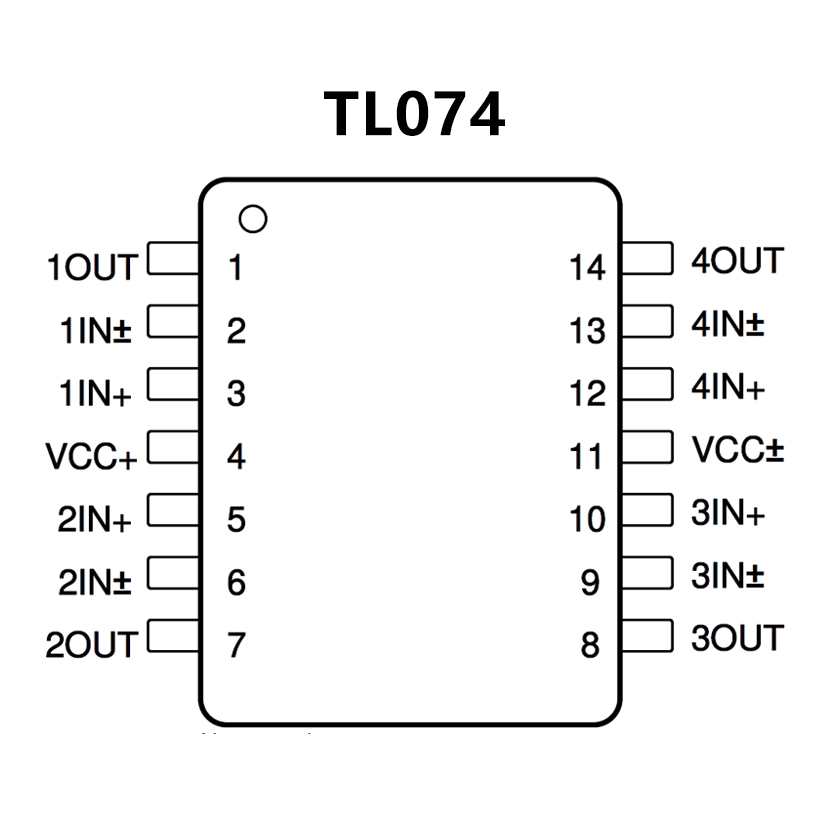

? High slew rate: 20 V/μs (TL07xH, typ)
? Low offset voltage: 1 mV (TL07xH, typ)
? Low offset voltage drift: 2 μV/°C
? Low power consumption: 940 μA/ch (TL07xH, typ)
? Wide common-mode and differential
voltage ranges
Common-mode input voltage range
includes VCC+
? Low input bias and offset currents
? Low noise:
Vn = 18 nV/√Hz (typ) at f = 1 kHz
? Output short-circuit protection
? Low total harmonic distortion: 0.003% (typ)
? Wide supply voltage:
±2.25 V to ±20 V, 4.5 V to 40
