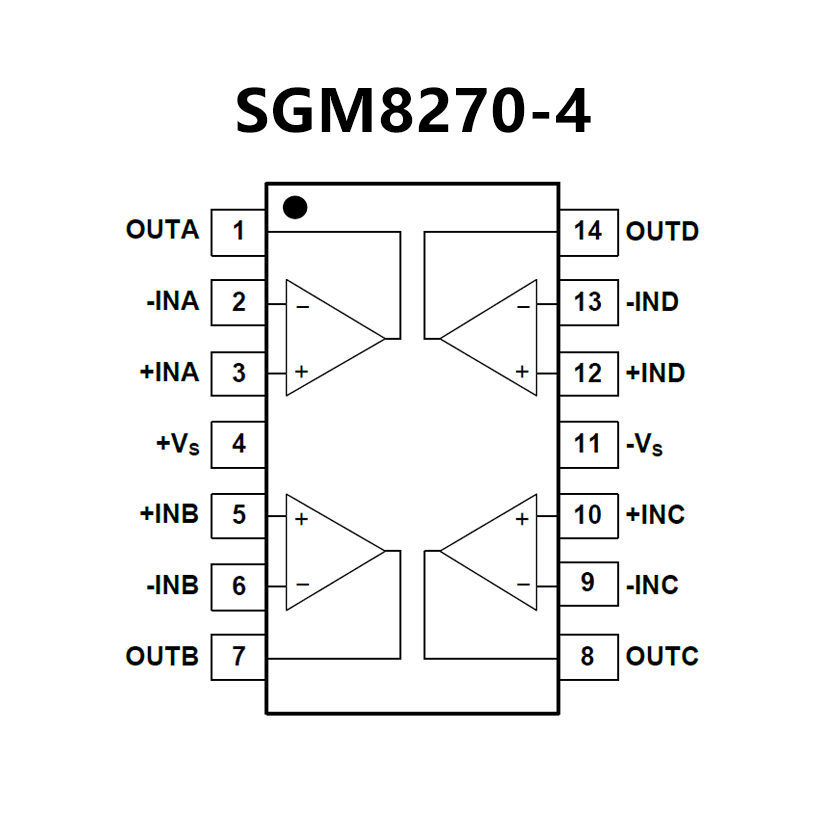

SGM8270-4XS14G.pdf? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

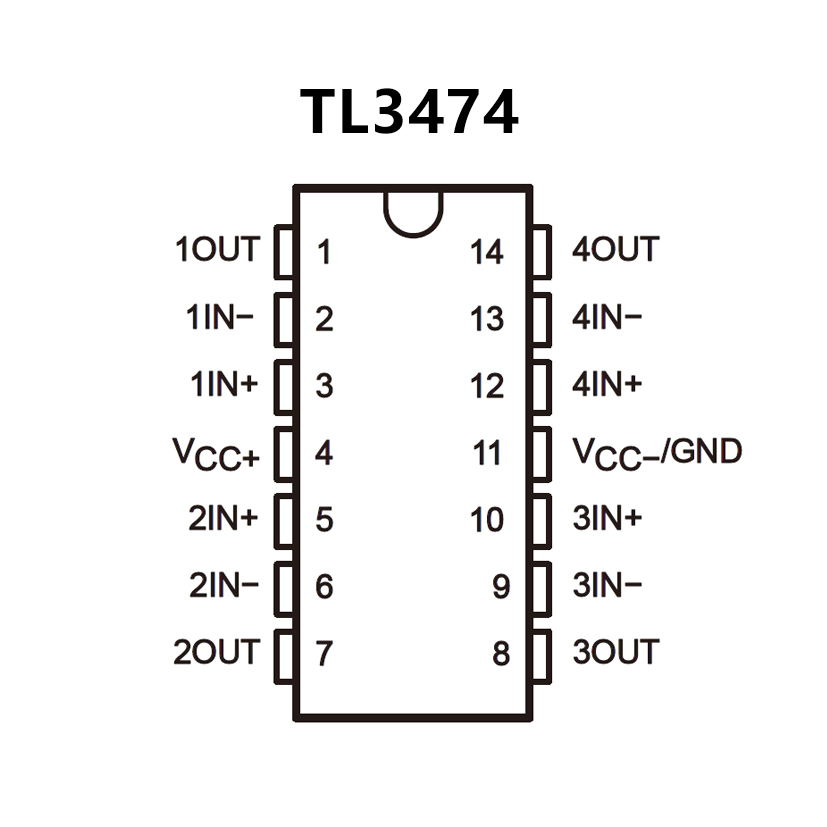

? Low Offset . . . 3 mV (Max) for A-Grade
? Wide Gain-Bandwidth Product . . . 4 MHz
? High Slew Rate . . . 13 V/μs
? Fast Settling Time . . . 1.1 μs to 0.1%
? Wide-Range Single-Supply Operation
. . . 4 V to 36 V
? Wide Input Common-Mode Range Includes
Ground (VCC?)
? Low Total Harmonic Distortion . . . 0.02%
? Large-Capacitance Drive Capability
. . . 10,000 pF
? Output Short-Circuit Protection
? Alternative to MC33074/A and MC34074/A
