Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-4XS14G Replace TS274AIDT.
SGM8270-4XS14G
SGM8270-4XS14G.pdf
SGM8270-4XS14G.pdfFEATURES
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

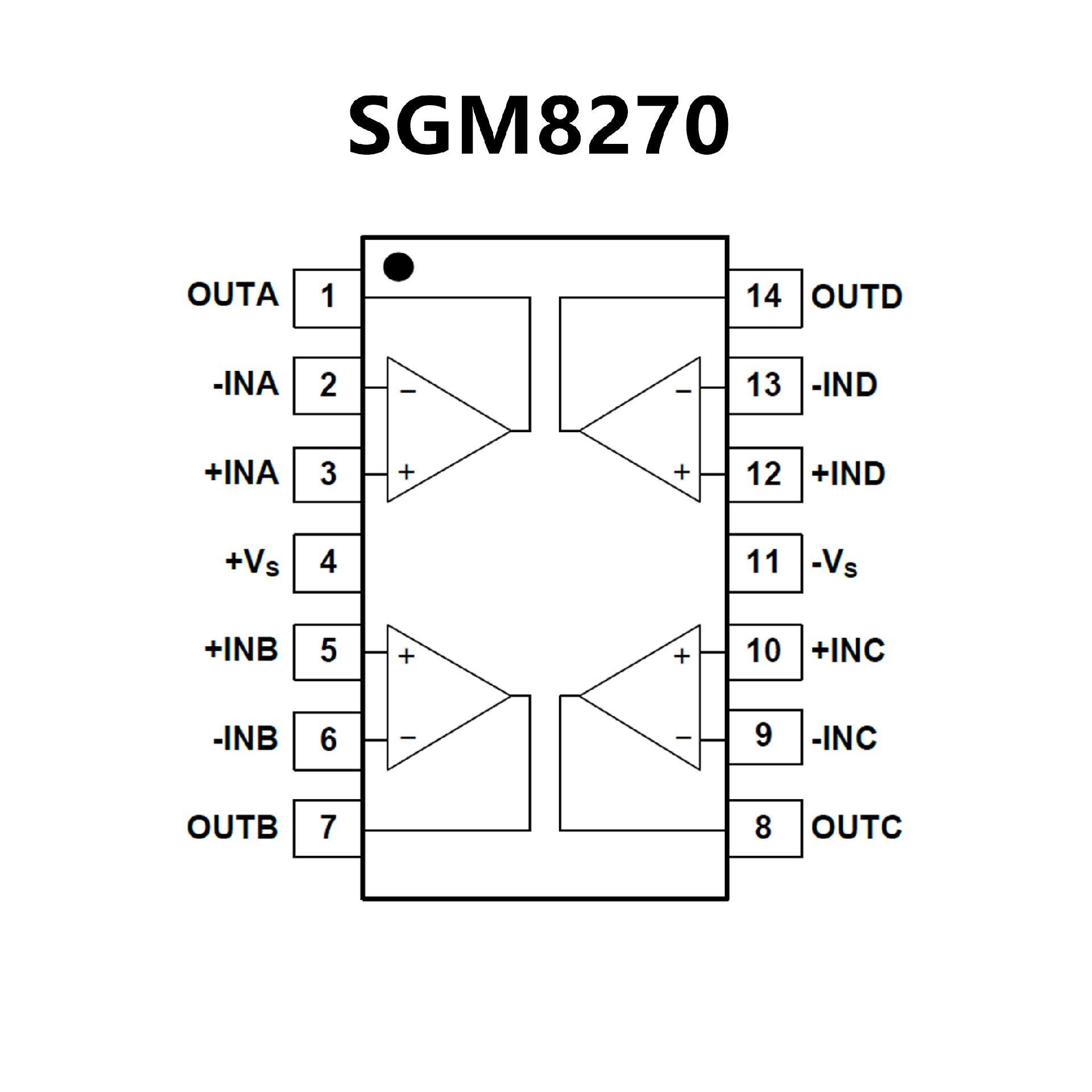

PIN CONFIGUTION
優勢替代
FEATURES
? Output voltage can swing to ground
? Excellent phase margin on capacitive loads
? Gain bandwidth product: 3.5 MHz
? Unity gain stable
? Two input offset voltage selections

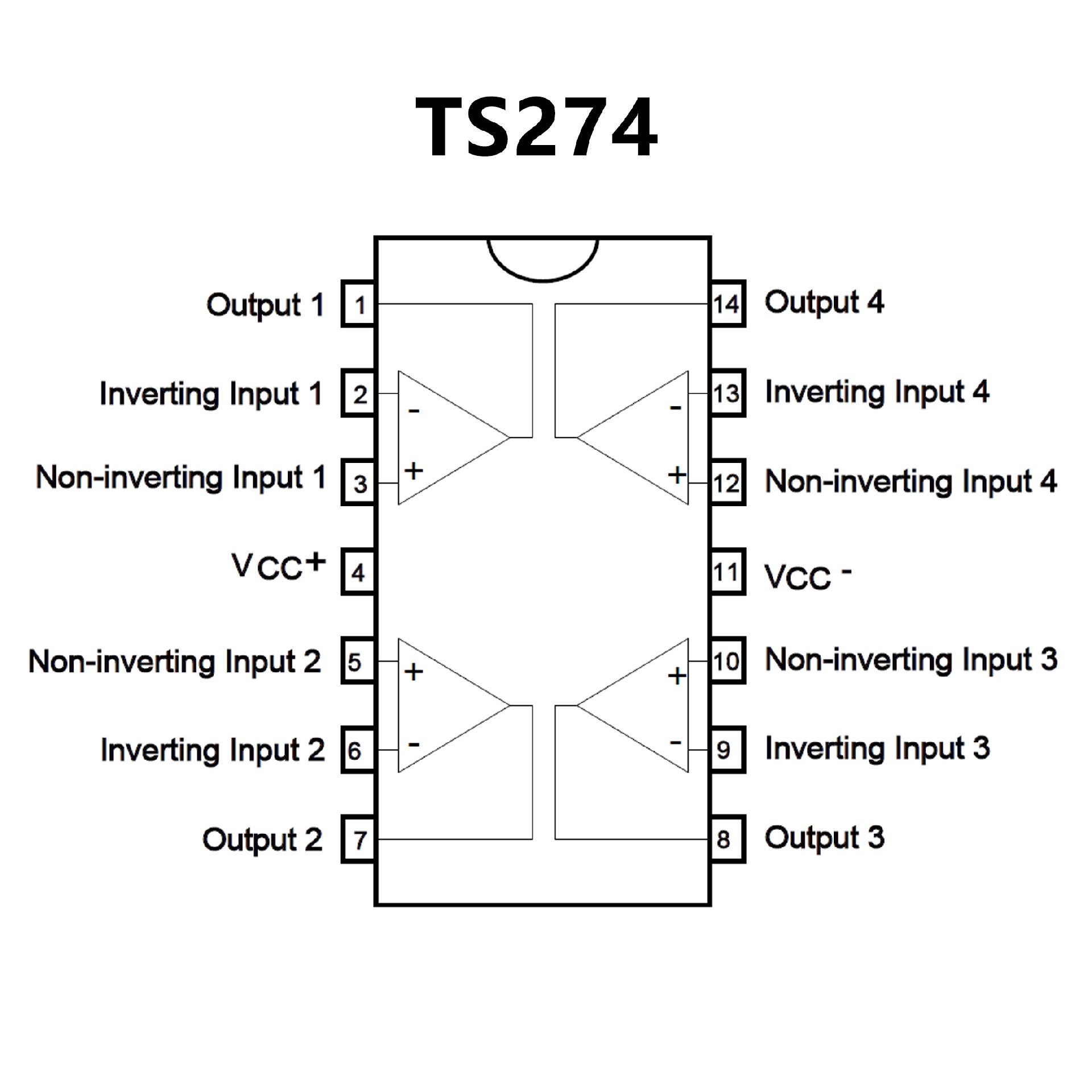

PIN CONFIGUTION
