Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-4XS14G Replace TS514AIDT.
SGM8270-4XS14G
SGM8270-4XS14G.pdf
SGM8270-4XS14G.pdfFEATURES
? Wide Input Common Mode and
Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

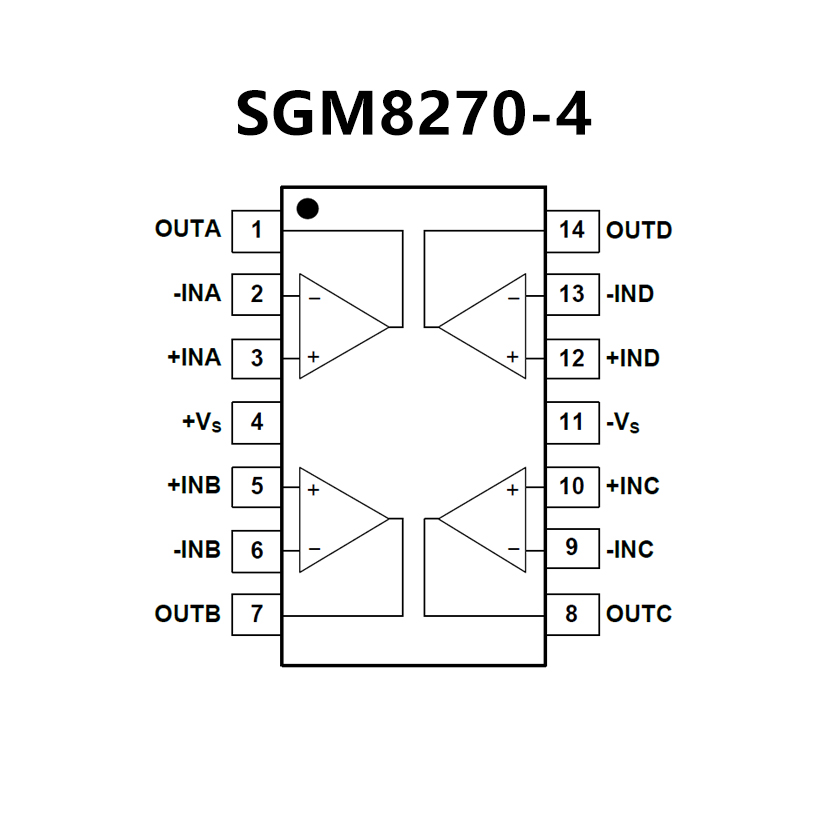

PIN CONFIGUTION
優勢替代
FEATURES
? Low input offset voltage: 500 μV max.
? Low power consumption
? Short-circuit protection
? Low distortion, low noise
? High gain bandwidth product
? High channel separation
? ESD protection 2 kV

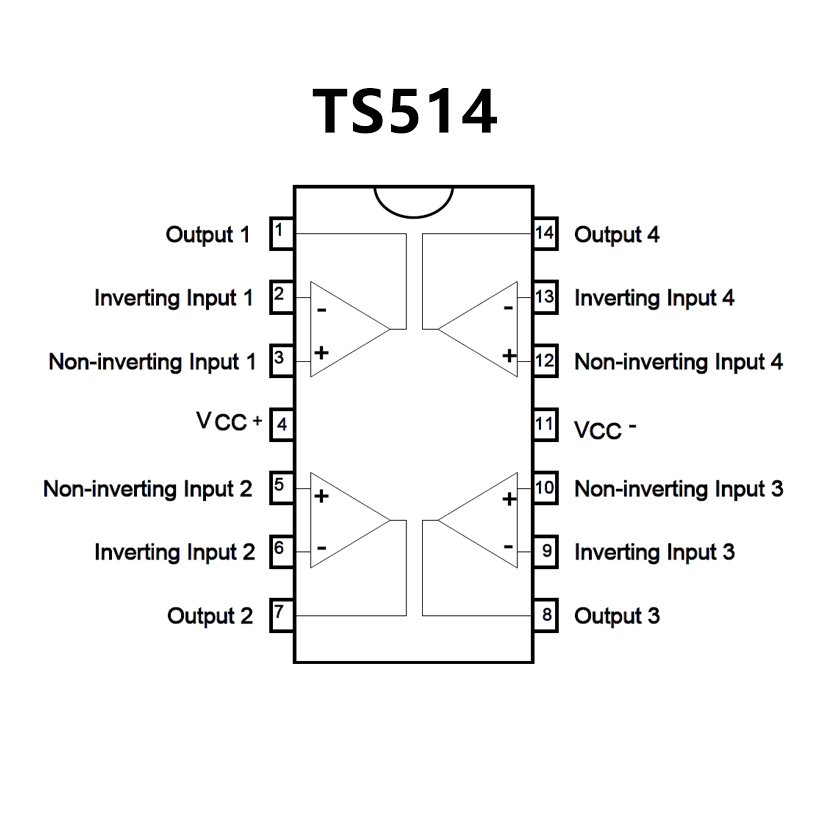

PIN CONFIGUTION
