Low Noise,Precision,High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-4 Replace uPC4744.
SGM8270-4XS14G
SGM8270-4XS14G.pdf
SGM8270-4XS14G.pdfFEATURES
? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating
Temperature Range
? Available in Green SOIC-14
and TSSOP-14 Packages

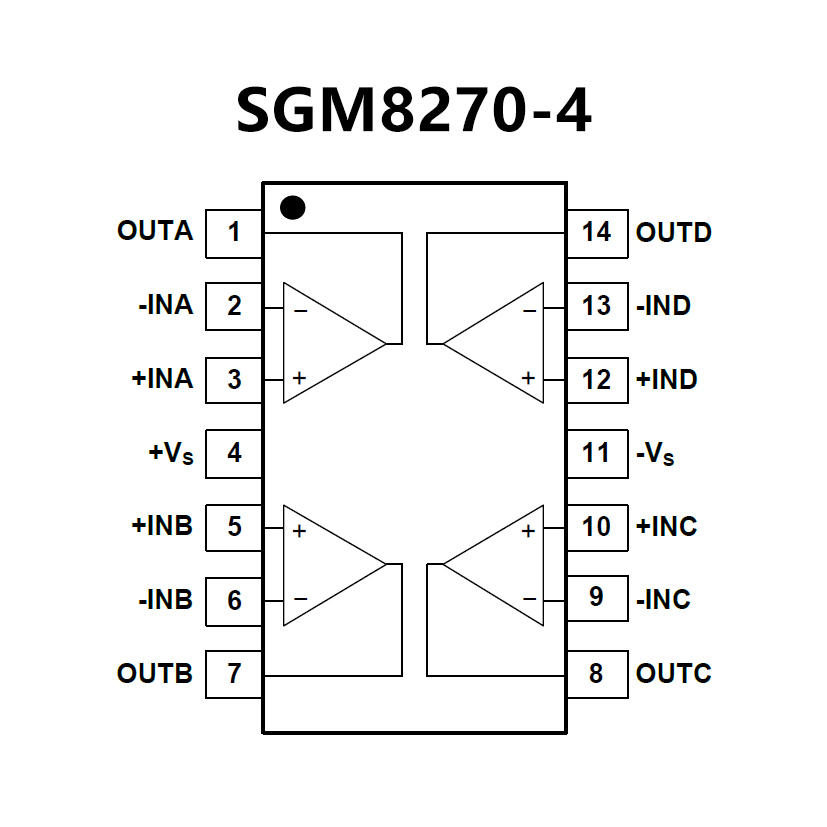

PIN CONFIGUTION
優勢替代
FEATURES
? High slew rate: 8.5 V/μs TYP.
(V+ = +5 V, V– = GND)
? Wide gain band width product: 3.5
MHz TYP. (V+ = +5 V, V– = GND)
? Wide supply voltage range: +3 V to +32 V
? Wide output voltage swing
? Common mode input voltage range includes V–
? Internal frequency compensation
? Output short circuit protection

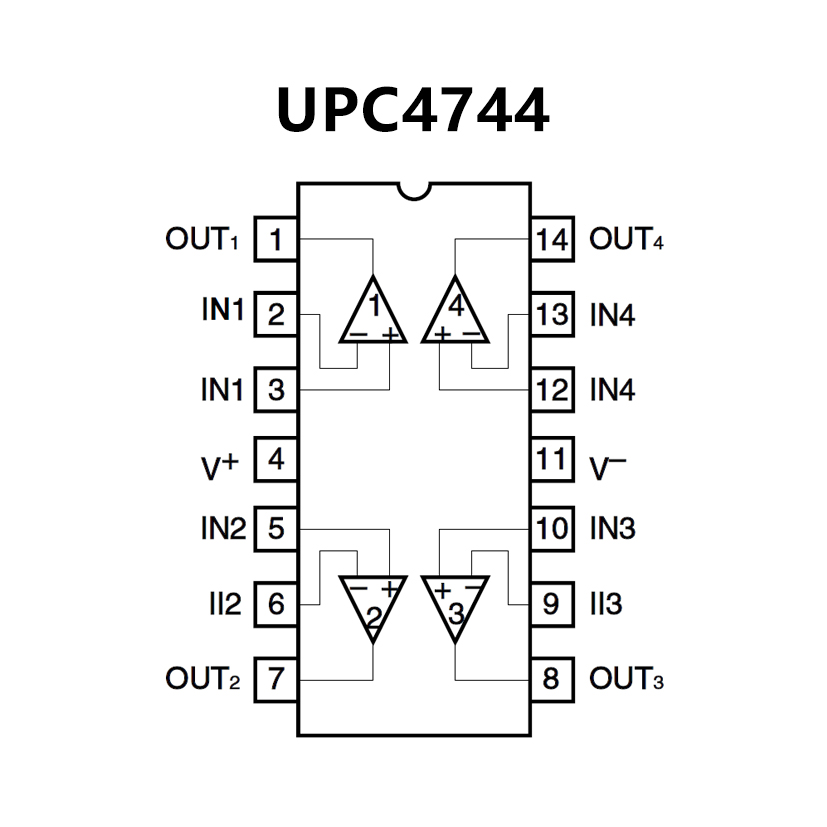

PIN CONFIGUTION
