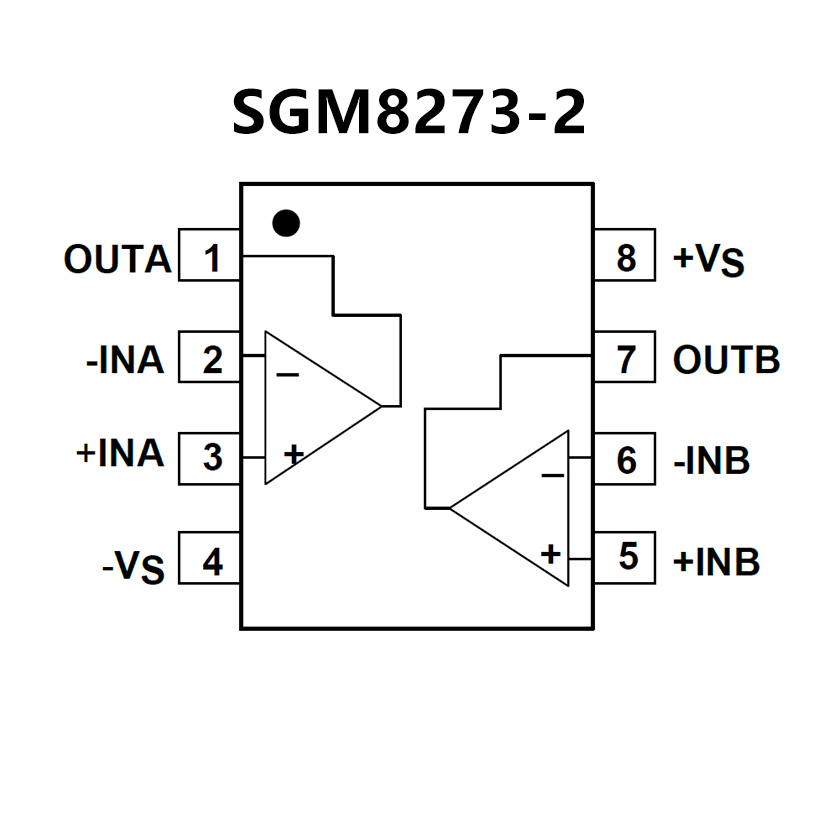

SGM8273-2.pdf? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package

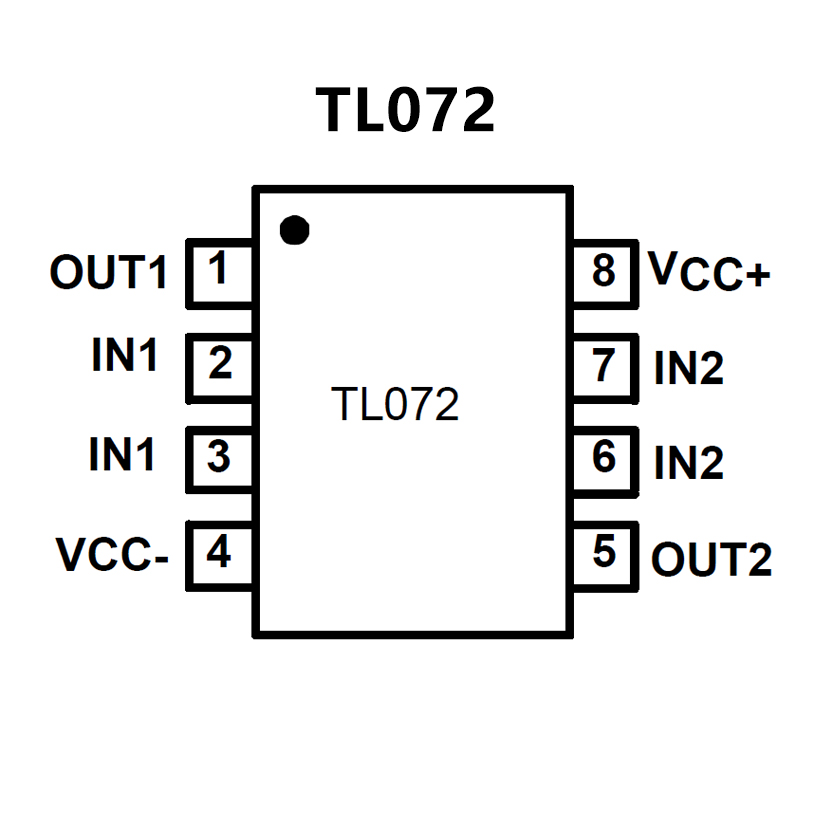

? Low Power Consumption
? Wide Common-Mode and
Differential Voltage Ranges
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Low Total Harmonic Distortion…0.003% Typ
? Low Noise Vn= 18nV ΗΖ Typ at f=1kHz
? High Input Impedance…JFET-Input Stage
? Internal Frequency Compensation
? Latch-Up-Free Operation
? High Slew Rate…13V/μs Typ
? Common-Mode Input Voltage Range Includes VCC+
? SOP-8L: Available in “Green” Molding Compound
(No Br, Sb)
? Lead Free Finish/ RoHS Compliant (Note 1)
