SGM8273-2XS8G.pdf? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/ Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages

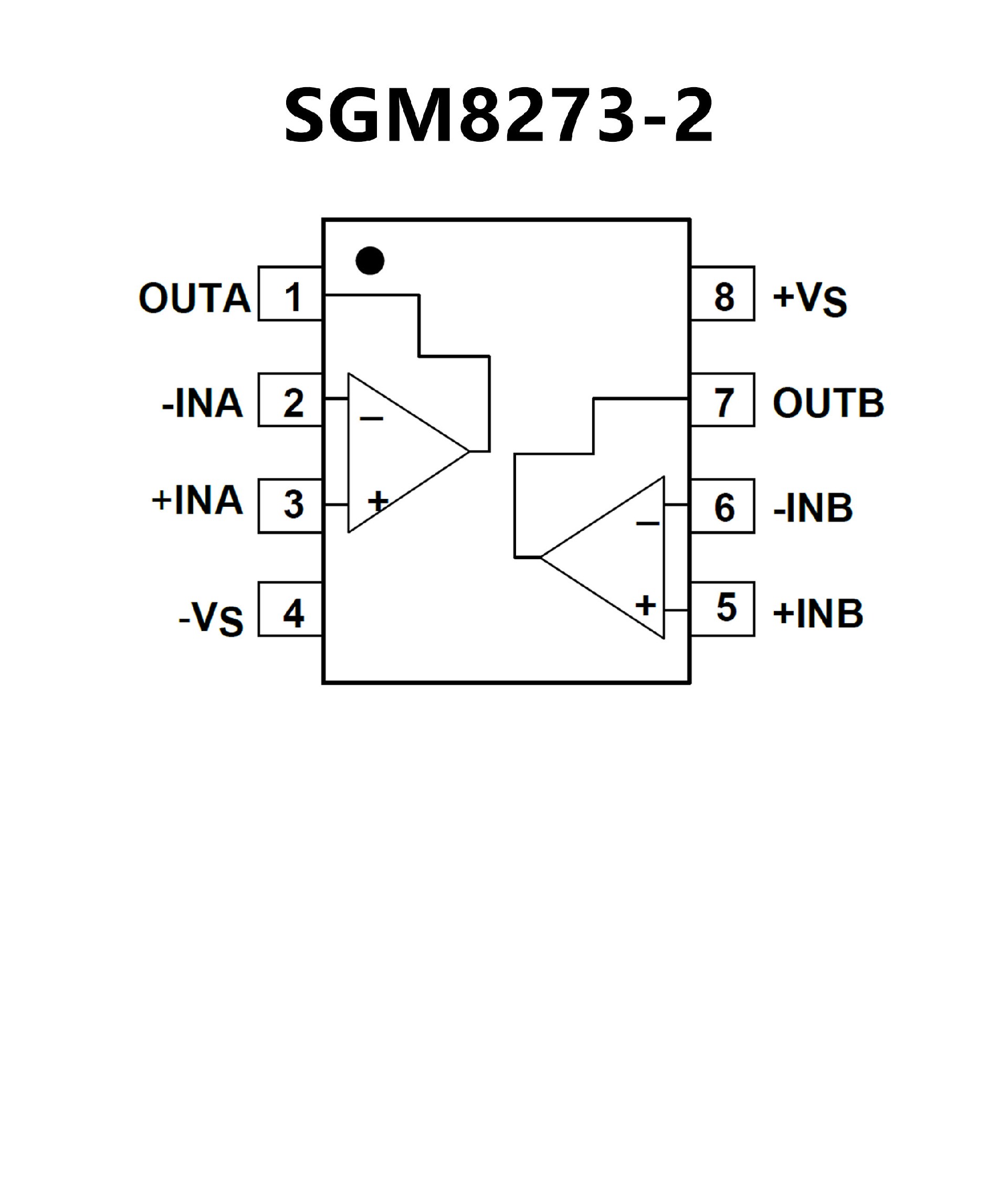

SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package
? Output Swing Includes Both Supply Rails
? Extended Common-Mode Input Voltage
Range . . . 0 V to 4.25 V (Min) at 5-V Single
Supply
? No Phase Inversion
? Low Noise . . . 16 nV/√Hz Typ at f = 1 kHz
? Low Input Offset Voltage

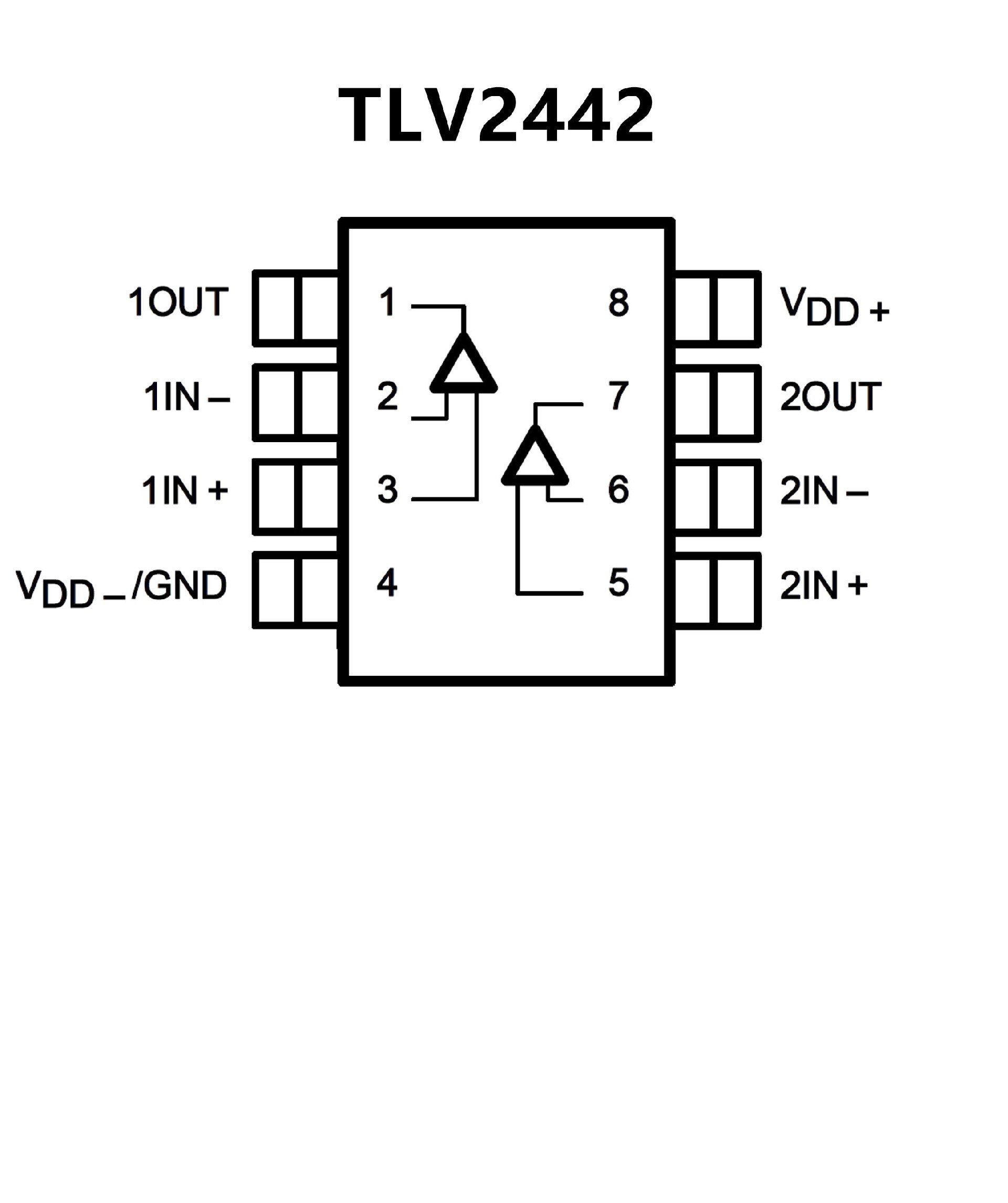

950 μV Max at TA = 25°C (TLV244xA)
? Low Input Bias Current . . . 1 pA Typ
? 600-Ω Output Drive
? High-Gain Bandwidth . . . 1.8 MHz Typ
? Low Supply Current . . . 750 μA Per Channel
Typ
? Macromodel Included
? Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control/Print Support
Qualification to Automotive Standards
