SGM8273-4.pdf? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package

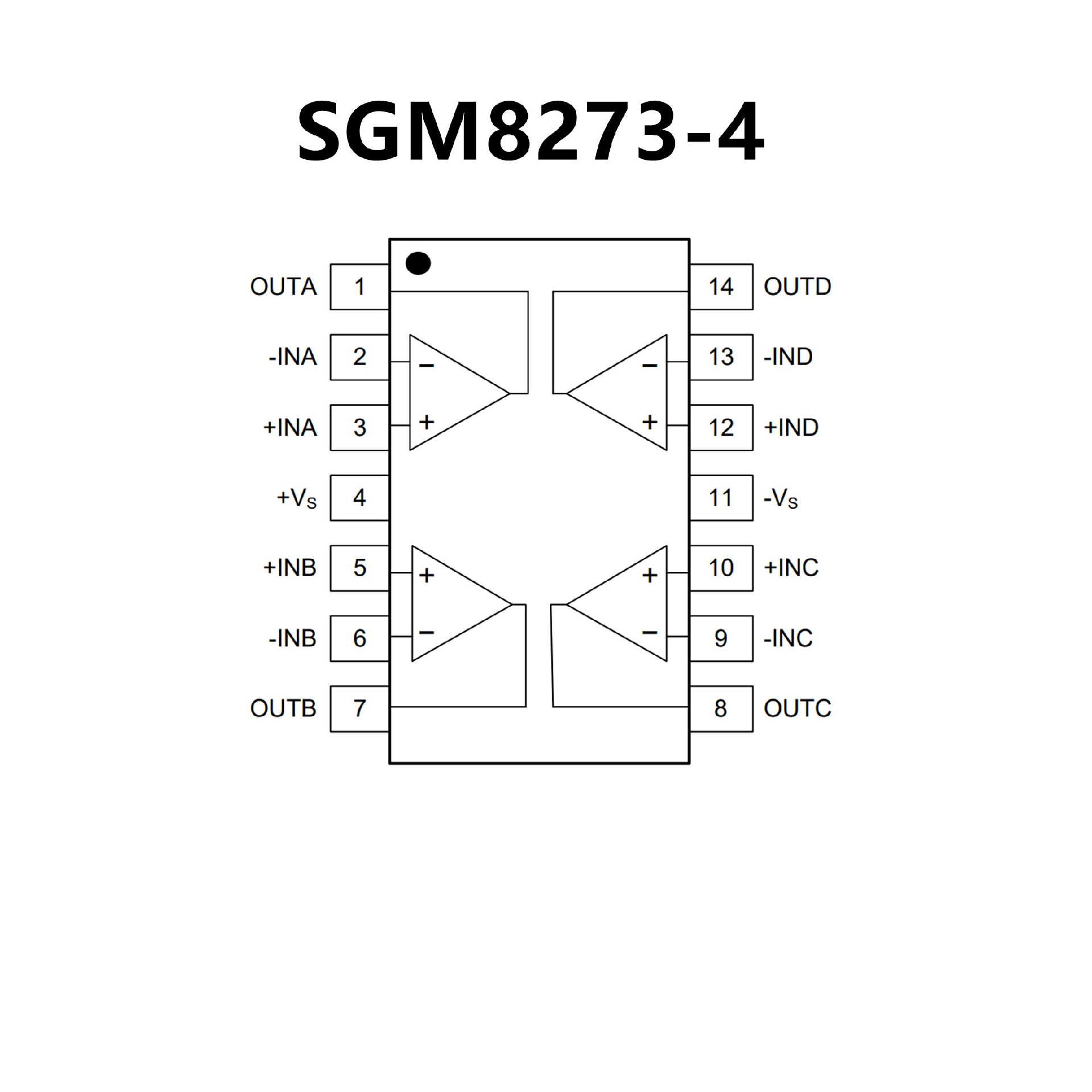

SGM8273-4 Available in a Green SOIC-14 Package

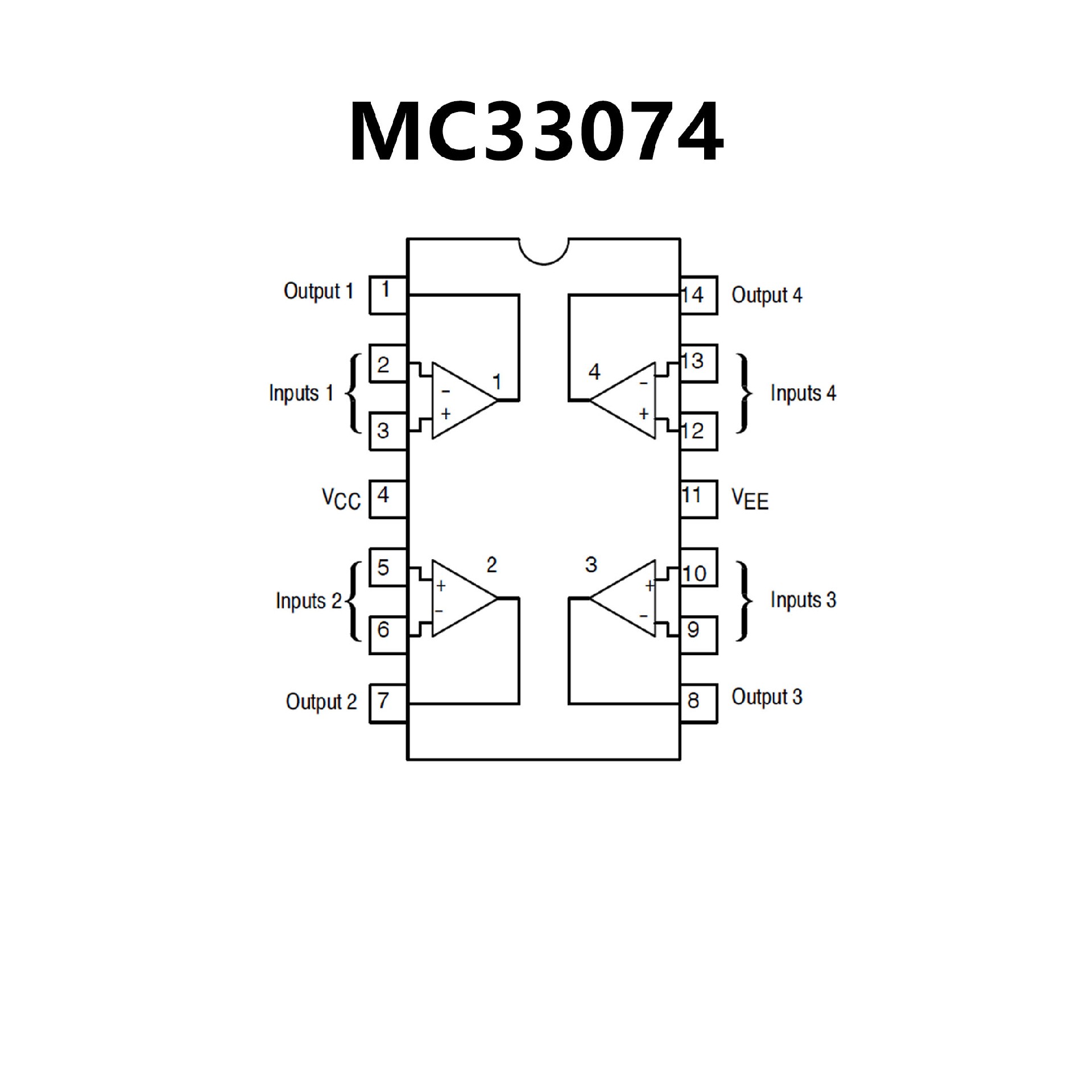

? Wide Bandwidth: 4.5 MHz
? High Slew Rate: 13 V/μs
? Fast Settling Time: 1.1 μs to 0.1%
? Wide Single Supply Operation: 3.0 V to 44 V
? Wide Input Common Mode Voltage
Range: Includes Ground (VEE)
? Low Input Offset Voltage: 3.0 mV
Maximum (A Suffix)
? Large Output Voltage Swing: ?14.7 V to +14 V
(with ±15 VSupplies)
? Large Capacitance Drive Capability: 0 pF to 10,000 pF
? Low Total Harmonic Distortion: 0.02%
? Excellent Phase Margin: 60°
? Excellent Gain Margin: 12 dB
? Output Short Circuit Protection
? ESD Diodes/Clamps Provide Input
Protection for Dual and Quad
? NCV Prefix for Automotive and Other
Applications Requiring
Unique Site and Control Change Requirements;
AEC?Q100 Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHS Compliant
