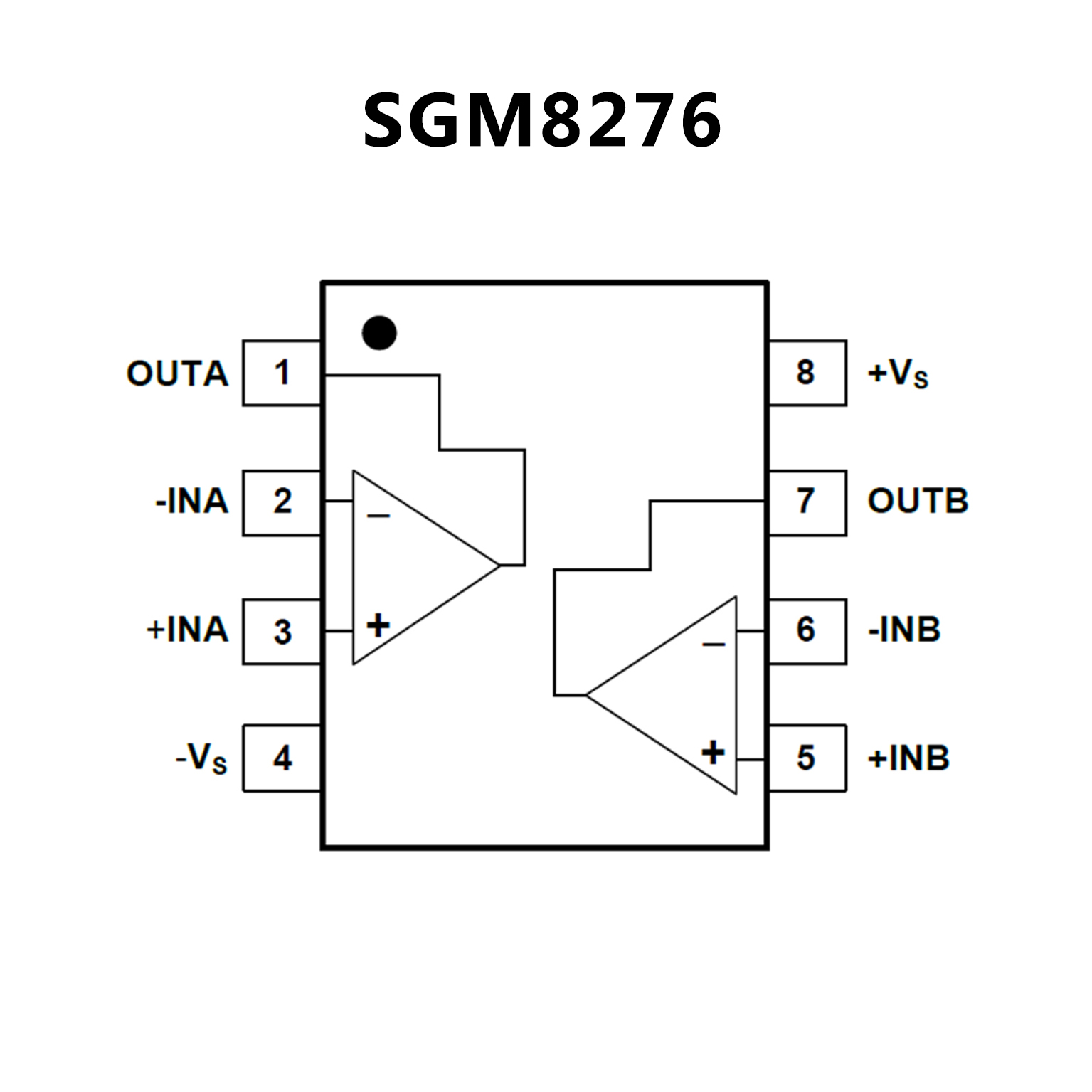

SGM8276.pdf? Wide Input Common Mode and Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
? SGM8276-1 Available in a Green SOT-23-5
Package SGM8276-2 Available in a Green SOIC-8
Package SGM8276-4 Available in a Green SOIC-14 Package
? (VS = ±15, TA = 25°C, Typical Values Unless Specified.)
? Wide Supply Voltage Range 2.5 V to 32 V
? Output Current +65 mA/?100 mA
? Gain Bandwidth Product 20 MHz
? Slew Rate 18 V/μs
? Capacitive Load Tolerance Unlimited
? Input Common-Mode Voltage 0.3-V Beyond Rails
? Input Voltage Noise 15 nV/√Hz
? Input Current Noise 1.3 pA/√Hz
? Supply Current/Channel 1.1 mA
? Distortion THD+Noise ?86 dB
? Temperature Range ?40°C to 125°C
? Tested at ?40°C, 25°C and 125°C at 2.7 V, ±5 V,±15 V.
? LM732xx are Automotive Grade Products that are
AEC-Q100 Grade 1 Qualified.
