SGM8276.pdf? Wide Input Common Mode and Differential VoltageRanges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/Hz at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package

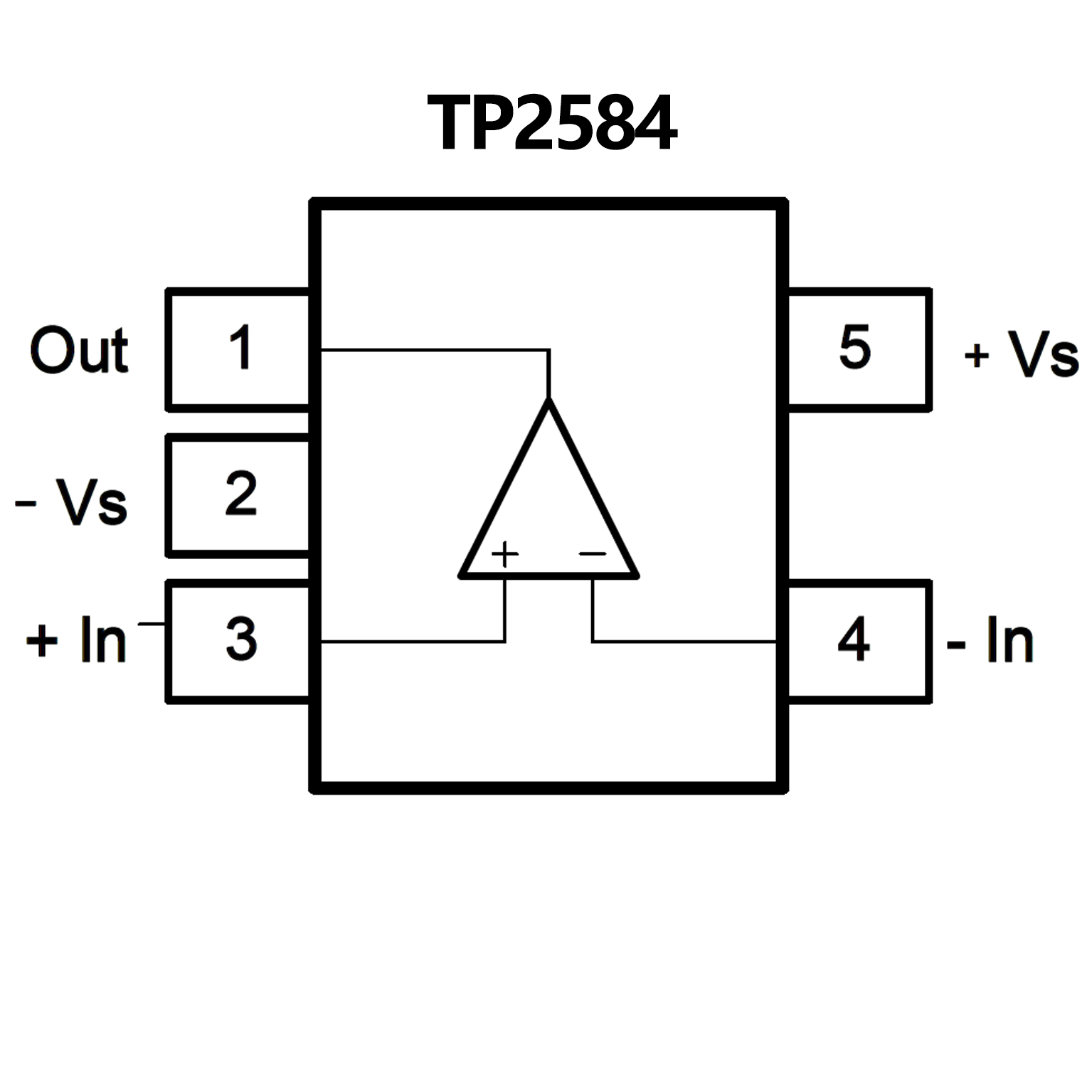

? Supply Voltage: 3V to 36V
? Differential Input Voltage Range to Supply Rail
? Input Rail to –VS, Rail to Rail Output
? Fast Response: 10 MHz Bandwidth, 8V/μs Slew Rate,
100ns Overload Recovery
? Low Offset Voltage:
±3mV Maximum at 25°C,
±3.5mV Maximum at -40°C to 85°C
±4mV Maximum at -40°C to 125°C
? Very Low THD+N: 0.0007% at Gain = 1, 20kHz
? Excellent EMIRR: 58dB at 900MHz
? 2KV HBM, 1KV CDM, 150mA Latch Up
? –40°C to 125°C Operation Temperature Range
