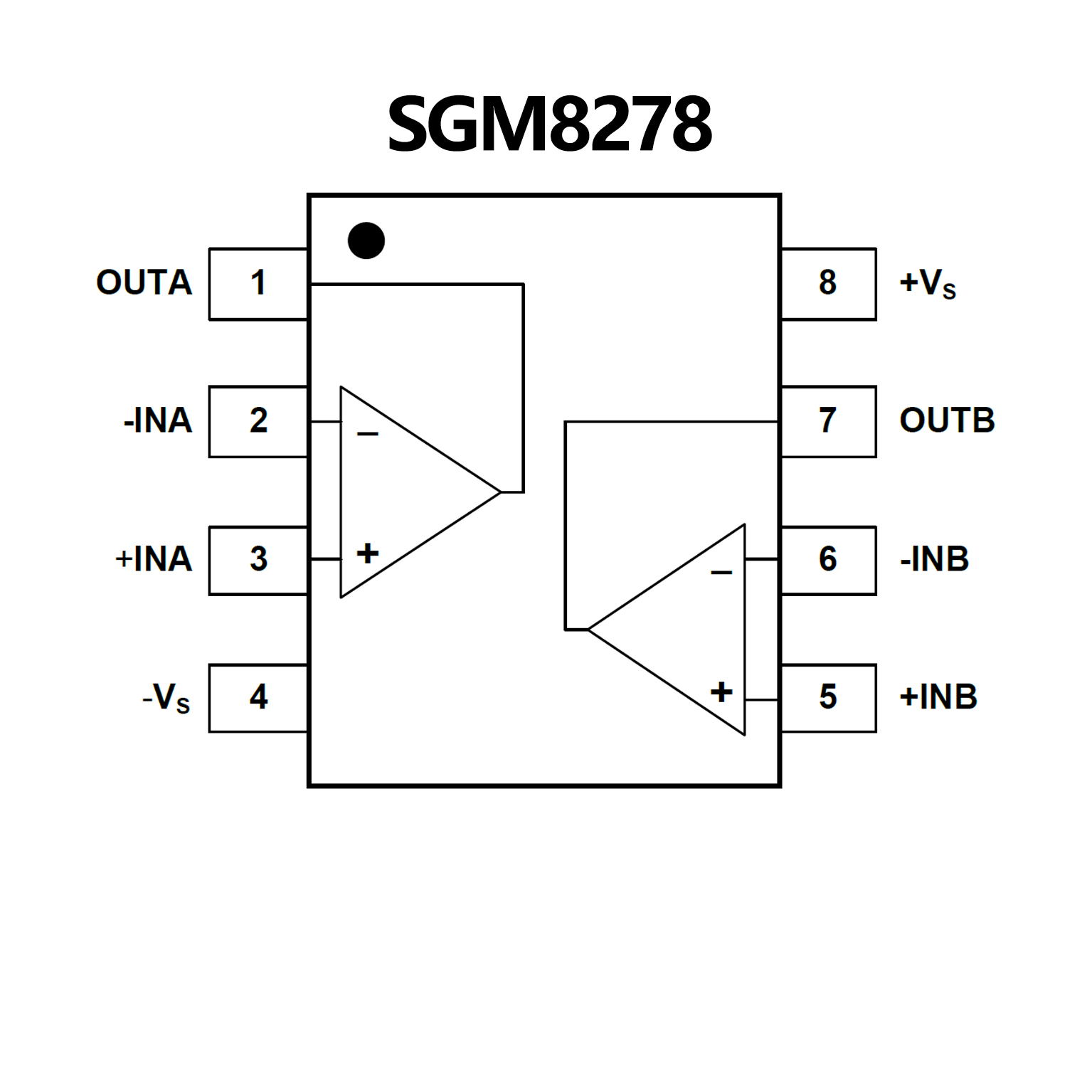

SGM8278.pdf? Wide Input Common Mode and Differential Voltage Ranges
? Support Single or Dual Power Supplies
? High Output Current: 95mA (Able to Drive 32Ω Load)
? Low Input Bias and Offset Current
Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Input Offset Voltage: 2mV (MAX)
? Low Noise: 15nV/√Hz at 1kHz
? Gain-Bandwidth Product: 3.3MHz
? Slew Rate: 2V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8, TDFN-2×2-8AL,
TDFN-3×3-8BL and WLCSP-1.57×1.57-8B Packages

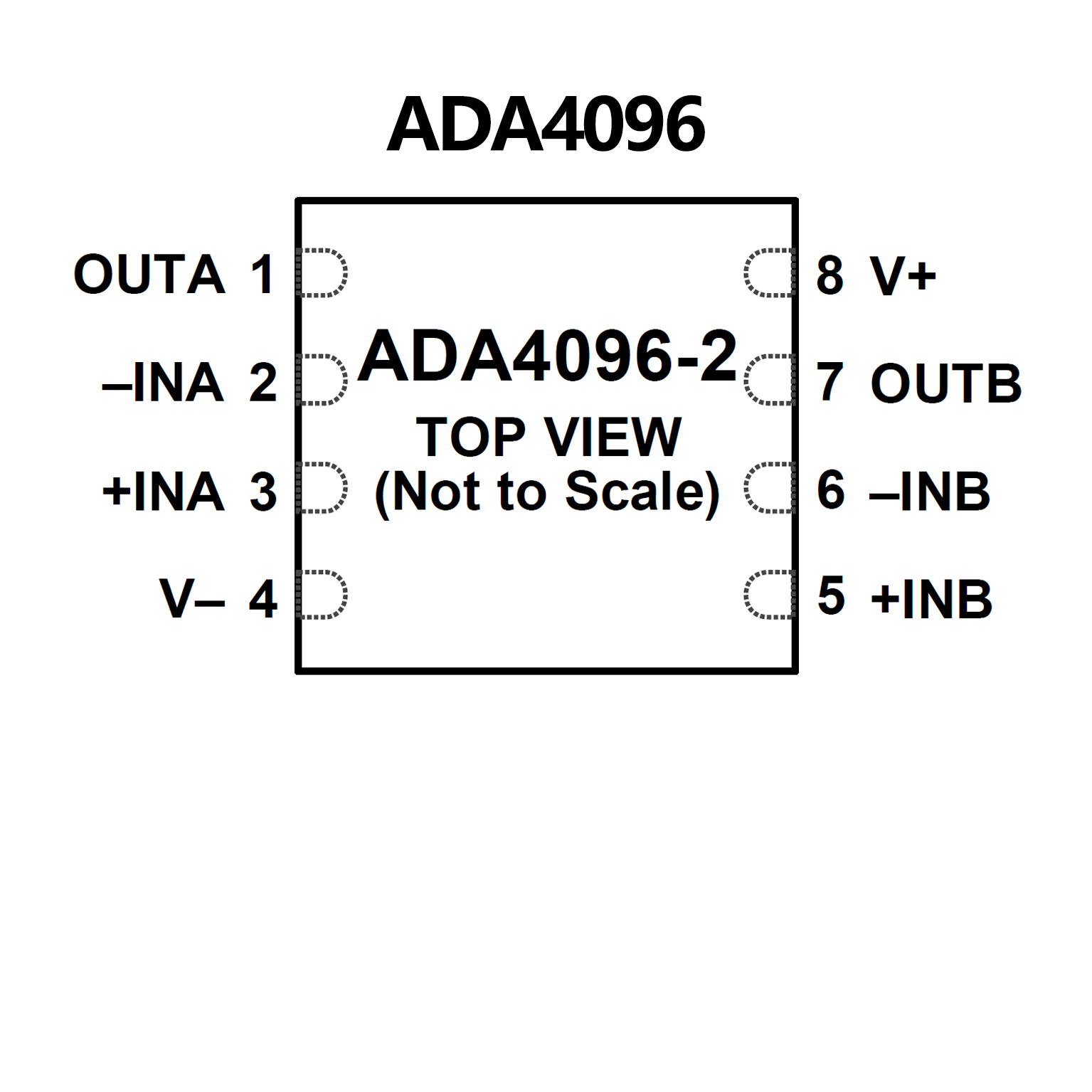

? Input overvoltage protection, 32 V above
and below the supply rails
? No phase reversal for input voltage
up to ±32 V beyond the power supply
? Rail-to-rail input and output swing
? Low power: 60 μA per amplifier typical
? Unity-gain bandwidth
? 800 kHz typical at VSY = ±15 V
? 550 kHz typical at VSY = ±5 V
? 465 kHz typical at VSY = ±1.5 V
? Single-supply operation: 3 V to 30 V
? Low offset voltage: 300 μV maximum
? Large signal voltage gain: 120 dB typical
? Unity gain stable
? Qualified for automotive applications
