Low Noise Operational Amplifier,SGM8295-1 Replace TLE2141.
SGM8295-1
SGM8295-1.pdf
SGM8295-1.pdfFEATURES
? Low Noise: 4.5nV/ Hz
? Rail-to-Rail Output
? Very Low Offset Voltage: 250μV (MAX)
? Low Bias Current: ±1nA (TYP)
? High Gain-Bandwidth Product: 9MHz
? High Slew Rate: 8V/μs
? High Open-Loop Gain: 130dB at VS = ±15V
? High PSRR: 145dB
? Settling Time to 0.1% with 1V Step: 1μs
? Overload Recovery Time: 10μs
? Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Supply Current:1.5mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8295-1 Available in Green SOT-23-5 and
SOIC-8 Packages

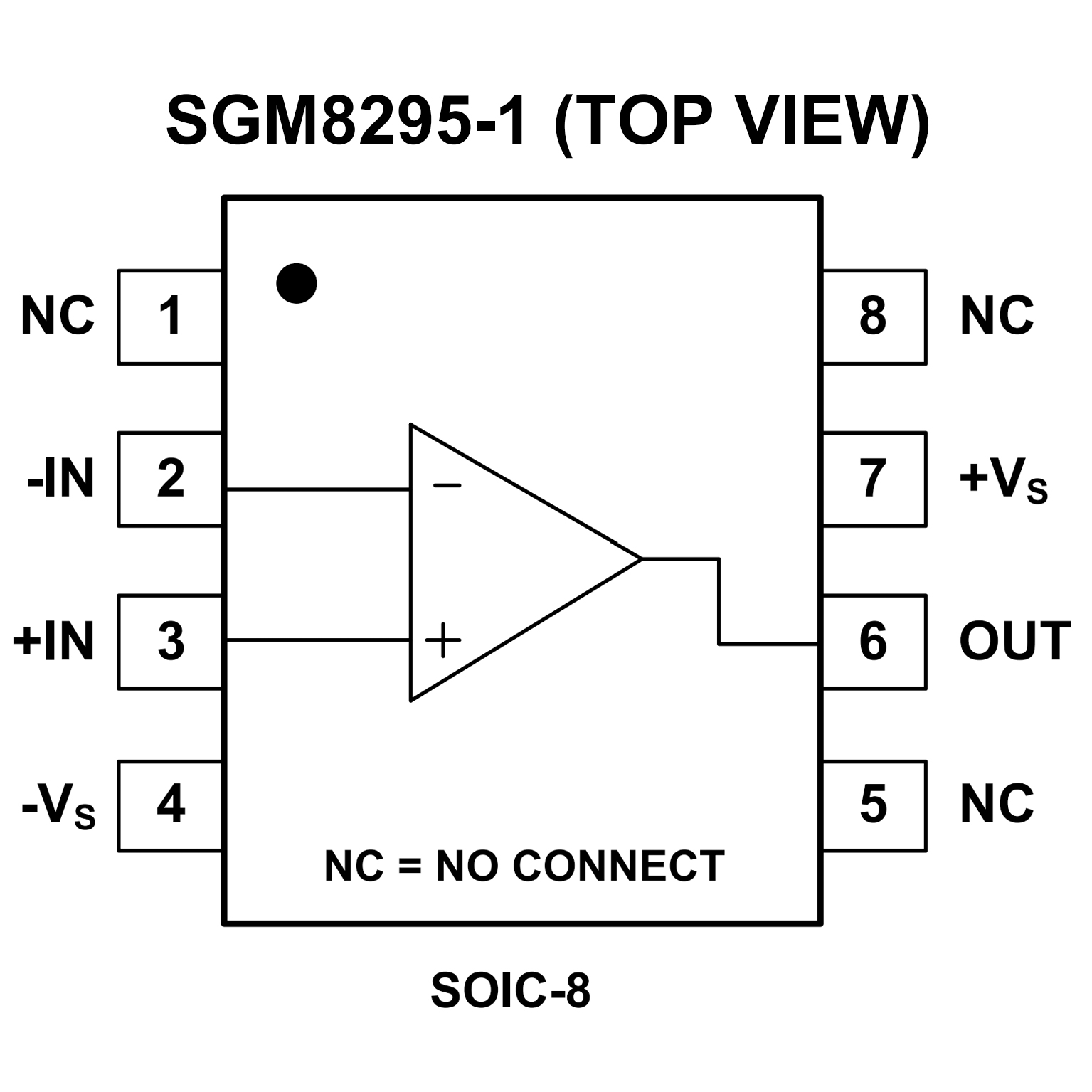

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Low Noise
10 Hz . . . 15 nV/√Hz
1 kHz . . . 10.5 nV/√Hz
? 10000-pF Load Capability
? 20-mA Min Short-Circuit Output Current
? 27-V/μs Min Slew Rate
? High Gain-Bandwidth Product... 5.9 MHz
? Low VIO . . . 500 μV Max at 25°C
? Single or Split Supply . . . 4 V to 44 V
? Fast Settling Time
340 ns to 0.1%
400 ns to 0.01%
? Saturation Recovery . . . 150 ns
? Large Output Swing
VCC? +0.1 V to VCC+ ? 1 V

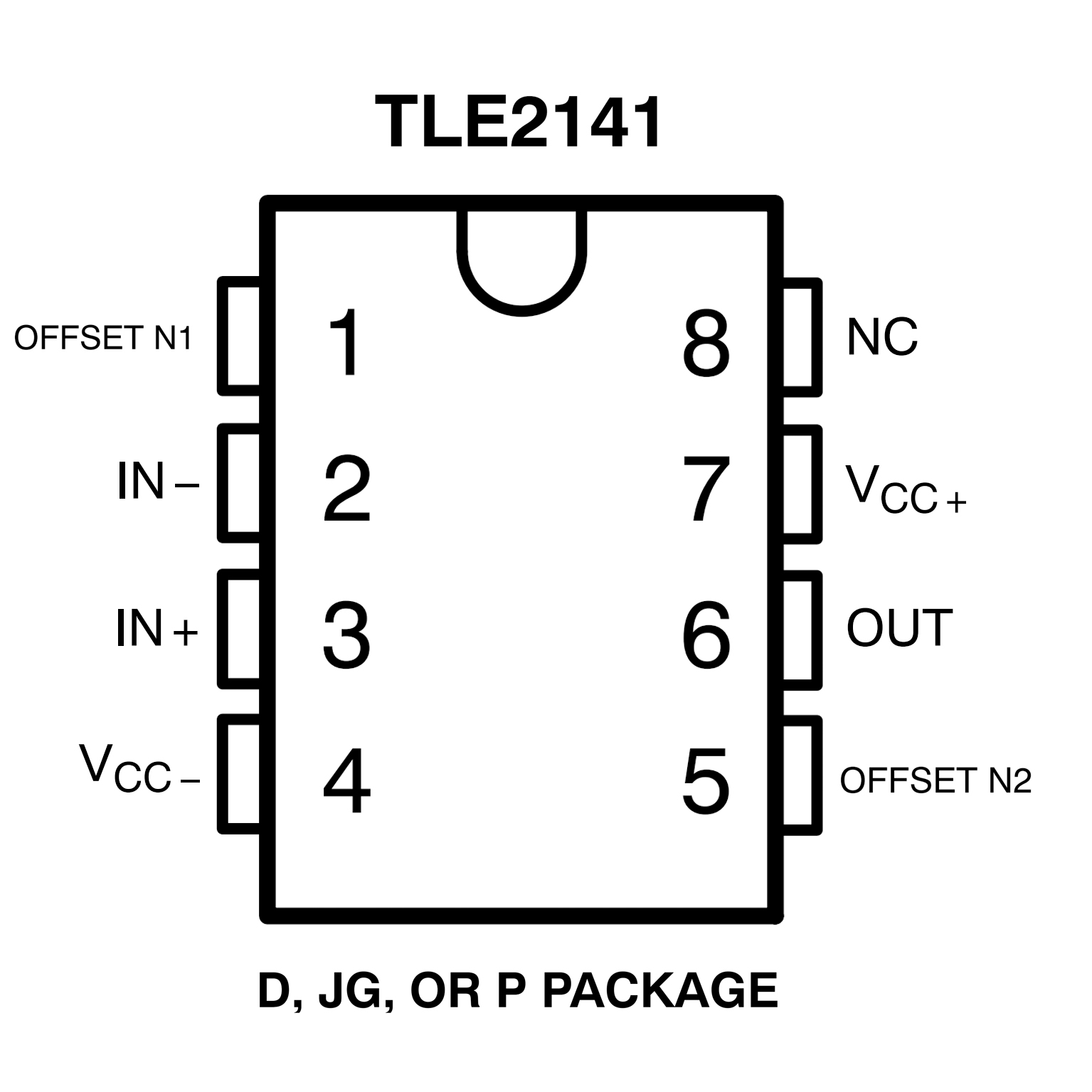

PIN CONFIGUTION
