SGM8295-4.pdf? Low Noise: 4.5nV/ Hz
? Rail-to-Rail Output
? Very Low Offset Voltage: 250μV (MAX)
? Low Bias Current: ±1nA (TYP)
? High Gain-Bandwidth Product: 9MHz
? High Slew Rate: 8V/μs
? High Open-Loop Gain: 130dB at VS = ±15V
? High PSRR: 145dB
? Settling Time to 0.1% with 1V Step: 1μs
? Overload Recovery Time: 10μs
? Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Supply Current: 1.5mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8295-4 Available in a Green SOIC-14 Package
? Low Noise: 3nV/√Hz
OPA227: 8 MHz, 2.3 V/μs
OPA228: 33 MHz, 10 V/μs
? Settling Time: 5 μs
(Significant Improvement Over OP-27)
? High CMRR: 138 dB
? High Open-loop Gain: 160 dB
? Low Input Bias Current: 10 nA Maximum
? Low Offset Voltage: 75 μV Maximum
? Wide Supply Range: ±2.5 V to ±18 V
?OPA227 Replaces OP-27, LT1007, MAX427
? OPA228 Replaces OP-37, LT1037, MAX437

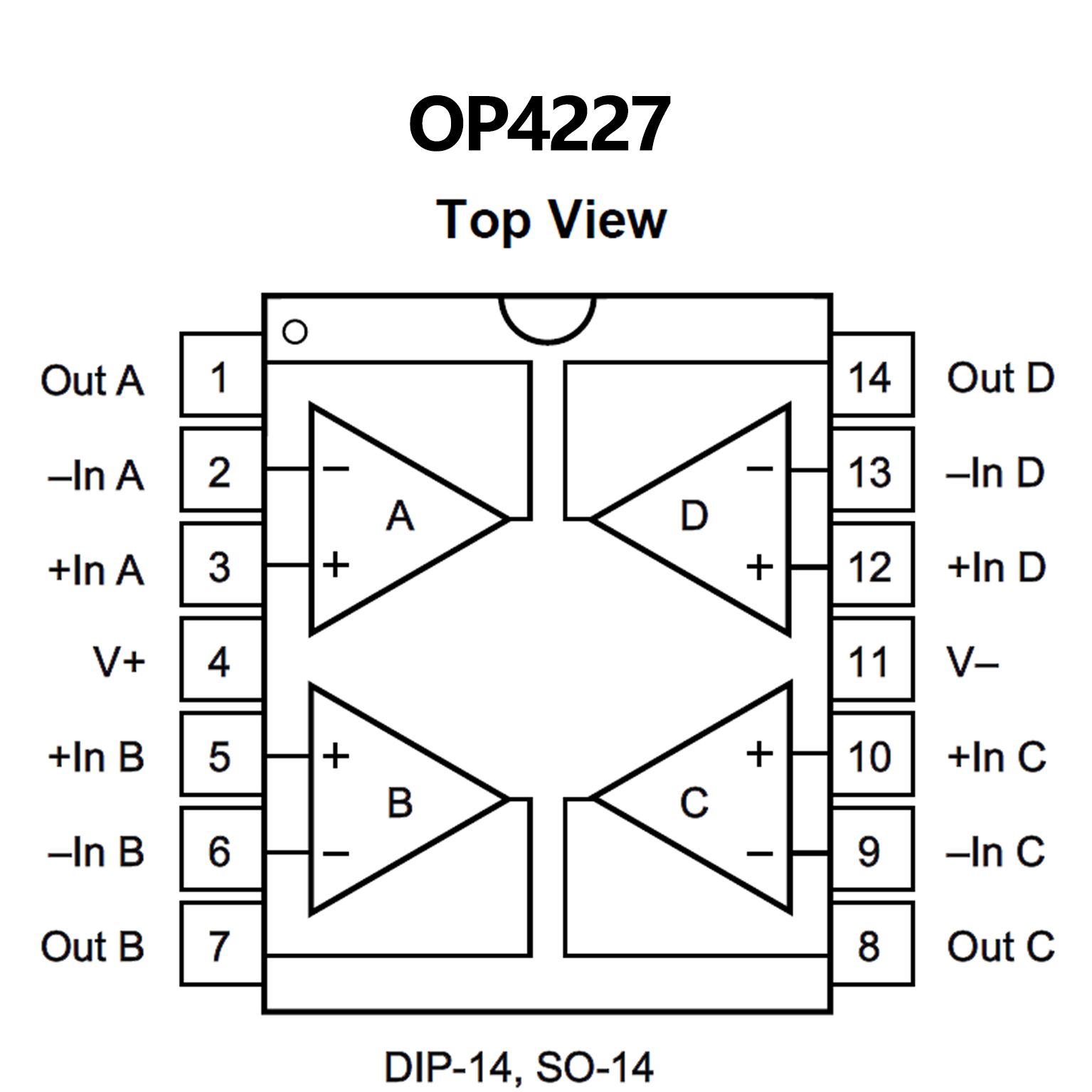

? Single, Dual, and Quad Versions
