100MHz, High Voltage,Rail-to-Rail Output Amplifiers,SGM8301YN5G Replace TXS921ILT.
SGM8301YN5G
SGM8301YN5G.pdf
SGM8301YN5G.pdfFEATURES
? 4.5V to 12V Single Supply or ±2.25V to ±6V
Dual Power Supplies
? High Speed:
100MHz -3dB Bandwidth
56MHz -0.1dB Gain Flatness
155V/μs Slew Rate
? Rail-to-Rail Output
? Low Differential Gain/Phase: 0.02%/0.02°
? High Output Drive: 103mA
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8301 Available in SOT-23-5, SOIC-8
and MSOP-8
SGM8302 Available in MSOP-8 and SOIC-8
SGM8304 Available in SOIC-14 and TSSOP-14

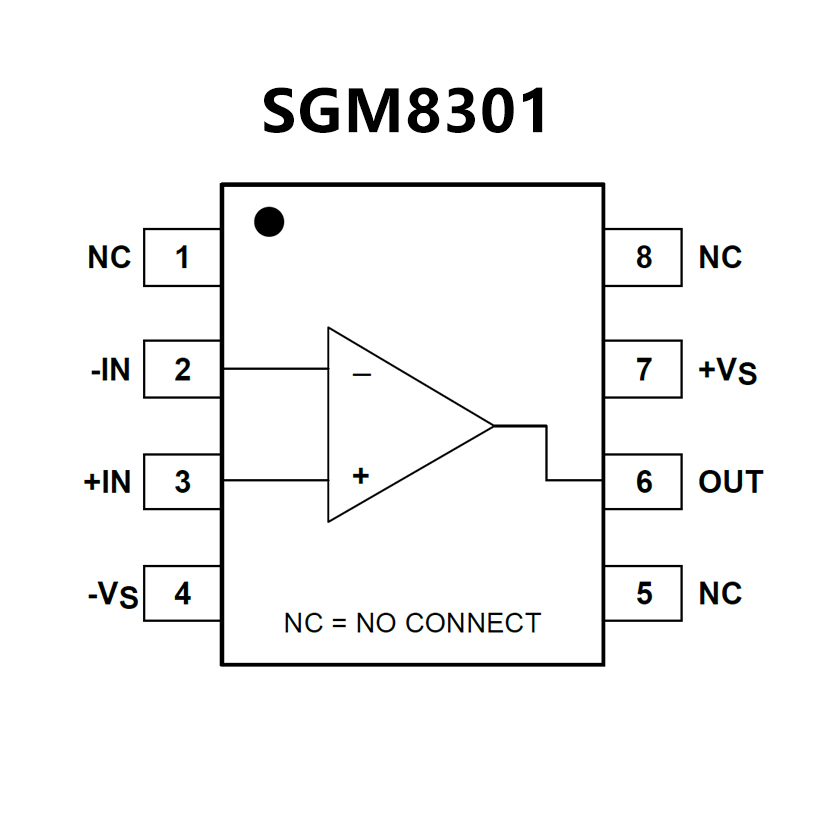

PIN CONFIGUTION
