Dual Channel, High Precision, High Voltage, Current Sense Amplifier, SGM835 Replace MAX44285.
SGM835
SGM835.pdf
SGM835.pdfFEATURES
? Input Common-Mode Voltage Range:
-0.3V to 72V
? Low Input Offset Voltage: 125μV (MAX)
? Gain: 20V/V and 50V/V
? Low Gain Error: 0.2% (MAX)
? Available in a Green MSOP-8 Package

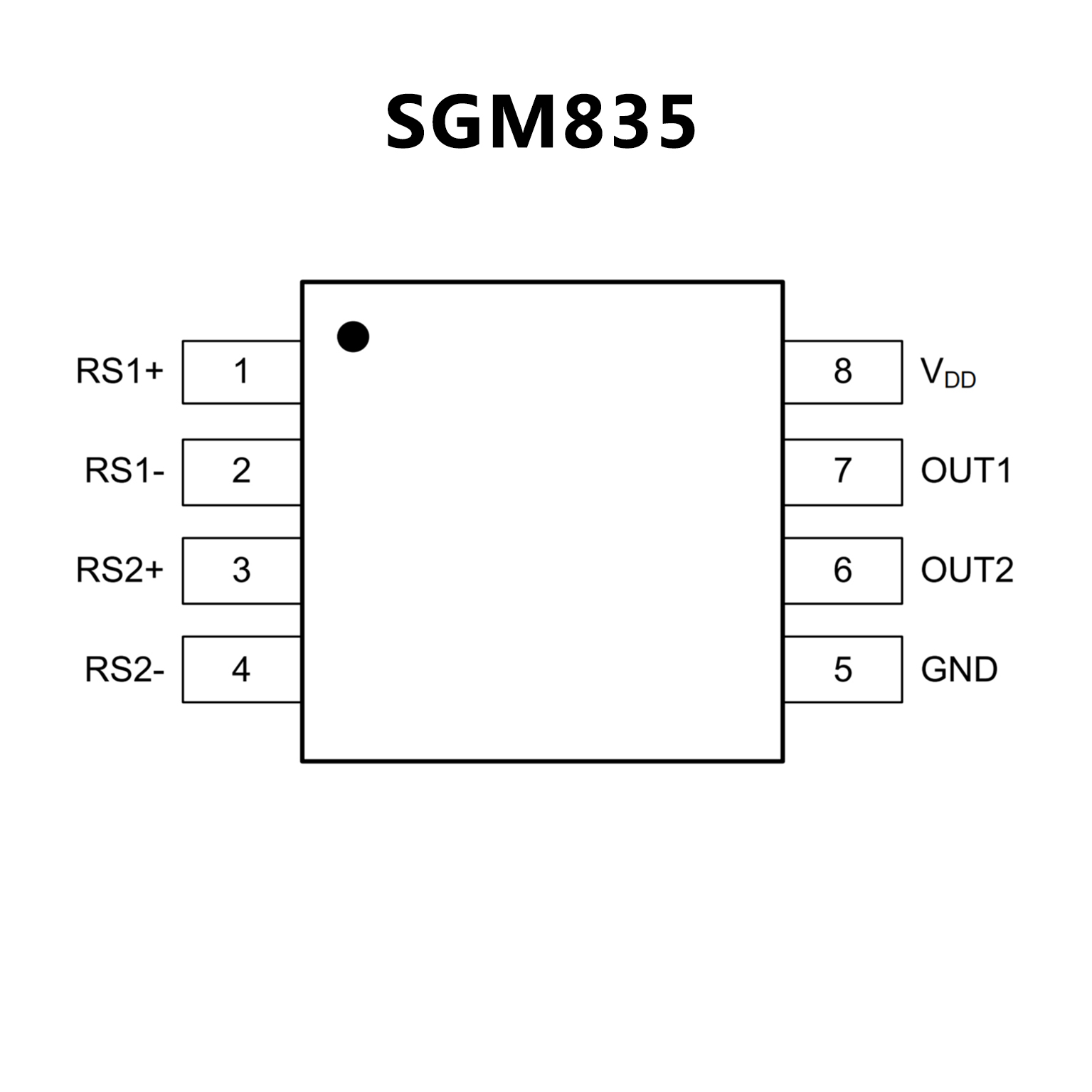

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 2.7V to 76V Input Common Mode
? Low 12μV (max) Input Offset Voltage
? Low 0.1% (max) Gain Error
? Gain Options
? G = 12.5V/V (MAX44285L)
? G = 20V/V (MAX44285T)
? G = 50V/V (MAX44285F)
? G = 100V/V (MAX44285H)
? 1mm x 2mm 8-Bump WLP and 8-Pin μMAX
Packages

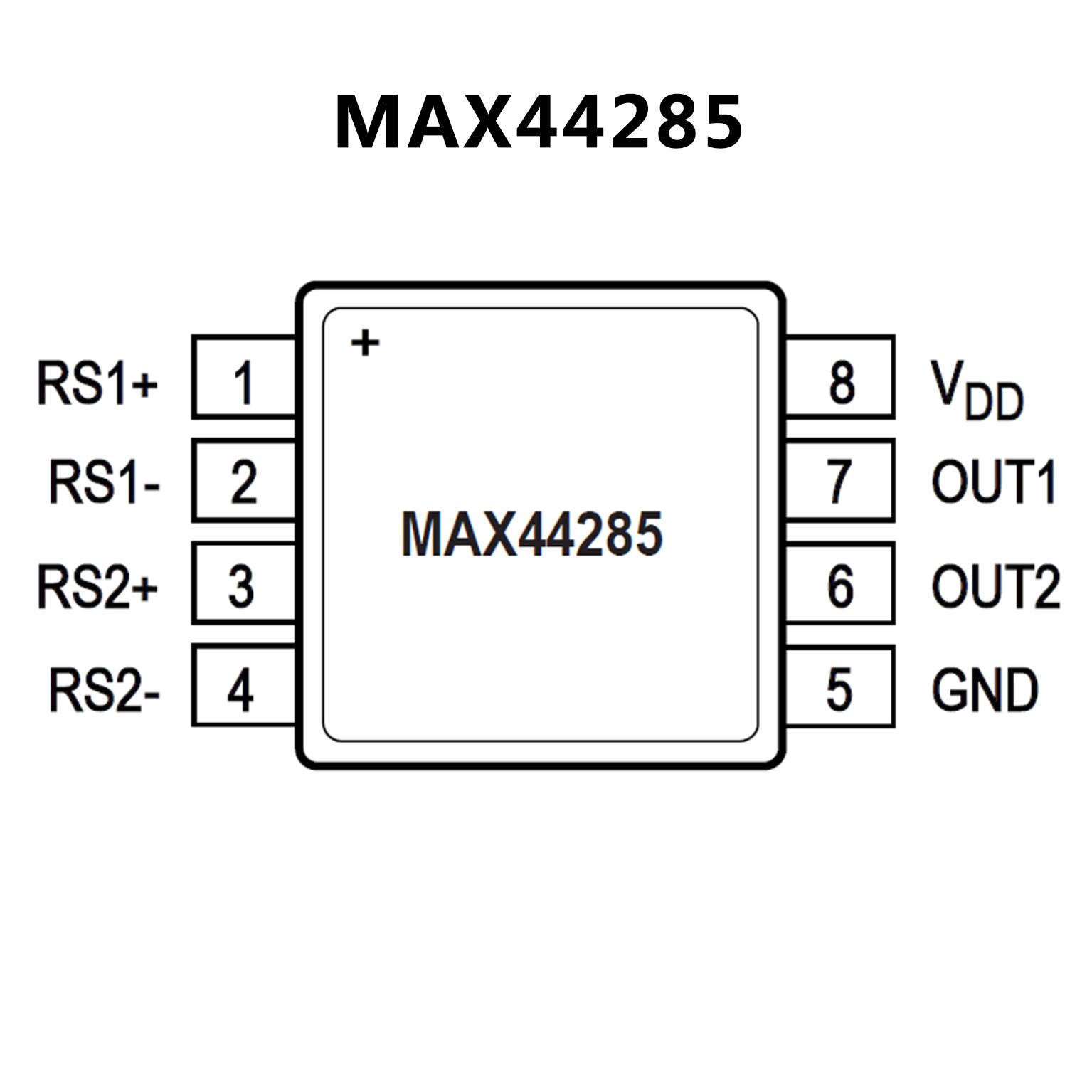

PIN CONFIGUTION
