SGM836Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Adjustable Reset Timeout Period: 1.1ms to 10s
? Low Quiescent Current: 0.6μA (TYP)
? High Threshold Accuracy: 2.2% (MAX)
? 1.8V, 3.3V Factory-Set Detection Voltages and
Adjustable Detection Voltage Down to 0.4V
? Manual Reset (nMR) Input
? Open-Drain nRESET Output

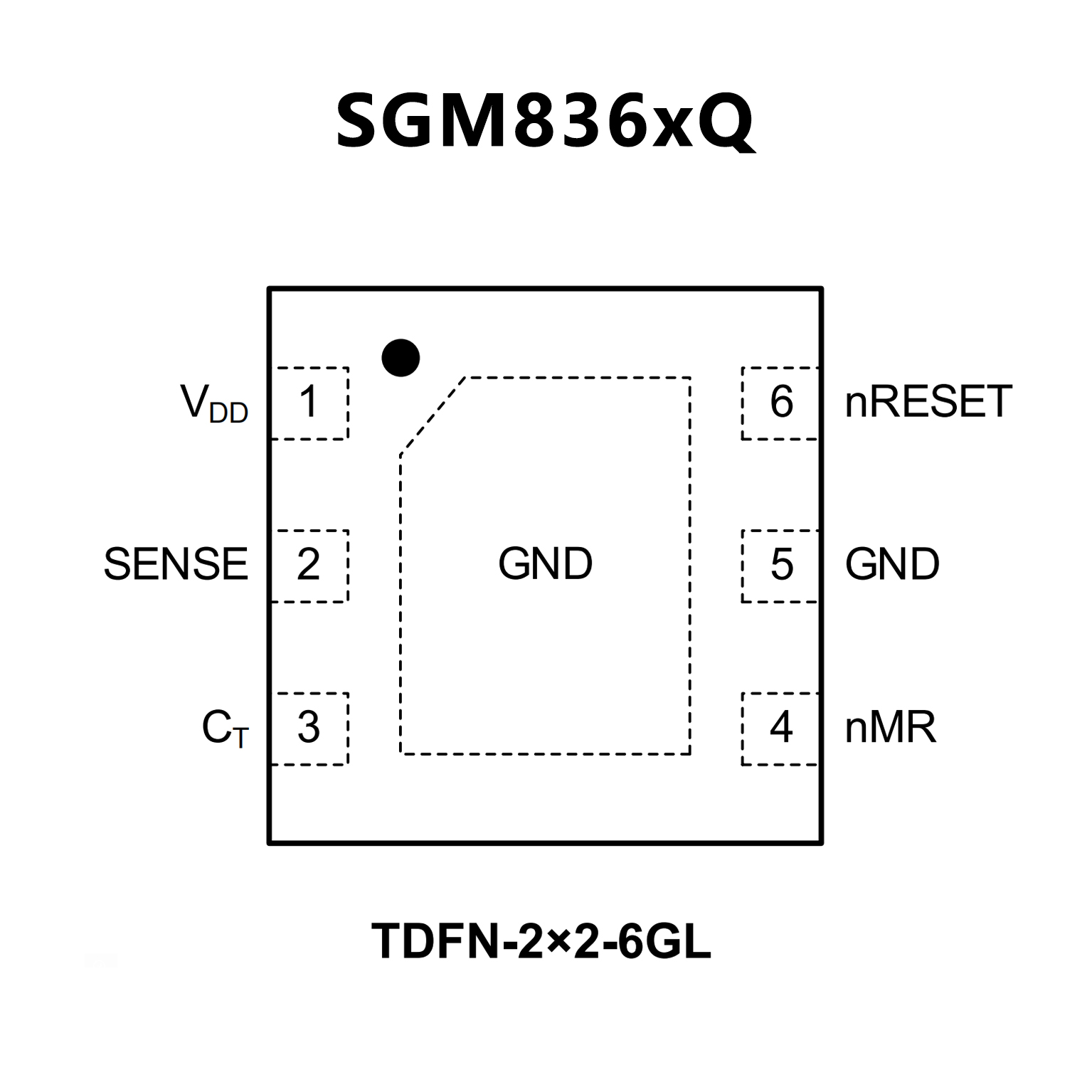

? Available in Green SOT-23-6 and TDFN-2×2-6GL
Packages
? Qualified for Automotive Applications
? Power-On Reset Generator With Adjustable Delay
Time: 1.25 ms to 10 s
? Very Low Quiescent Current: 2.4 μA Typical
? High Threshold Accuracy: 0.5% Typical
? Fixed Threshold Voltages for Standard Voltage
Rails From 1.2 V to 5 V and Adjustable Voltage
Down to 0.4 V Are Available
? Manual Reset (MR) Input
? Open-Drain RESET Output
? Temperature Range: –40°C to +125°C

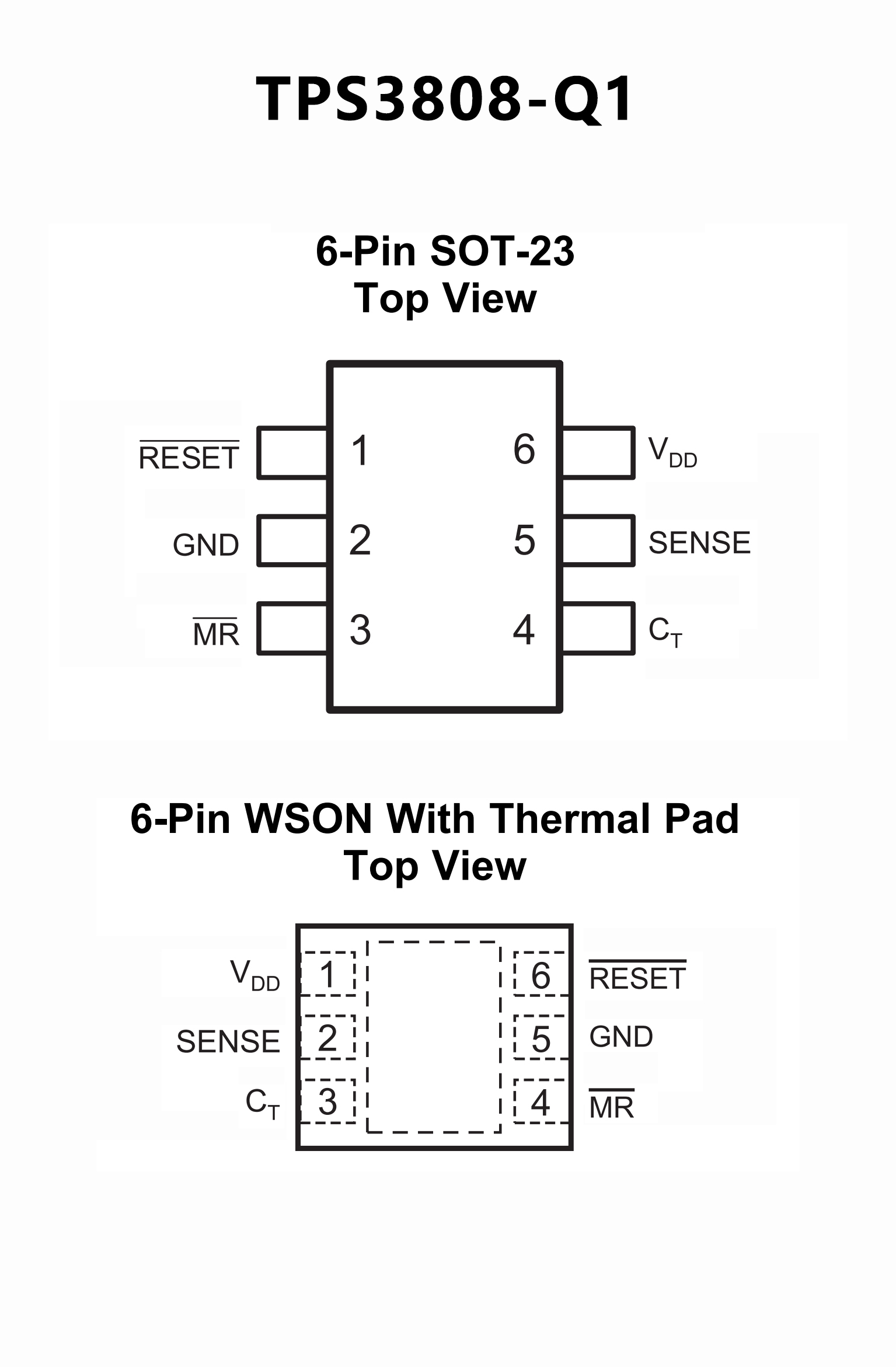

? Small SOT-23 Package and WSON Package
(TPS3808G01QDRVRQ1 only)
