Micro Power Operational Amplifier, Replace LP2902
SGM8522
SGM8522.pdf
SGM8522.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
0.8mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 150kHz
? Very Low Input Bias Currents : 0.5pA
? Operates on 2.1V to 5.5V Supplies
? Input Voltage Range = -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 4.7μA/Amplifier
? Small Packaging
SGM8522 Available in SOIC-8 and MSOP-8

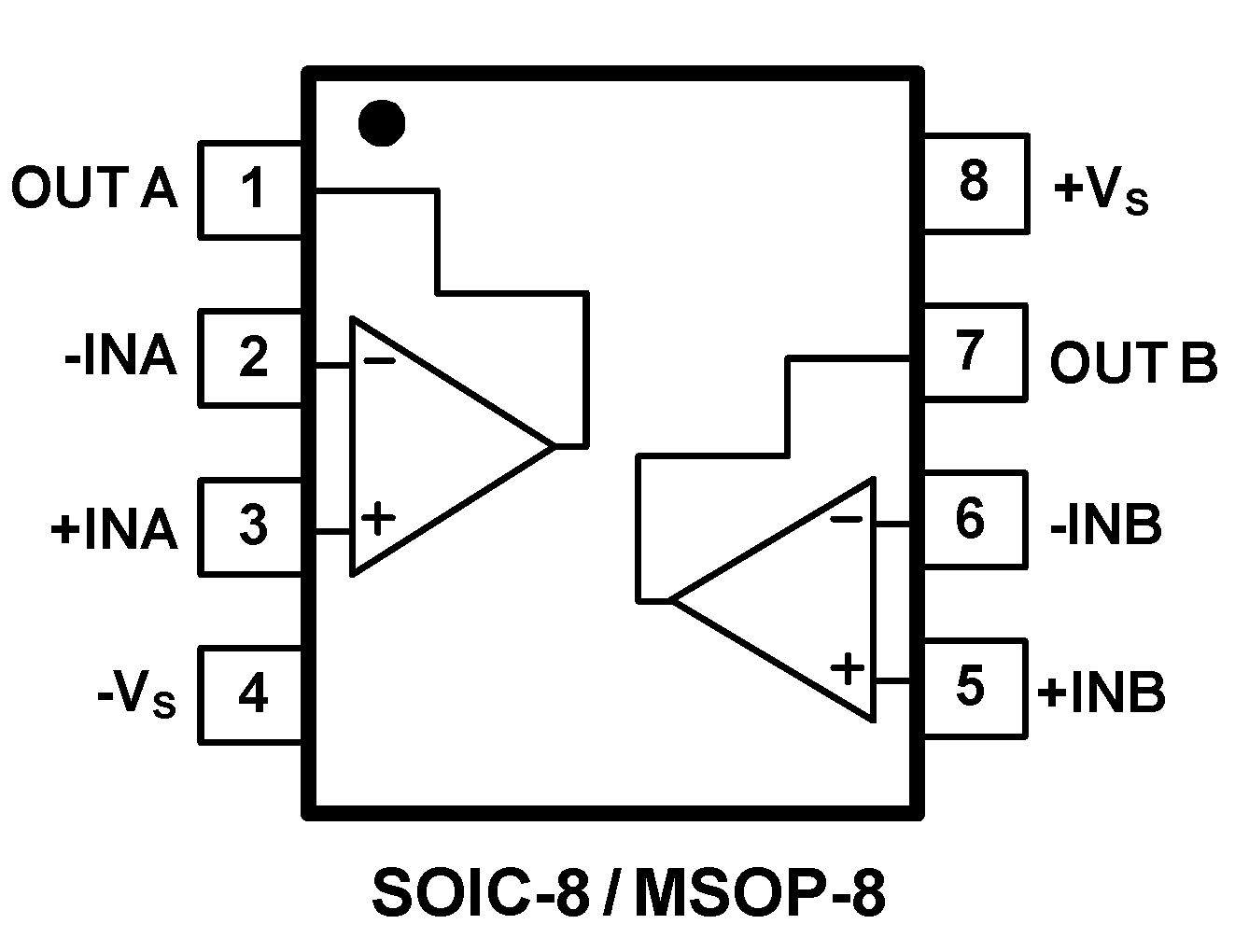

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Supply Current . . . 85mA Typ
? Low Offset Voltage . . . 2mV Typ
? Low Input Bias Current . . . 2nA Typ
? Input Common Mode to GND
? Wide Supply Voltage . . . 3V < VCC < 32V

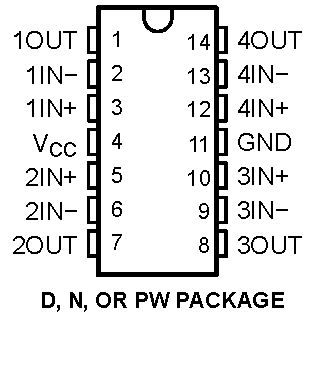

PIN CONFIGUTION
