500kHz, 18μA, Rail-to-Rail I/O CMOS Operational Amplifiers,SGM8531 Replace LMC7101.
SGM8531
SGM8531.pdf
SGM8531.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output0.8mV Typical VOS
? Unity Gain Stable
? Gain-Bandwidth Product: 500kHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
-0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 18μA/Amplifier
? Small Packaging
SGM8531 Available in SOIC-8 and SOT-23-5
SGM8532 Available in SOIC-8 and MSOP-8
SGM8534 Available in SOIC-14 and TSSOP-14
PIN CONFIGUTION
優勢替代
FEATURES
? Small footprint SOT-23-5 package
? Guaranteed 2.7V, 3V, 5V, and 12V performance
? 500kHz gain-bandwidth
? 0.01% total harmonic
distortion at 10kHz (5V, 2k?)
? 0.5mA typical supply current at 5V

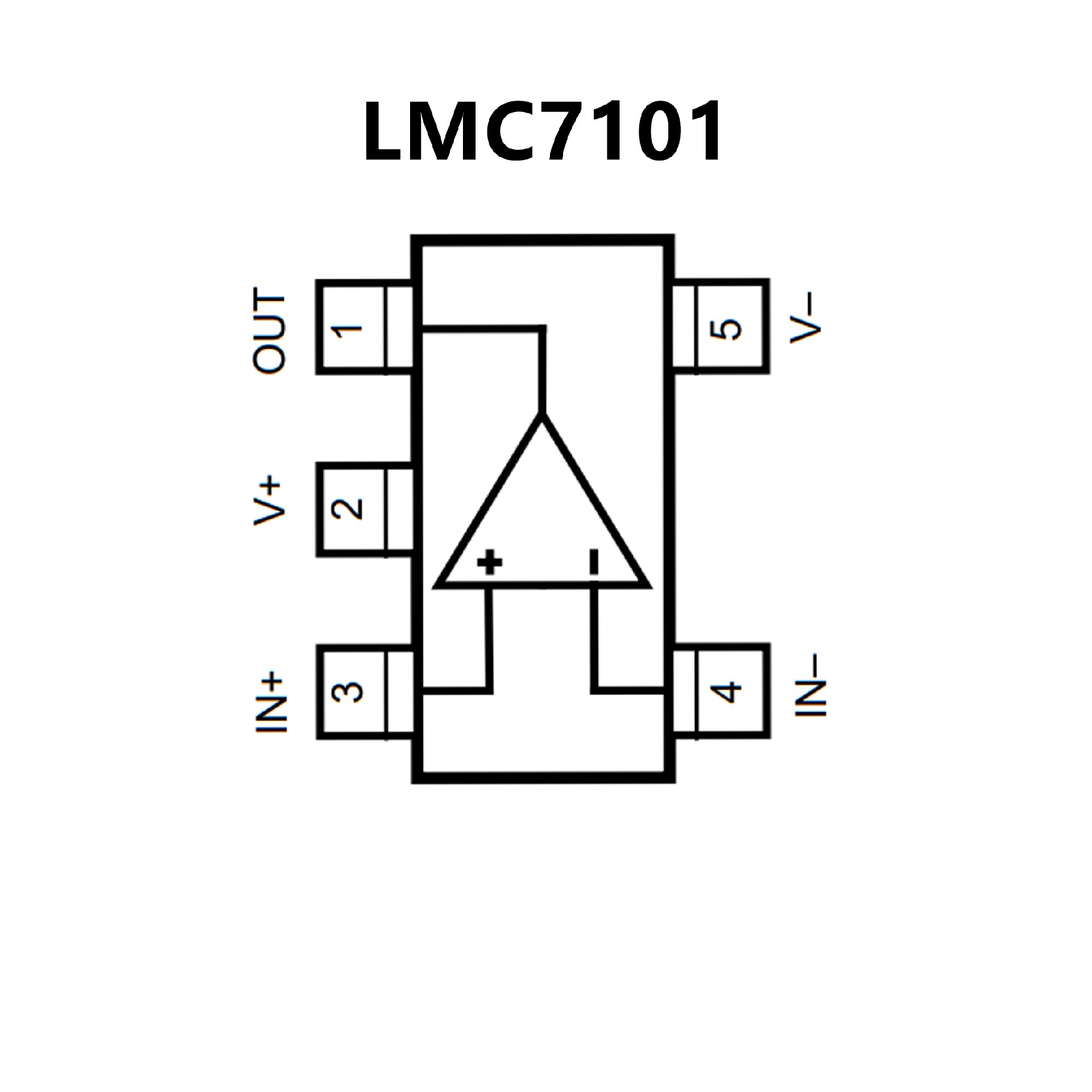

PIN CONFIGUTION
