Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier,SGM8552-Replace-AD8607ARZ.
SGM8552XS8G
SGM8552XS8G.pdf
SGM8552XS8G.pdfFEATURES
? Low Offset Voltage: 20μV (MAX)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single-Supply Operation
? Voltage Gain: 145dB (TYP) at 5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 930μA (TYP)
? Overload Recovery Time: 60μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

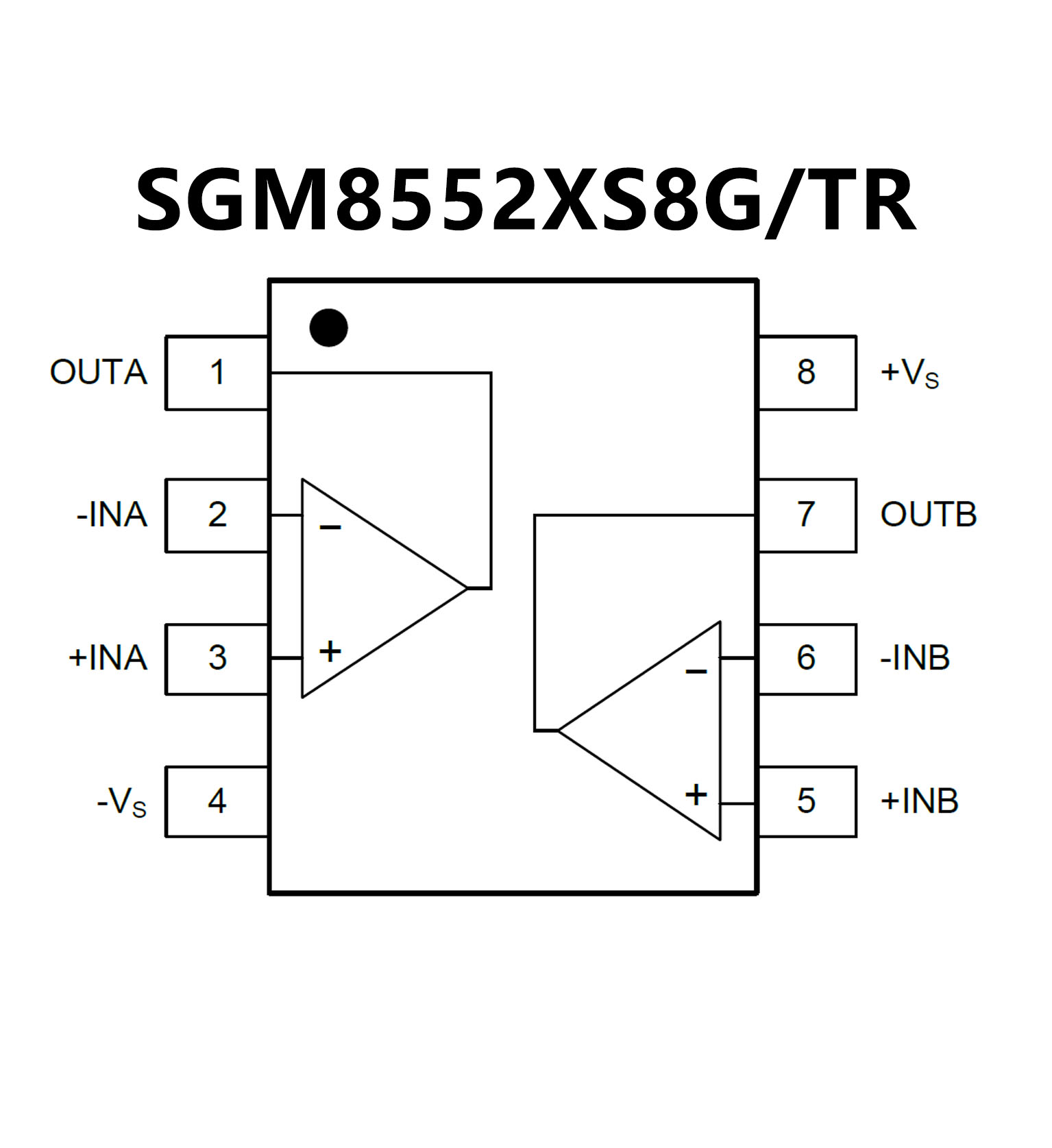

PIN CONFIGUTION
優勢替代
FEATURES
? 低失調電壓：50 μV(最大值)
? 低輸入偏置電流：1 pA(最大值)
? 單電源供電：1.8 V至5 V
? 低噪聲：22 nV/√Hz
? 微功耗：50 μA(最大值)
? 低失真
? 無相位反轉
? 單位增益穩定

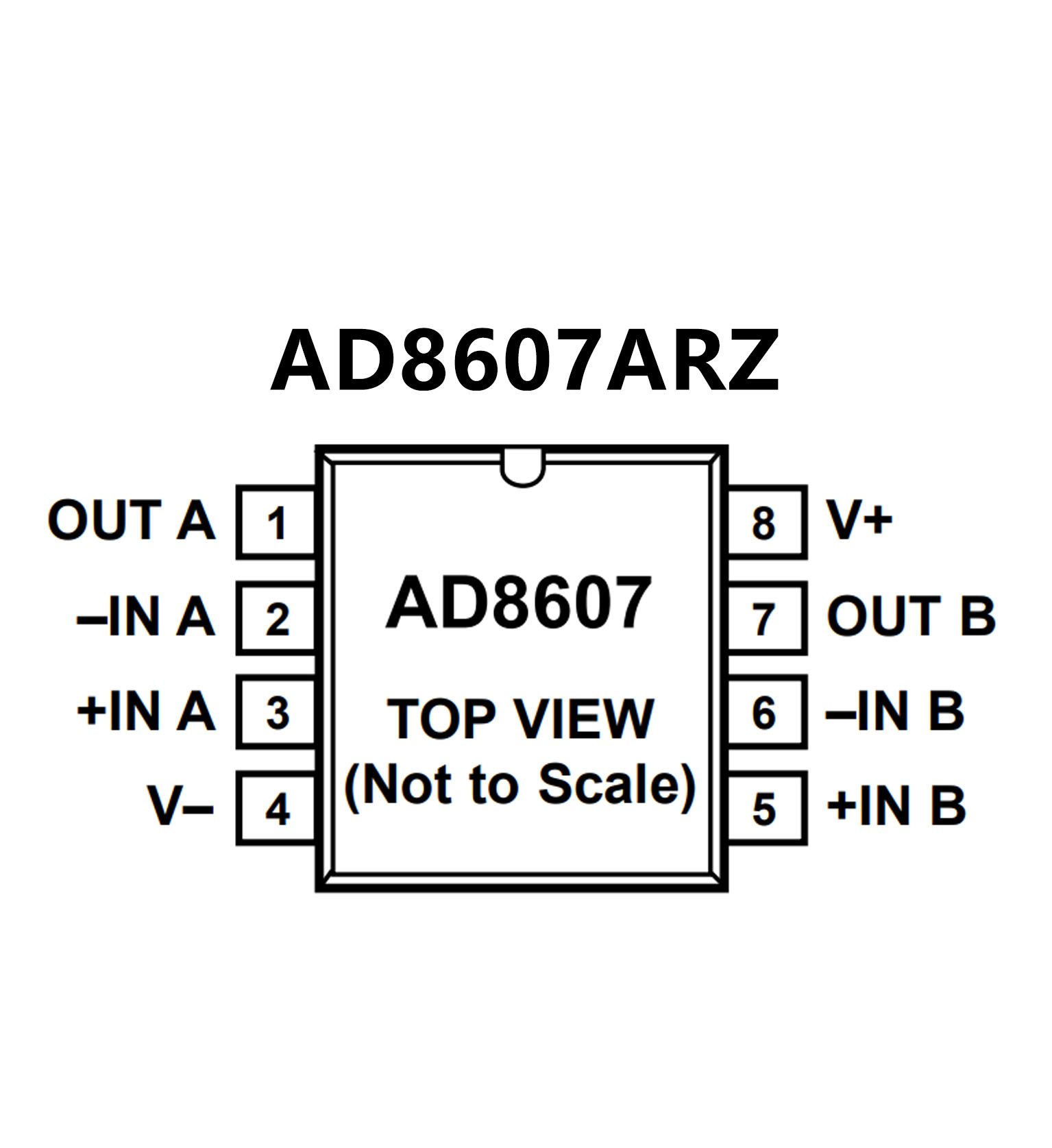

PIN CONFIGUTION
