15MHz, High Output Drive, High Precision,Low Noise, Automotive Operational Amplifier.
SGM8557-1
SGM8557-1.pdf
SGM8557-1.pdfFEATURES
? 240mA Output Drive Capability
? Rail-to-Rail Output
? Low Input Offset Voltage: 5μV (MAX)
? Low Input Offset Voltage Drift: 27nV/℃ (TYP)
? Low Noise: 22nV/ Hz at 1kHz
? Over-Temperature Protection
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Supply Current:
1.2mA/Amplifier (TYP)
0.3μA Shutdown Current for SGM8557-3/5 (TYP)
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? Voltage Gain (RL = 2kΩ): 144dB
? Power Supply Rejection Ratio: 120dB
? No Phase Reversal for Overdriven Inputs
? Small Packaging:
SGM8557-1 Available in Green SOIC-8, MSOP-8,
and SOT-23-5 Packages
SGM8557-2 Available in a Green SOIC-8 Package
SGM8557-3 Available in Green SOIC-8 and
SOT-23-6 Packages
SGM8557-5 Available in a Green MSOP-10 Package

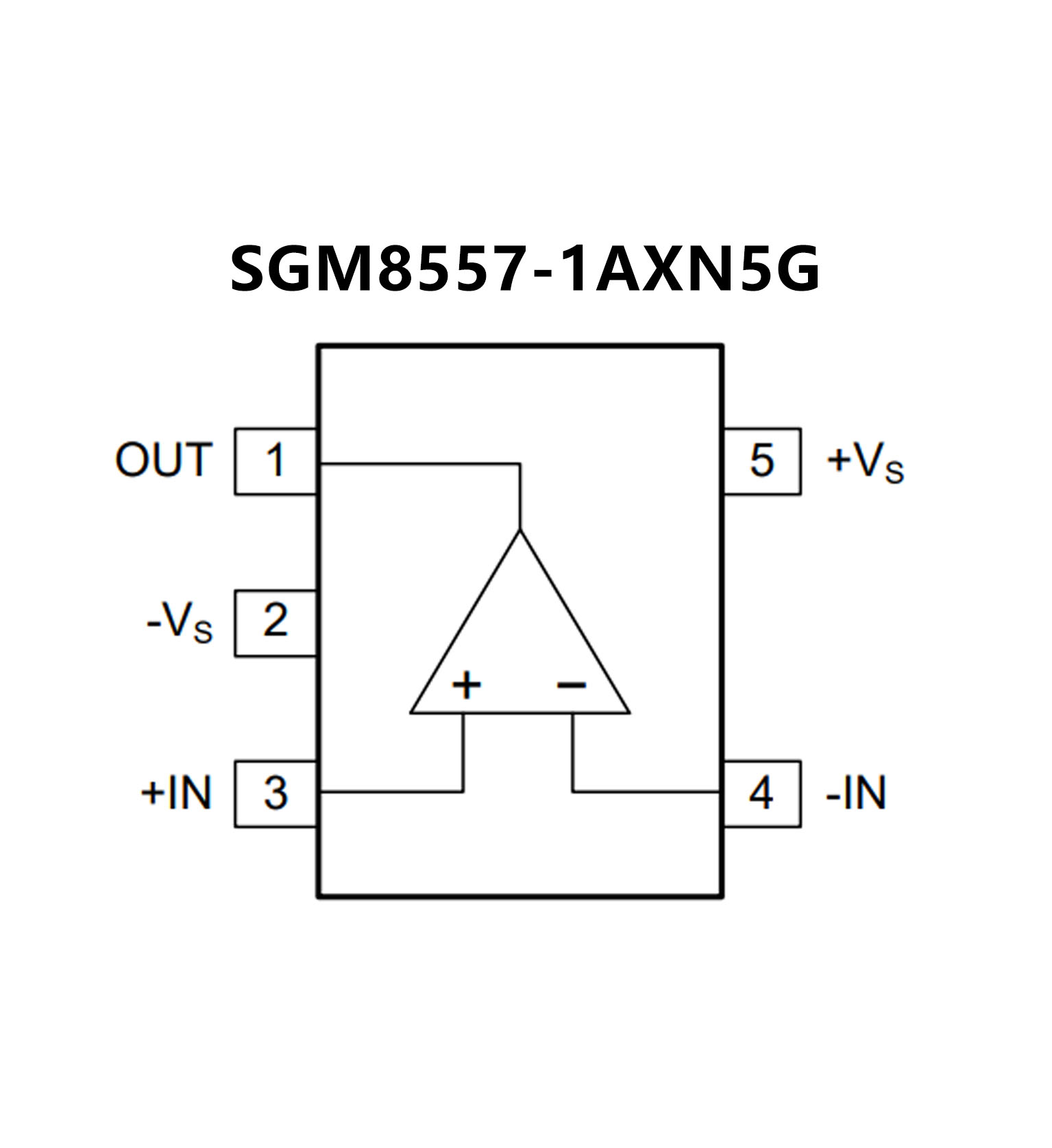

PIN CONFIGUTION
優勢替代
FEATURES
? Low offset voltage: 13 μV maximum
? Input offset drift: 0.03 μV/°C
? Single-supply operation: 2.7 V to 5.5 V
? High gain, CMRR, and PSRR
? Low input bias current: 25 pA
? Low supply current: 180 μA
? Qualified for automotive applications

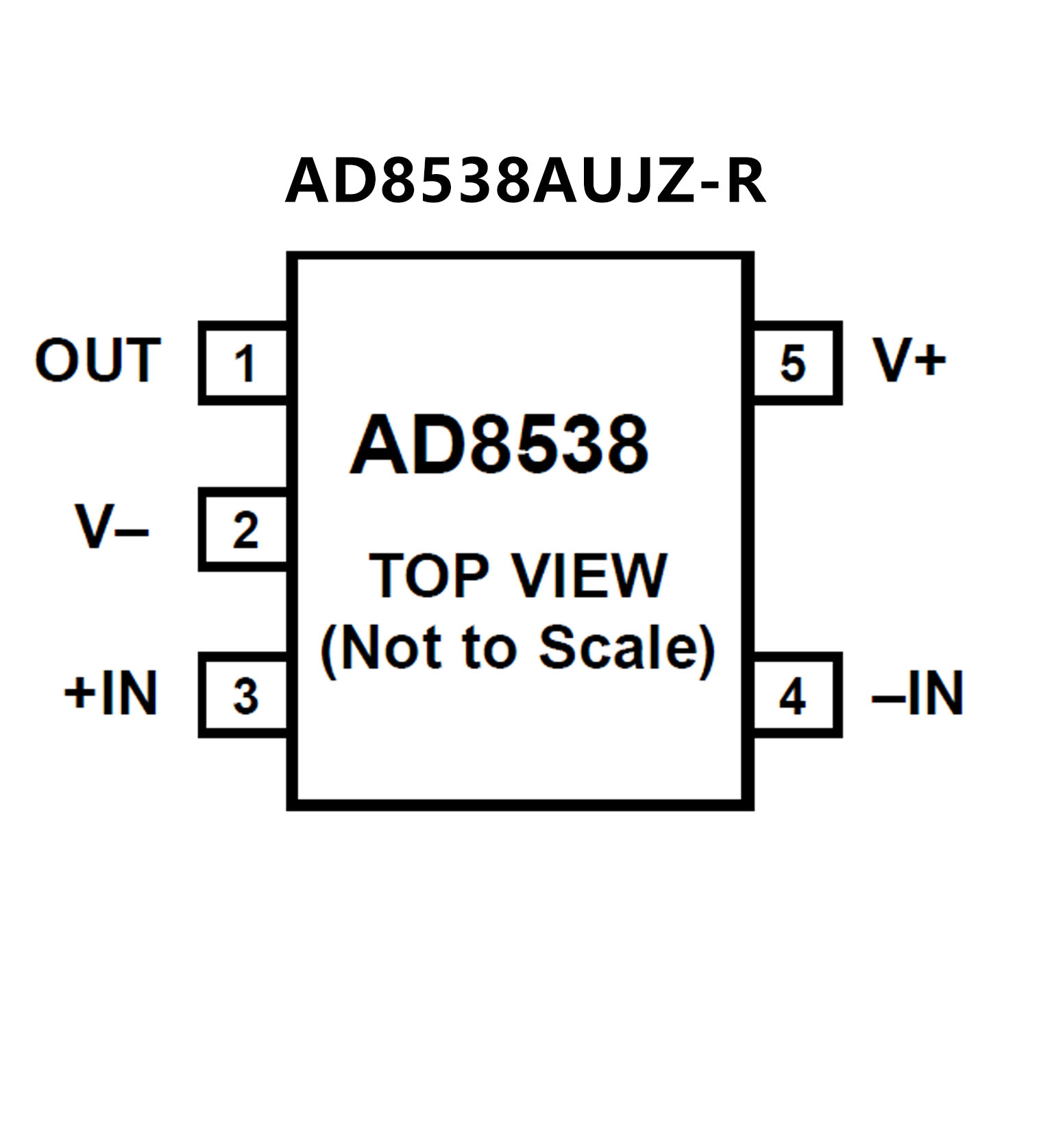

PIN CONFIGUTION
