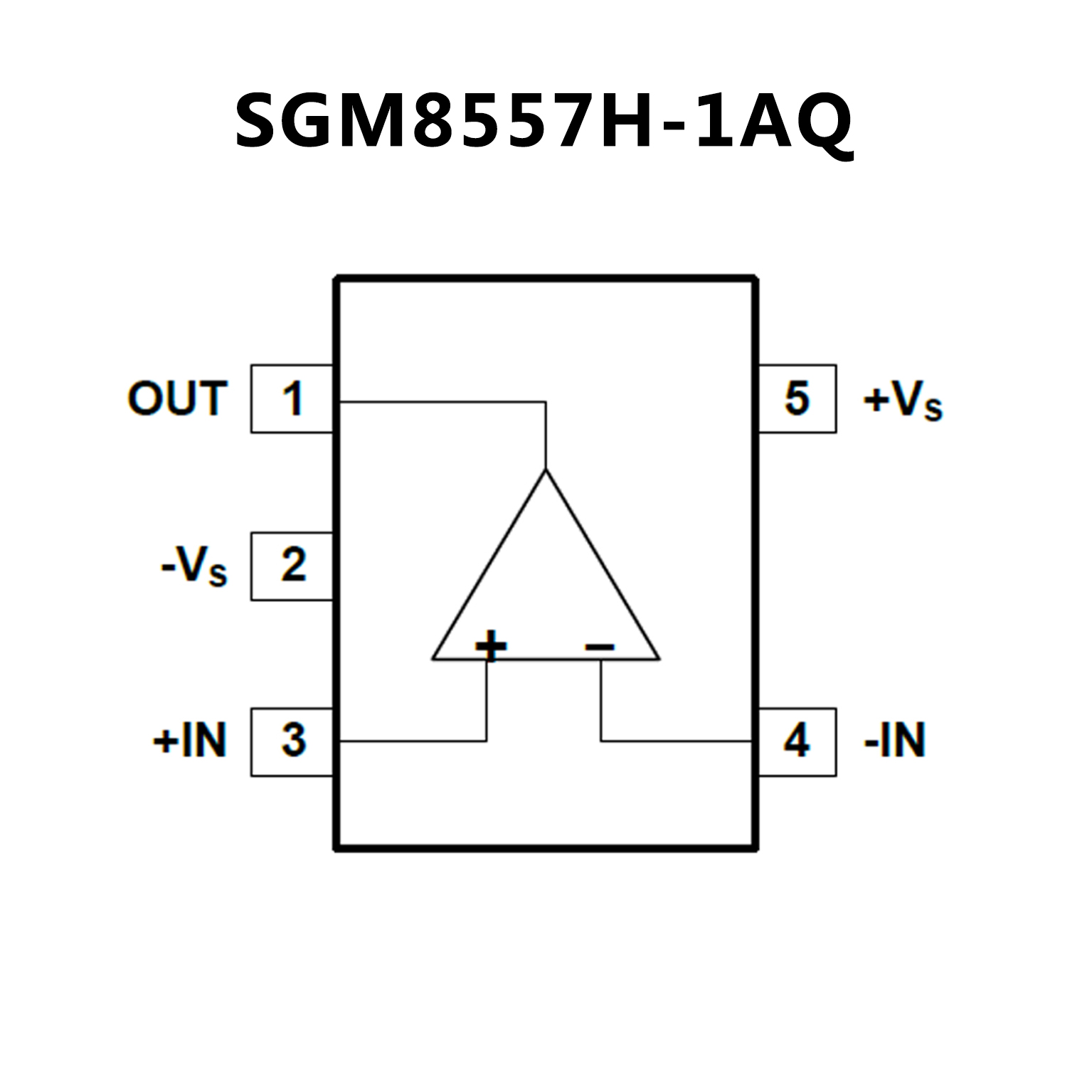

SGM8557H-1AQ.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Output Drive Capability: 230mA
? Low Input Offset Voltage: 15μV (MAX)
? Low Input Offset Voltage Drift: 30nV/℃ (TYP)
? Low Noise: 30nV/√Hz at 1kHz
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7.5V/μs
? High Open-Loop Gain (RL = 2kΩ): 144dB
? Power Supply Rejection Ratio: 120dB
? Over-Temperature Protection
? No Phase Reversal for Overdriven Inputs
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Current: 1.15mA (TYP)
? Available in a Green SOT-23-5 Package

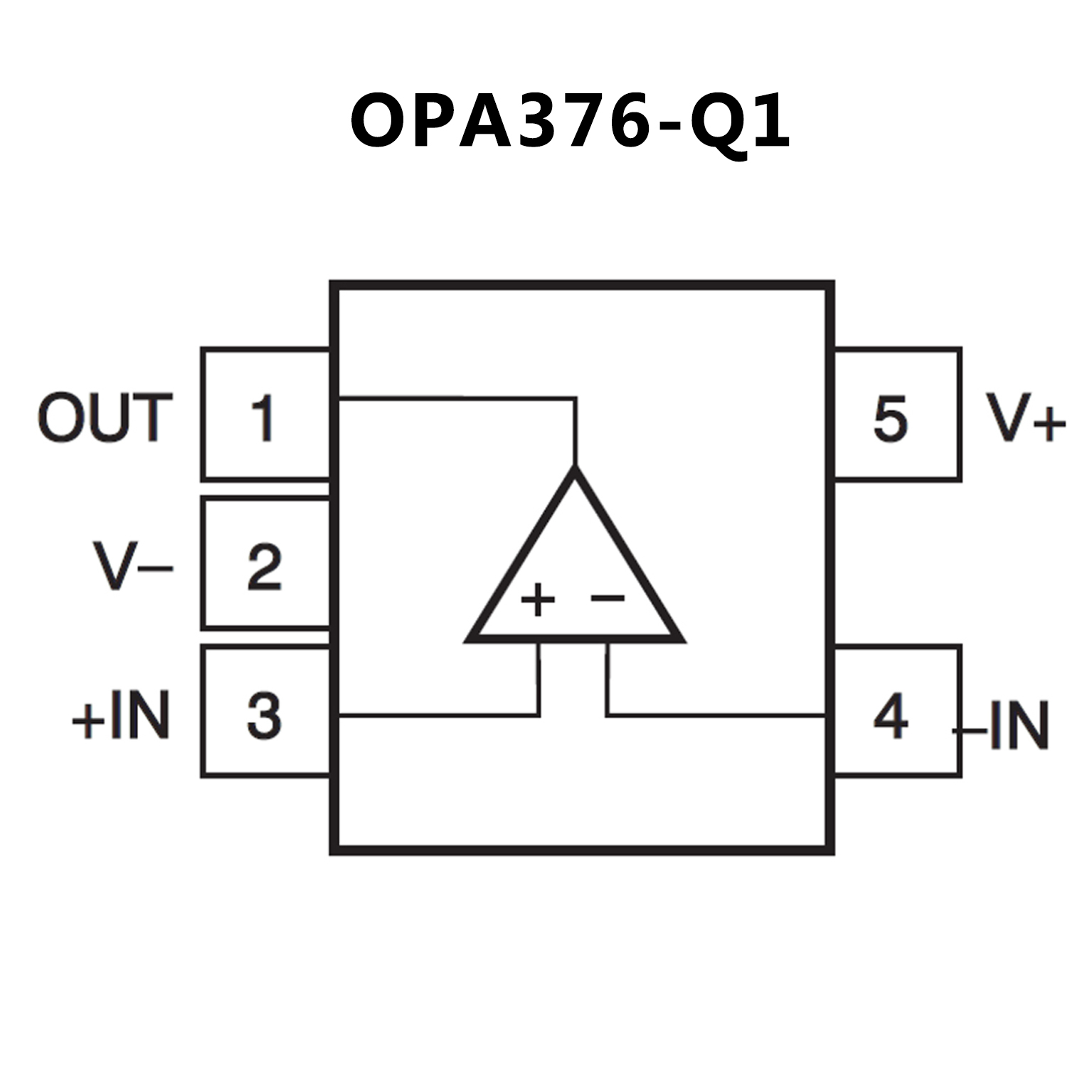

? AEC-Q100 qualified for automotive applications:
Temperature grade 1: –40°C to +125°C, TA
? Functional-Safety Capable
Documentation available to aid functional
safety system design (OPA376-Q1 and OPA2376-Q1)
? Low noise: 7.5 nV/√Hz at 1 kHz
? 0.1-Hz to 10-Hz noise: 0.8 μVPP
? Quiescent current: 760 μA (typical)
? Low offset voltage: 5 μV (typical)
? Gain bandwidth product: 5.5 MHz
? Rail-to-rail input and output
? Single-supply operation
? Supply voltage: 2.2 V to 5.5 V
? Space-saving packages:
SC70, SOT-23, VSSOP, TSSOP
