SGM8558-2.pdf? 230mA Output Drive Capability
? Low Input Offset Voltage: 15μV (MAX)
? Low Noise: 8nV/ Hz at 1kHz
? 230mA Current Limitation
? Over-Temperature Protection
? Supply Voltage Range: 2.8V to 5.5V
? Supply Current:
0.86mA/Amplifier (TYP)
0.2μA (TYP)
Shutdown Current for SGM8558-3
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 8V/μs
? Voltage Gain (RL = 2kΩ): 139dB
? Power Supply Rejection Ratio: 130dB
? No Phase Reversal for Overdriven Inputs
? Unity-Gain Stable for Capacitive Loads to 780pF
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8558-1 Available in Green SOIC-8
and
SOT-23-5 Packages

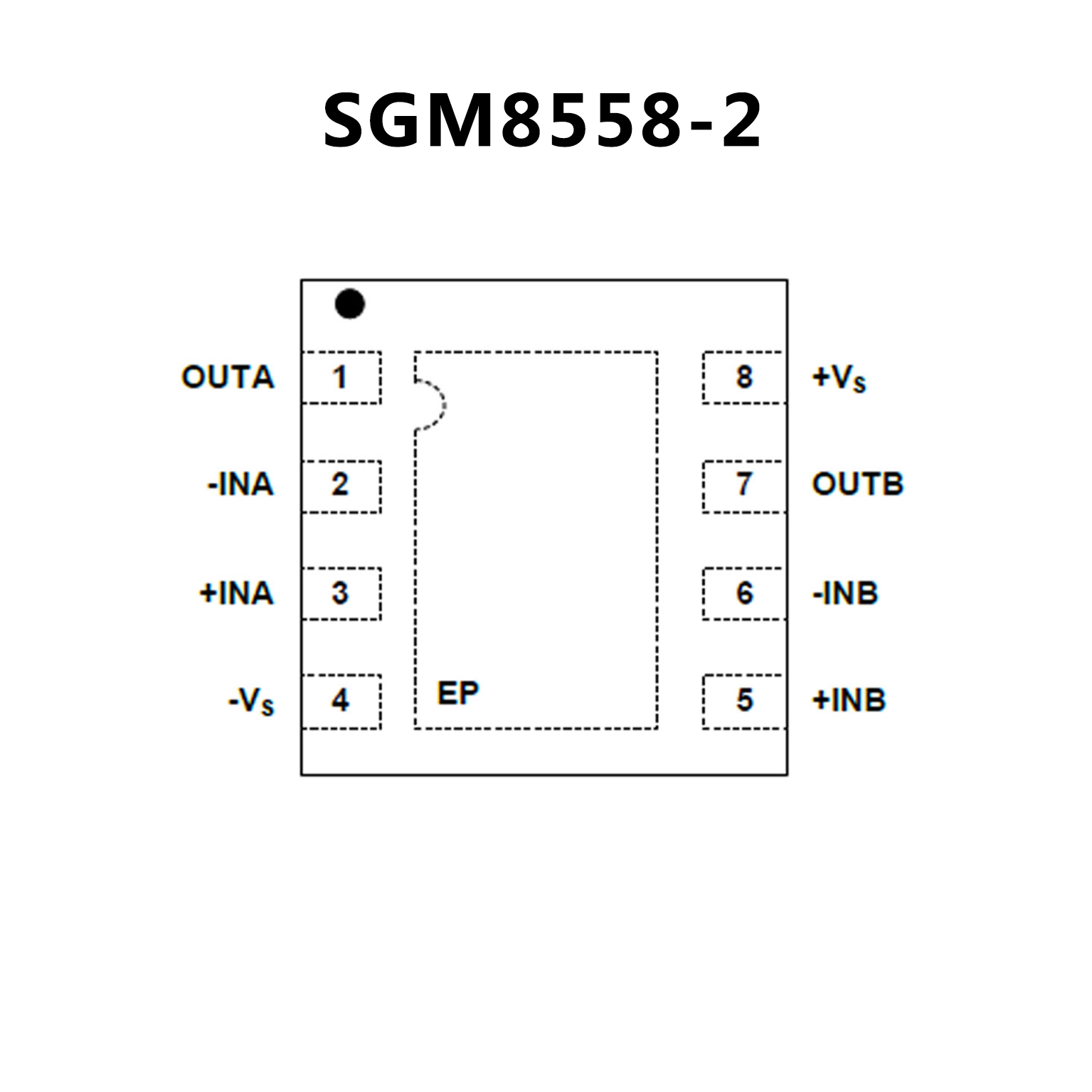

SGM8558-2 Available in Green TDFN-3×3-8L
and SOIC-8 Packages
SGM8558-3 Available in a Green SOT-23-6 Package
SGM8558-4 Available in a Green SOIC-14 Package

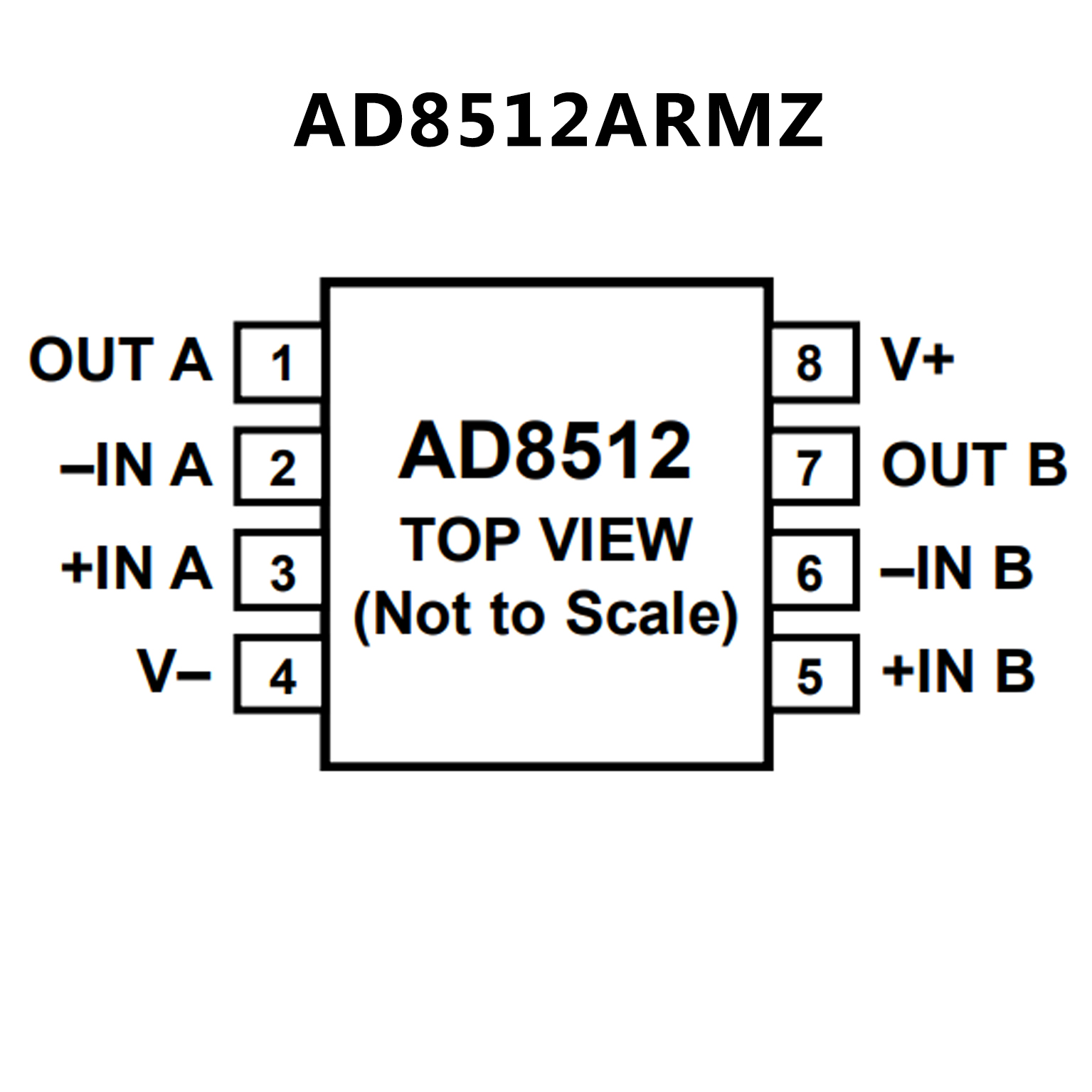

? Fast settling time: 500 ns to 0.1%
? Low offset voltage: 400 μV maximum
? Low TCVOS: 1 μV/°C typical
? Low input bias current: 25 pA typical at VS = ±15 V
? Dual-supply operation: ±5 V to ±15 V
? Low noise: 8 nV/√Hz typical at f = 1 kHz
? Low distortion: 0.0005%
No phase reversal
? Unity-gain stable
