Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier, SGM8582 Replace TLV2333IDGKR.
SGM8582
SGM8582.pdf
SGM8582.pdfFEATURES
? Low Offset Voltage: 100μV (MAX)
? Rail-to-Rail Input and Output Swings
? 2.5V to 5.5V Single-Supply Operation
? Voltage Gain: 145dB (TYP) at 5V
? PSRR: 125dB (TYP)
? CMRR: 95dB (TYP)
? Ultra Low Input Bias Current: 15pA
? Low Supply Current: 430μA/Amplifier
? Overload Recovery Time: 70μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

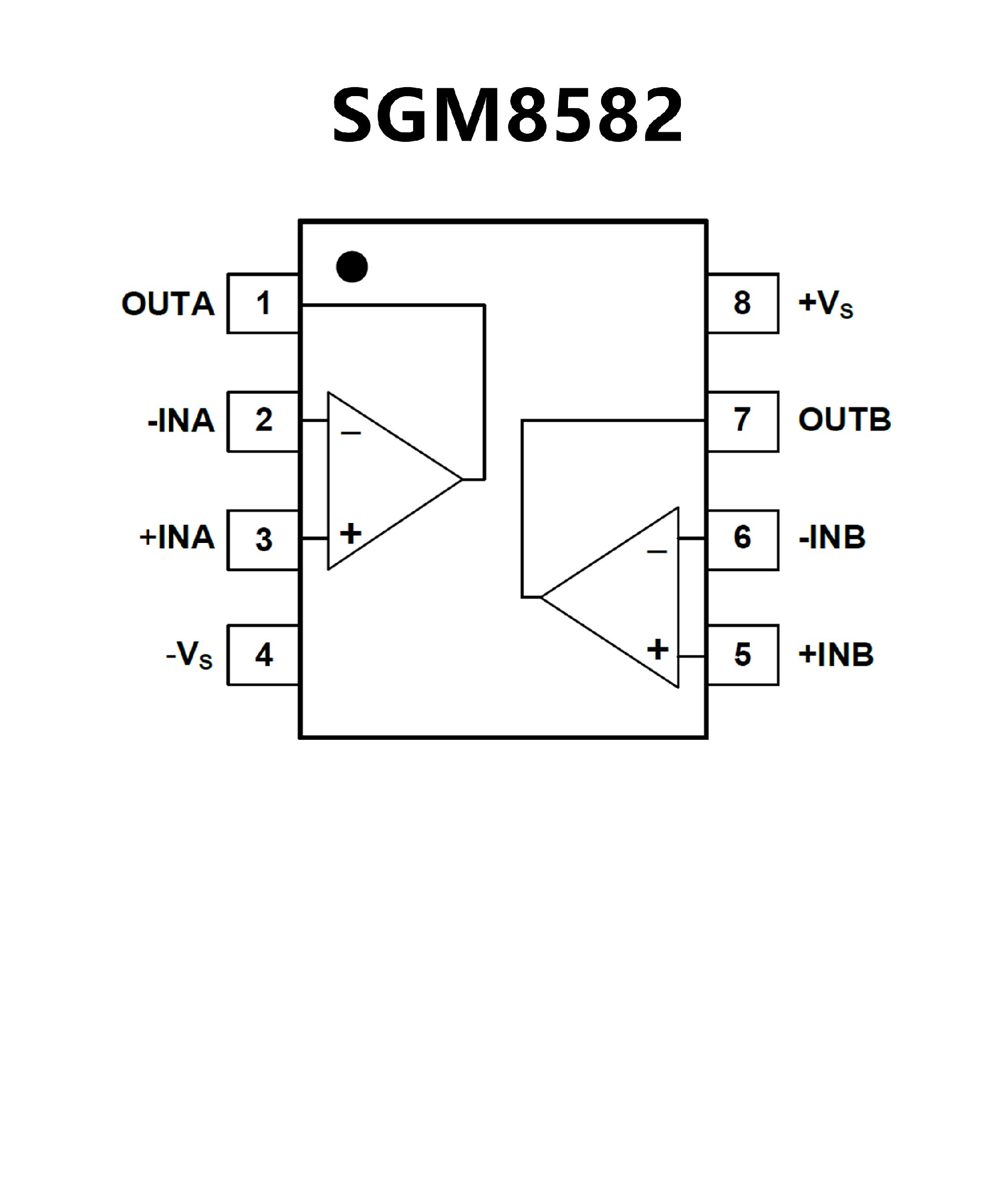

PIN CONFIGUTION
優勢替代
FEATURES
? Unmatched Price Performance
? Low Offset Voltage: 2 μV
? Zero Drift: 0.02 μV/°C
? Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
? Quiescent Current: 17 μA
? Supply Voltage: 1.8 V to 5.5 V
Rail-to-Rail Input/Output
? Internal EMI Filtering
? microSize Packages: SOT23, SC70

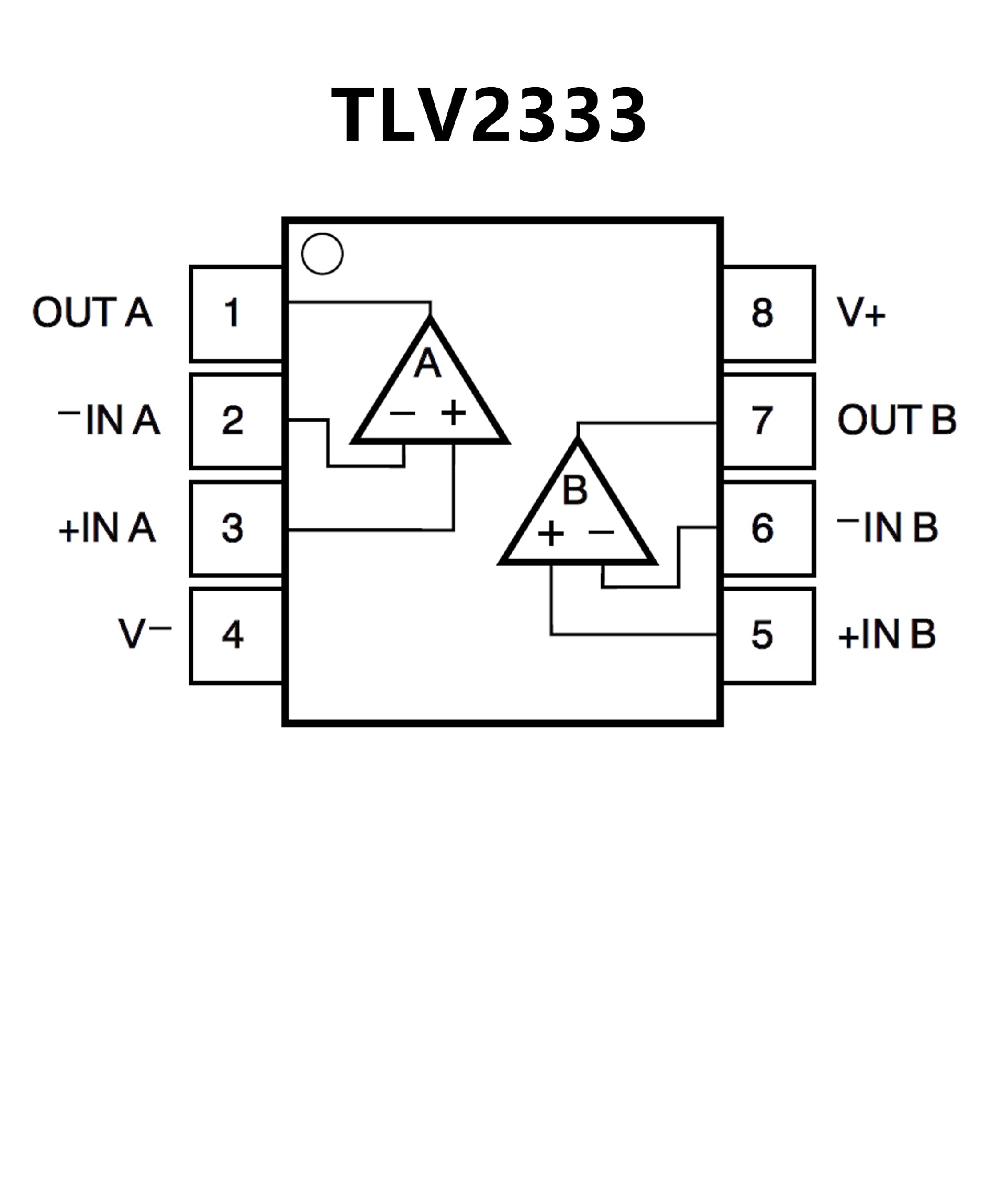

PIN CONFIGUTION
