High Precision Operational Amplifier, Replace LMV844
SGM8594
SGM8594.pdf
SGM8594.pdfFEATURES
? Low Offset Voltage: 150μV (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 135dB (TYP) at +5V
? PSRR: 115dB (TYP)
? EMIRR at 1.8GHz: 118dB
? CMRR: 92dB (TYP)
? Low Input Bias Current: 60pA
? Low Supply Current: 430μA/Channel
? Overload Recovery Time: 30μs (at VS = +5V)
? No External Capacitors Required

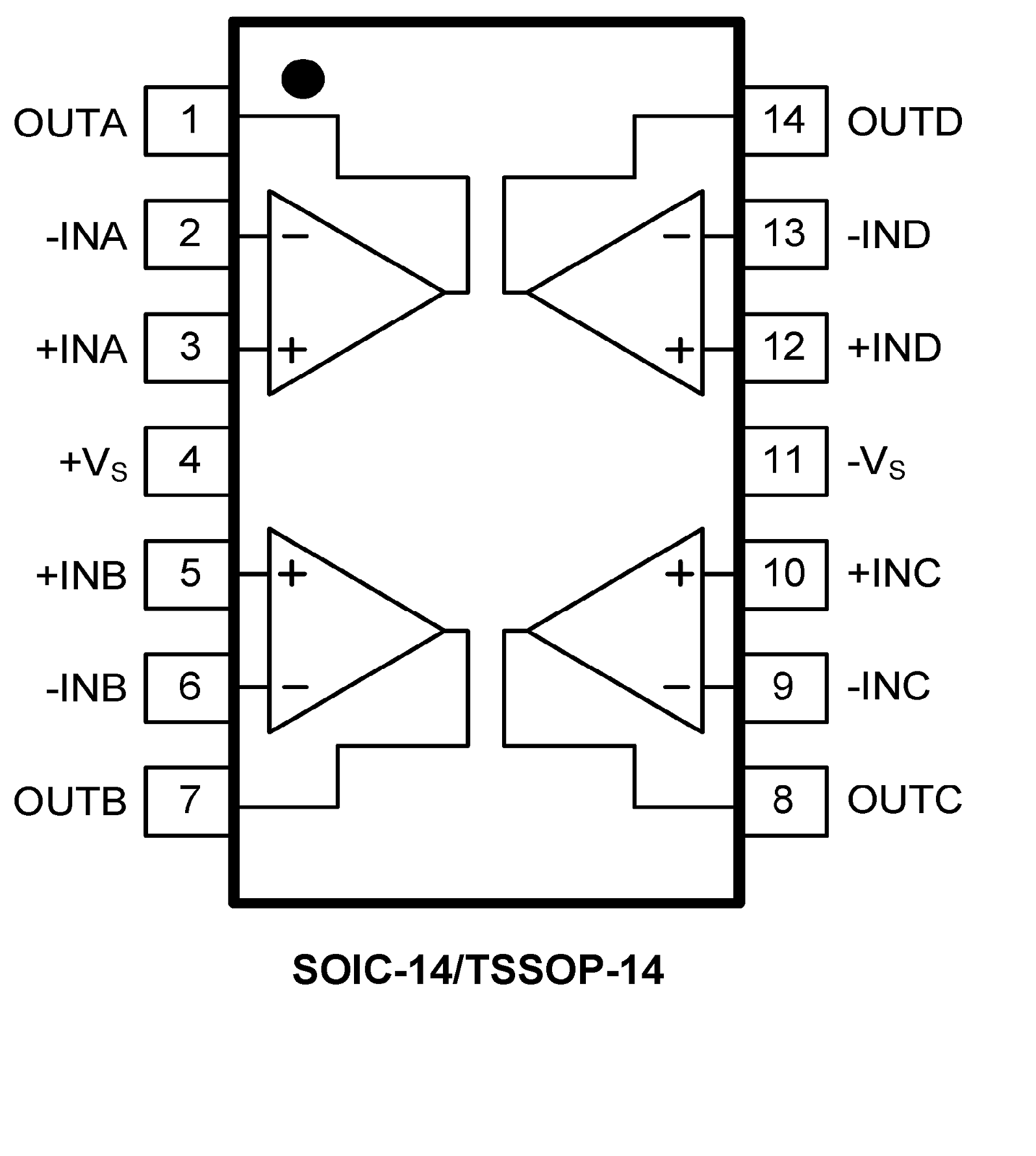

PIN CONFIGUTION
優勢替代
FEATURES
? Supply voltage range 2.7V to 12V
? Guaranteed at 3.3V, 5V and ±5V
? Low supply current 1mA per channel
? Unity gain bandwidth 4.5MHz
? Open loop gain 133dB
? Input offset voltage 500μV max
? Input bias current 0.3pA
? CMRR 112dB
? Input voltage noise 20nV/√Hz voltage
? Rail-to-Rail input, Rail-to-Rail output

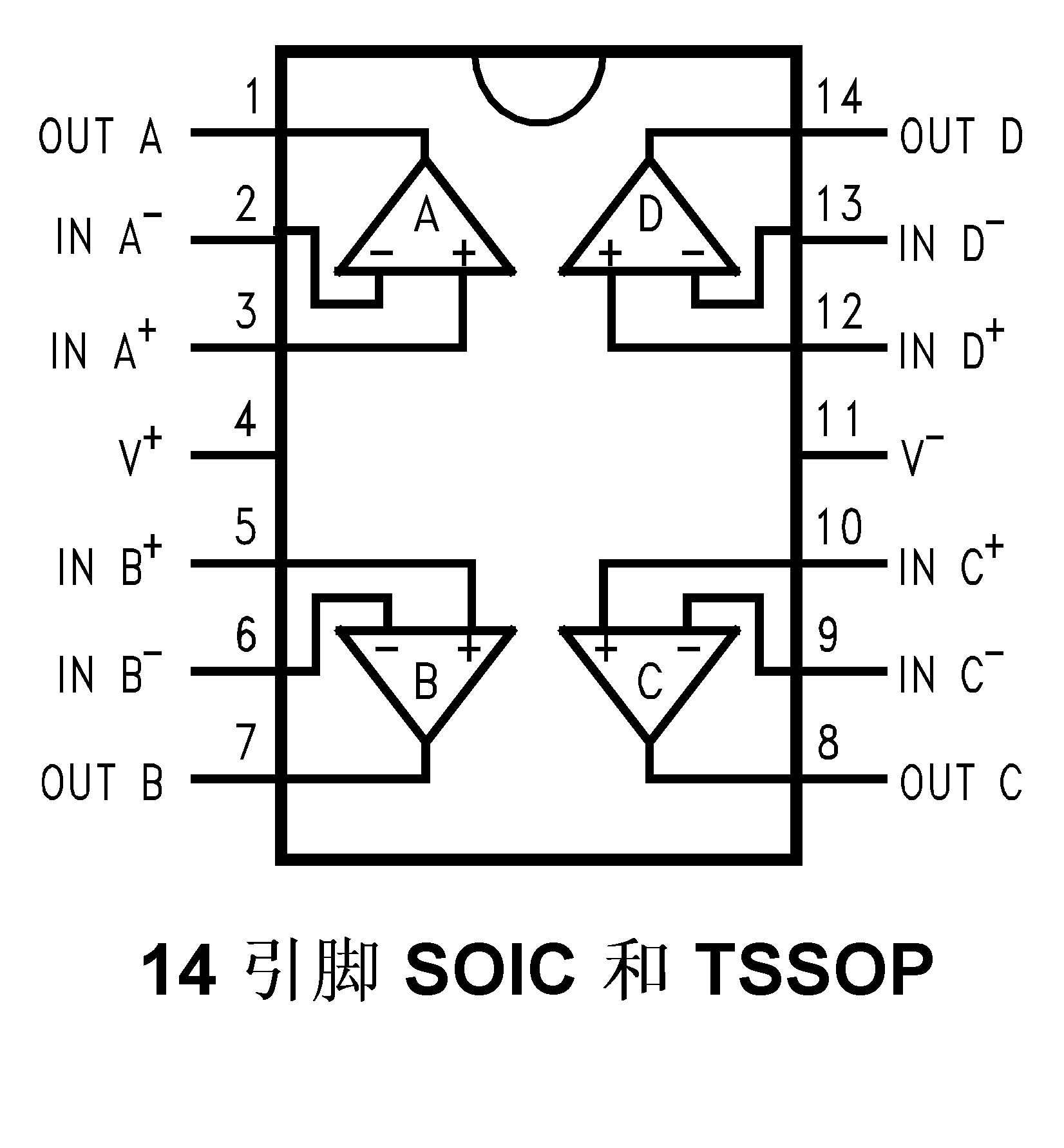

PIN CONFIGUTION
