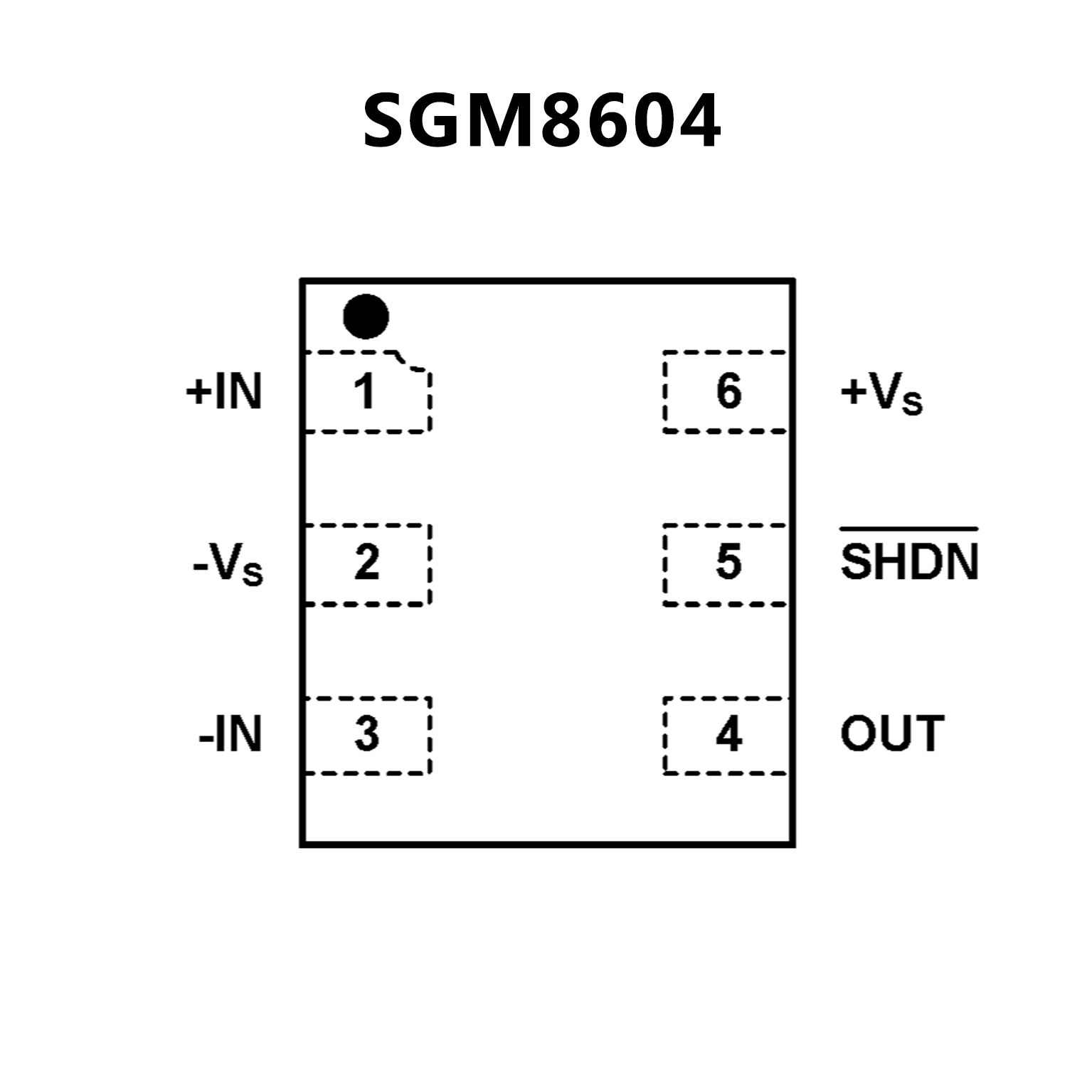

SGM8604-3.pdf? 232mA Output Drive Capability
? Rail-to-Rail Output
? Low Input Offset Voltage: 10μV (MAX)
? Low Input Offset Voltage Drift: 17nV/℃(TYP)
? Low Noise: 22nV/Hz at 1kHz
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Supply Current:
1.2mA/Amplifier (TYP)
0.1μA Shutdown Current for SGM8604-3/5 (TYP)
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? Power Supply Rejection Ratio: 127dB
? No Phase Reversal for Overdriven Inputs

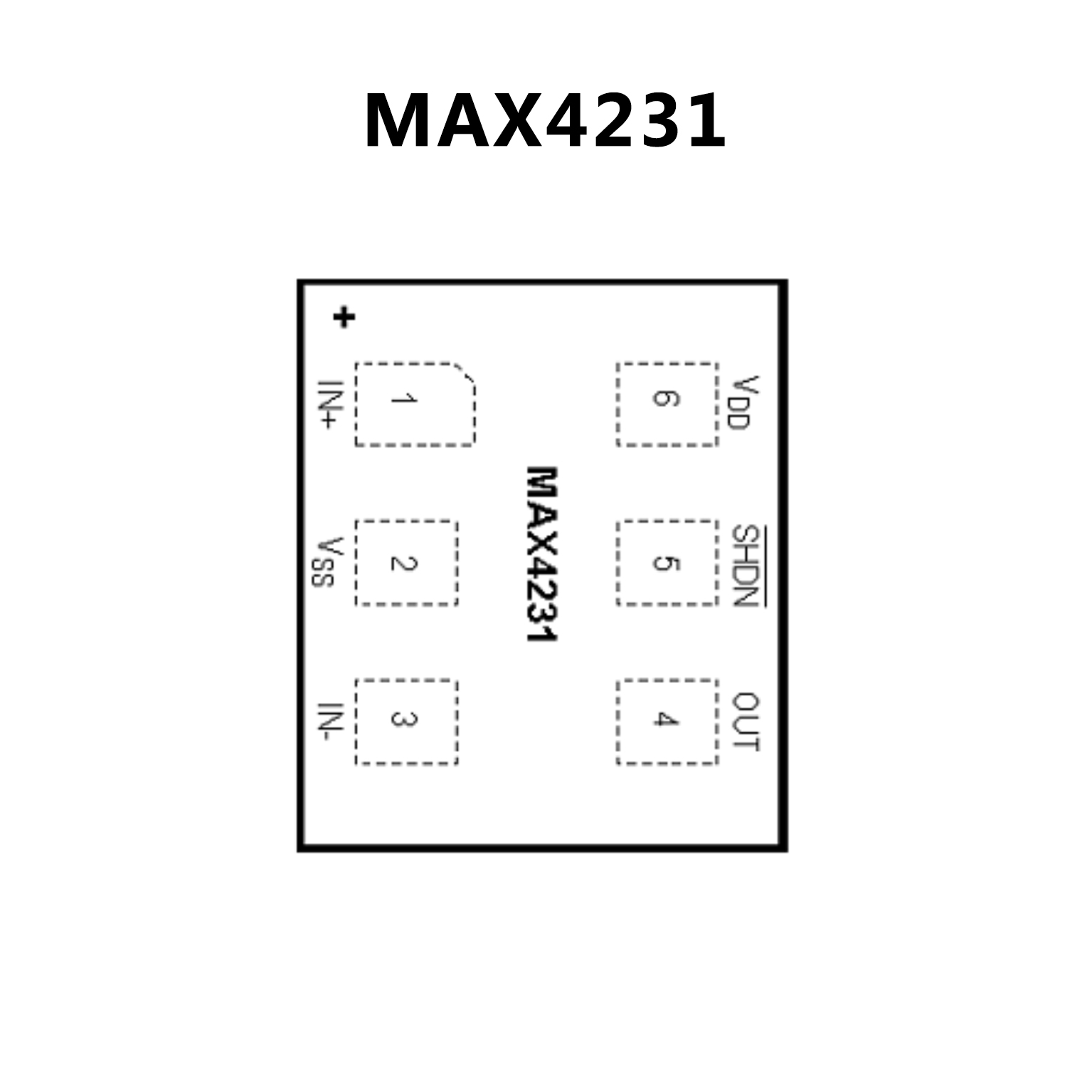

? Optimized for Headsets and High-Current Outputs
? 200mA Output Drive Capability
? 100dB Voltage Gain (RL = 100kΩ)
? 85dB Power-Supply Rejection Ratio
? No Phase Reversal for Overdriven Inputs
? Unity-Gain Stable for Capacitive Loads to 780pF
? Suitable for High-Bandwidth Applications
? 10MHz Gain-Bandwidth Product
? High Slew Rate: 10V/μs
? Extends the Battery Life of Portable Applications
? 1.1mA Supply Current per Amplifier
? Low-Power Shutdown Mode Reduces Supply Current
to < 1μA
