SGM8604.pdf? 232mA Output Drive Capability
? Rail-to-Rail Output
? Low Input Offset Voltage: 10μV (MAX)
? Low Input Offset Voltage Drift: 17nV/℃ (TYP)
? Low Noise: 22nV/ Hz at 1kHz
? Over-Temperature Protection
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Supply Current:
1.2mA/Amplifier (TYP)
0.1μA Shutdown Current for SGM8604-3/5 (TYP)
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? Voltage Gain (RL = 2kΩ): 145dB
? Power Supply Rejection Ratio: 127dB
? No Phase Reversal for Overdriven Inputs

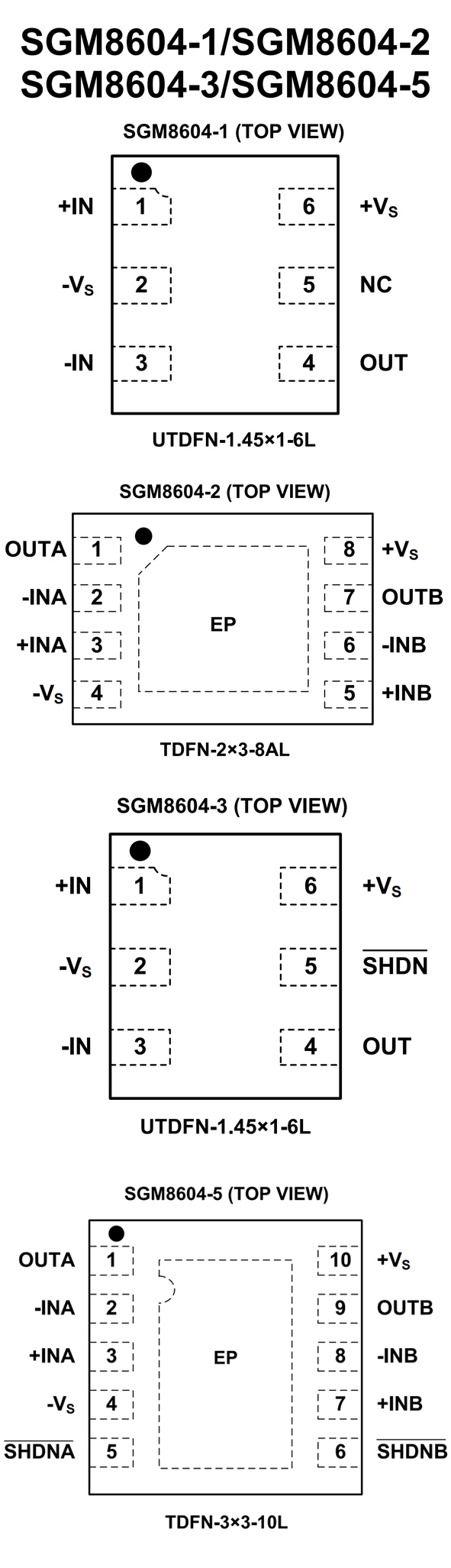

? Small Packaging:
SGM8604-1 Available in a Green UTDFN-1.45×1-6L
SGM8604-2 Available in a Green TDFN-2×3-8AL
SGM8604-3 Available in a Green UTDFN-1.45×1-6L
SGM8604-5 Available in a Green TDFN-3×3-10L
? Ultra-Low Offset Voltage
20μV (max) at +25°C (Grade A)
50μV (max) at +25°C (Grade B, 6-Pin SOT23)
? Ultra-Low Offset Voltage Drift
2μV/°C (max) (Grade A)
4.5μV/°C (max) (Grade B, 6-Pin SOT23)
5.5μV/°C (max) (6-Pin SOT23)
? Ultra-Low 1pA Input Bias Current
? High Open-Loop Voltage Gain: 110dB (min)
(RL = 100k?)
? Compatible with +3V and +5V Single-Supply
Power Systems
? Ground Sensing: Input Common-Mode Range
Includes Negative Rail

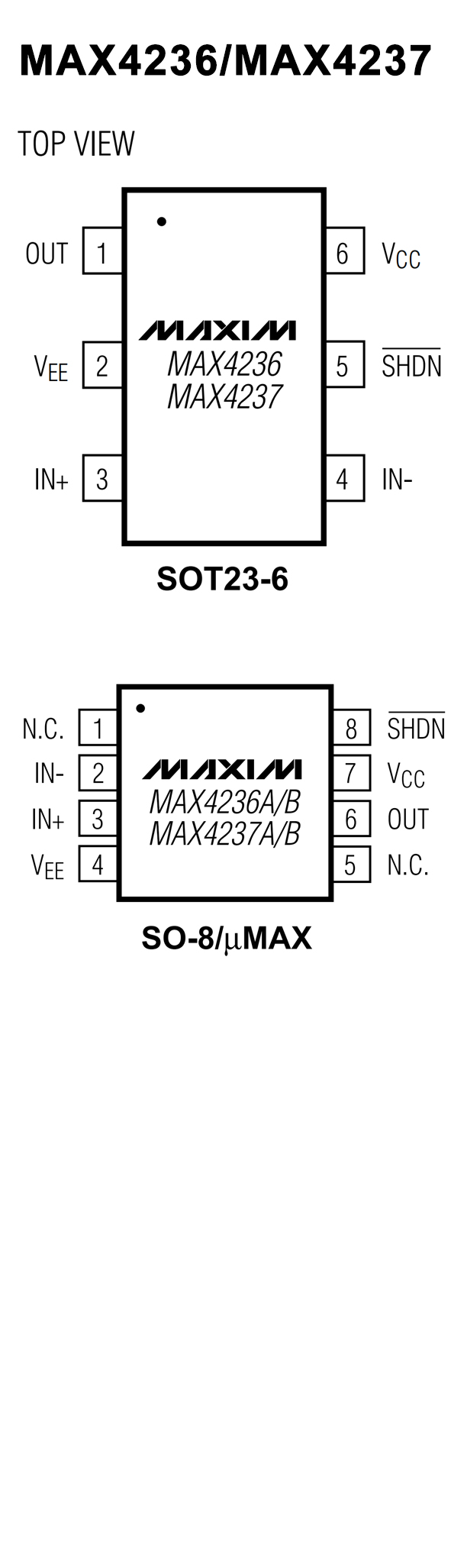

? Rail-to-Rail Output Swing into a 1k? Load
? 350μA Quiescent Current
? Gain-Bandwidth Product
1.7MHz (MAX4236, AV = 1V/V)
7.5MHz (MAX4237, AV = 5V/V)
? 200pF Capacitive Load Handling Capability
? Shutdown Mode: 0.1μA Quiescent Current,
Places Output in a High-Impedance State
? Available in Space-Saving SOT23 and μMAX
Packages
