SGM8621XN5.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3mV (MAX)
? High Gain-Bandwidth Product: 3MHz
? High Slew Rate: 1.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 2.3μs
? Low Noise: 17.5nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current:
SGM8621/3: 270μA (TYP)
SGM8622/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8623
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

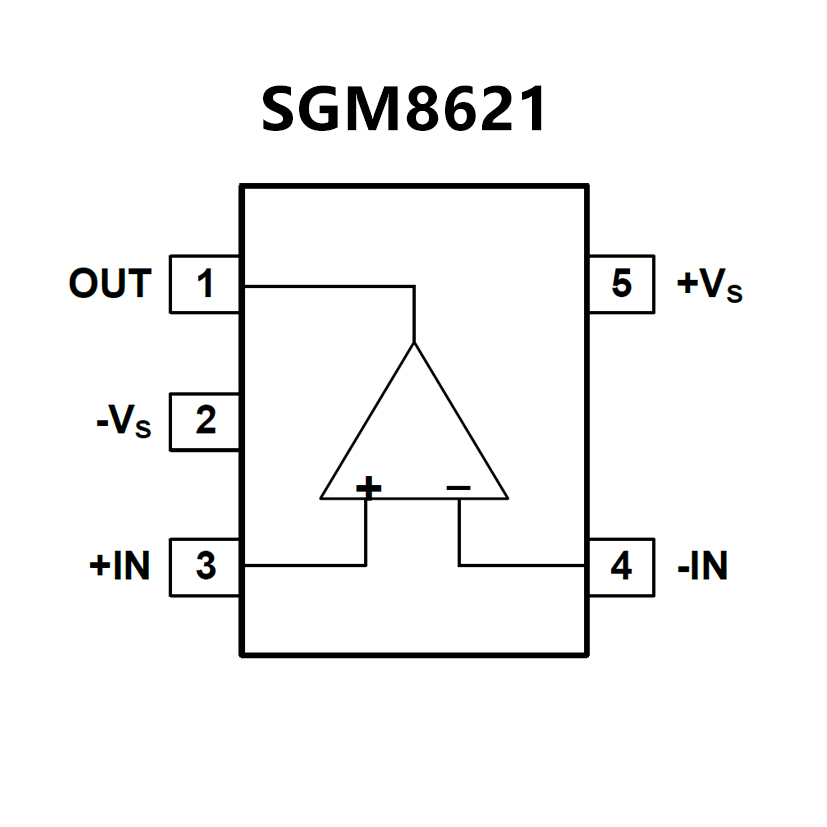

SGM8621 Available in Green SC70-5, SOT-23-5
and SOIC-8
SGM8622 Available in Green MSOP-8 and SOIC-8
SGM8623 Available in Green SOT-23-6 and SOIC-8
SGM8624 Available in Green TSSOP-14 and SOIC-14
? High slew rate: 15 V/μs
? Low quiescent current: 330 μA
? Rail-to-rail input and output
? Low input offset voltage: ±0.33 mV
? Unity-gain bandwidth: 5 MHz
? Low broadband noise: 15 nV/√Hz
? Low input bias current: 2 pA
? Unity-gain stable
? Internal RFI and EMI filter
? Scalable family of CMOS op amps for low-cost
applications
? Operational at supply voltages as low as 1.8 V
? Extended temperature range: –40°C to 125°C
